PENCOM FIT proudly offers a range of press-in hardware installation machines as well as hand tools, suitable for sheet metal assemblies and fabrications, and soft ductile materials such as plastics and printed circuit boards.
The SE Series machines are designed for precision and efficiency, offering streamlined operation for high-performance fastening applications. These models emphasize ease of use, making them ideal for industries requiring consistent, reliable installation with minimal setup.

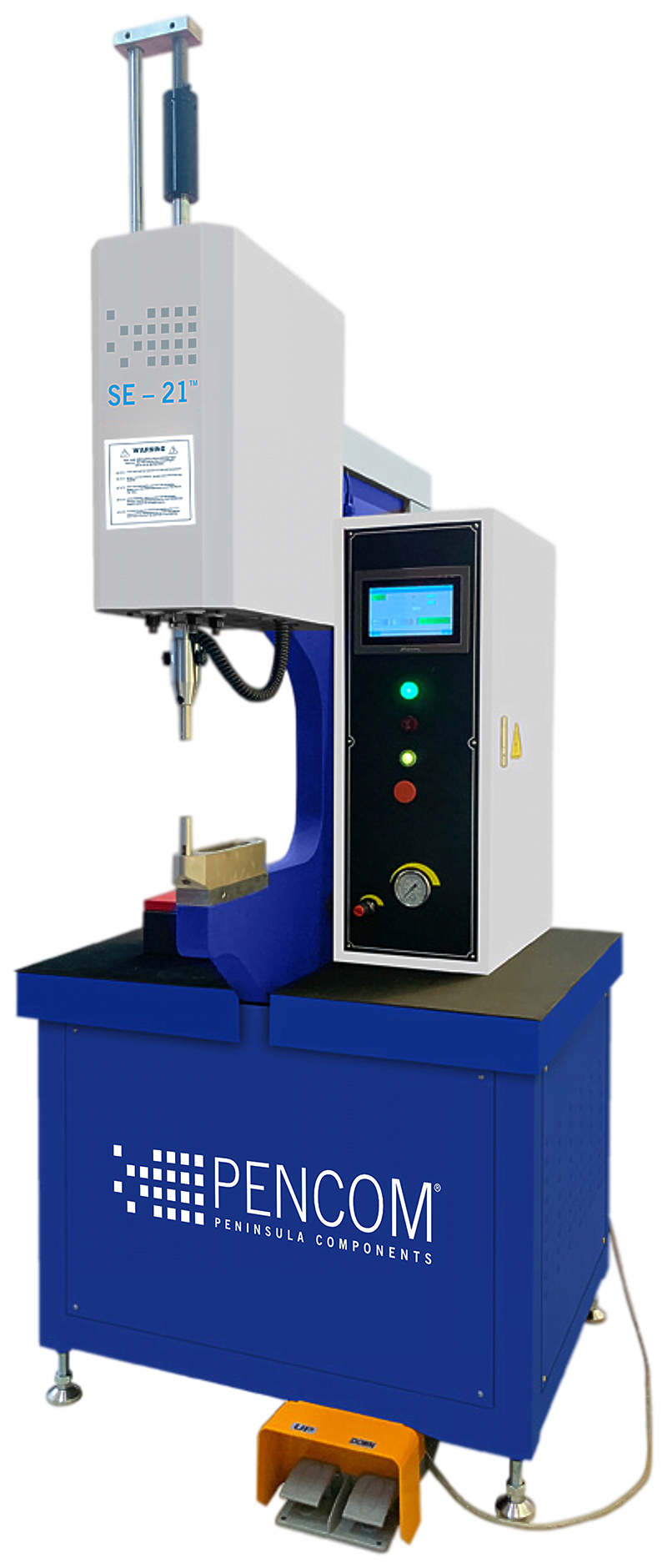

SE – 21™
SE – 21™
The SE-21™ is the foundational model in the SE series, providing a straightforward solution for fastener insertion needs. Like all models in this range, this machine operates with 6 tons of force, has 18 inches (457mm) of throat depth, accommodates fasteners from 2-56 (M2) to 3/8-16 (M10), and is equipped with an operator safety system. Its simplicity and efficiency make it ideal for operations seeking a basic, reliable fastener insertion machine.

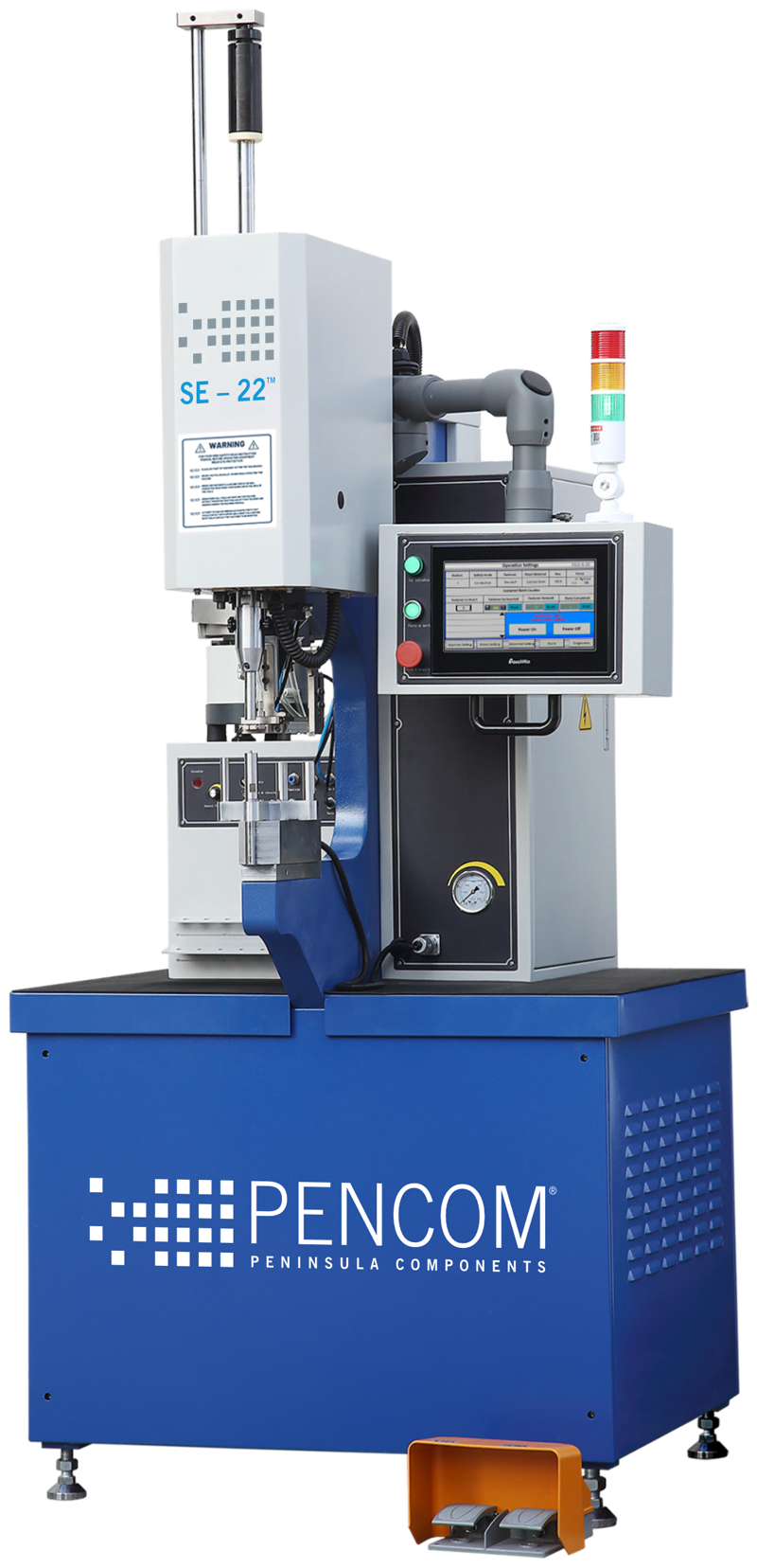

The SE-22™ is the pinnacle of the SE series. While retaining the uniform 6 tons of force, 18 inch (457mm) throat depth, 2-56 (M2) to 3/8-16 (M10) fastener sizes, and operator safety system, it boasts advanced elements, such as the Automatic Turret Insertion System, and a 10-inch touch screen capable of storing up to 200 customized programs and fastener databases. This machine is designed for businesses requiring top-tier fastener insertion capabilities.

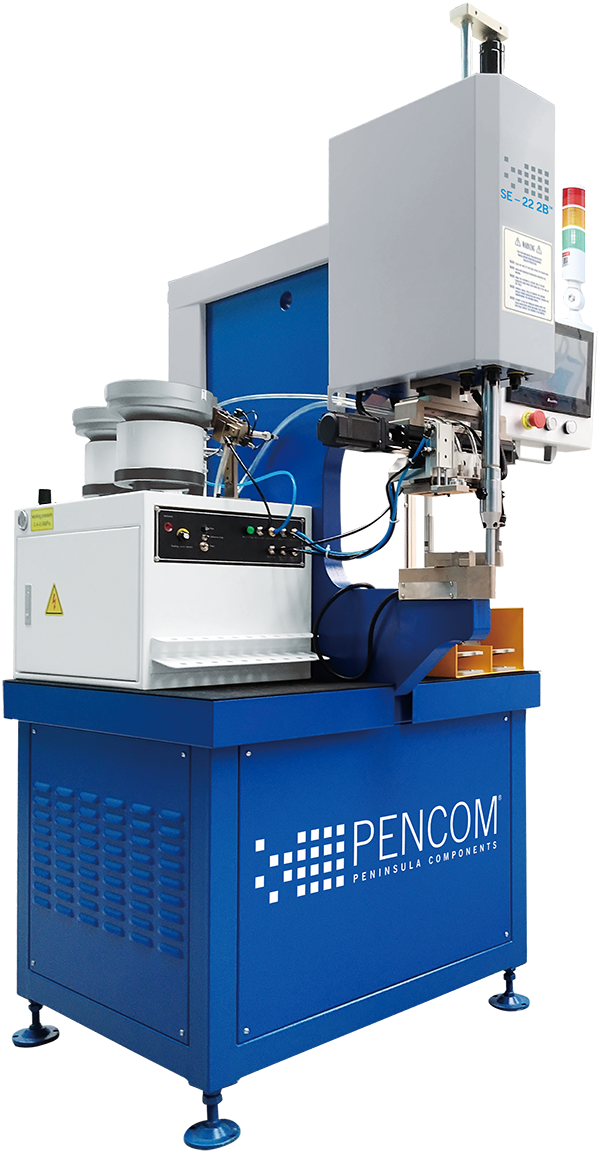

The SE-22 2B™ builds on the SE-22™, delivering 6 tons of force, 18” (457mm) throat depth, and support for 2-56 (M2) to 3/8-16 (M10) fasteners, with factory upgrades for enhanced performance. It features ATIS and a 10” touchscreen with storage for 200 custom programs. The MAS system boosts efficiency by auto-feeding and installing nuts, studs, and standoffs. Built for high-end automation, the SE-22 2B™ delivers precision, speed, and safety.
The STF-22™ combines speed, flexibility, and safety in one system. Featuring 4-station automatic upper and lower tool changers, ergonomic dual-direction controls, and a modular auto feed system for nuts, studs, and standoffs, it delivers fastener insertion every 2.5 seconds with tool changes in just 3. Designed for efficiency, safety, and versatility across multiple fastener types.
The TTF Series machines are built for more advanced applications, featuring enhanced capabilities for handling a wider range of fastener types and materials. With greater flexibility and customization options, the TTF models cater to specialized production needs, providing versatility for complex fastening solutions.

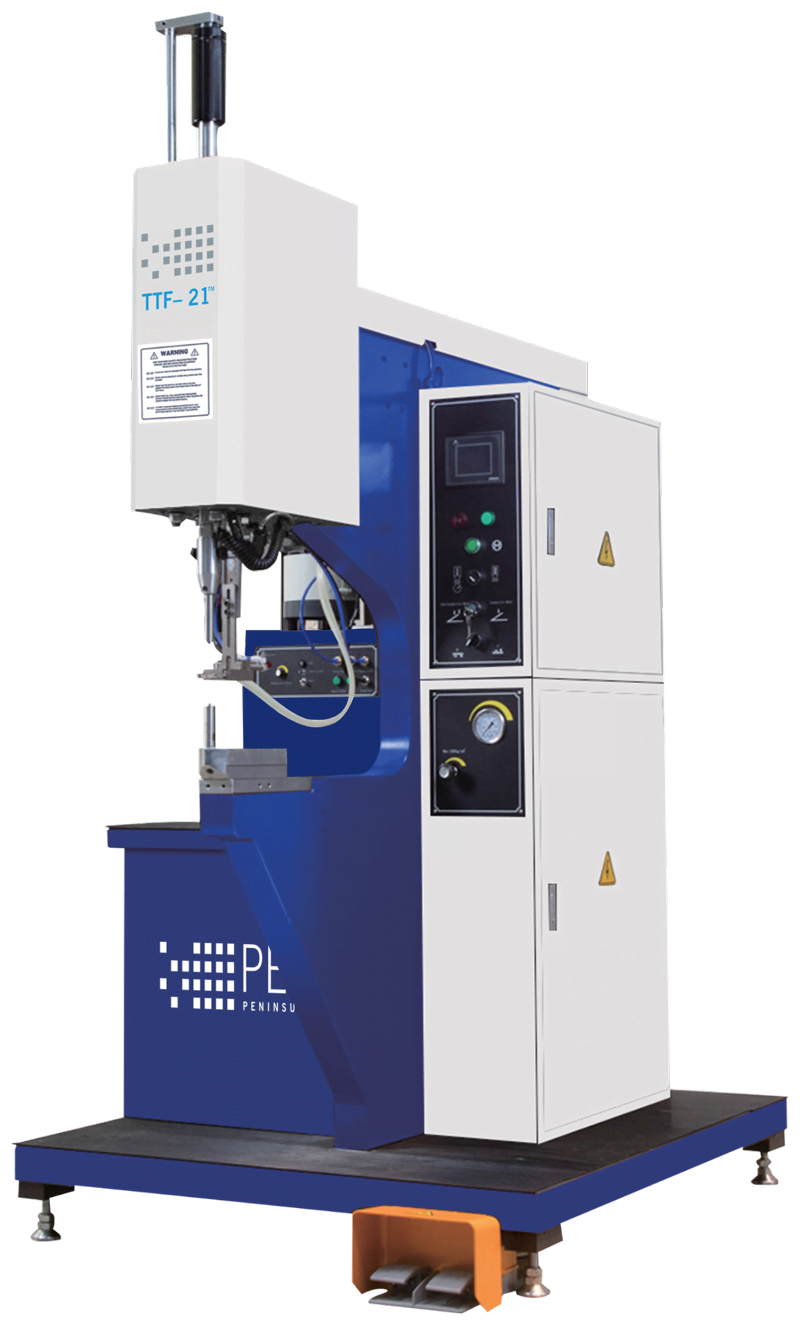

TTF – 21™
TTF – 21™
PENCOM's TTF series operates with 10 tons of force and features a 25 inch (635mm) throat depth. The TTF-22™ offers precision fastener insertion with its Positive Stop System and Batch Counter/Stroke Adjustment, catering to sizes from 2-56 (M2) to 1/2-13 (M12). Its energy-efficient dual pump system and comprehensive Control Panel optimize operations, while a dedicated safety system ensures secure usage. Additional options further expand its adaptability.

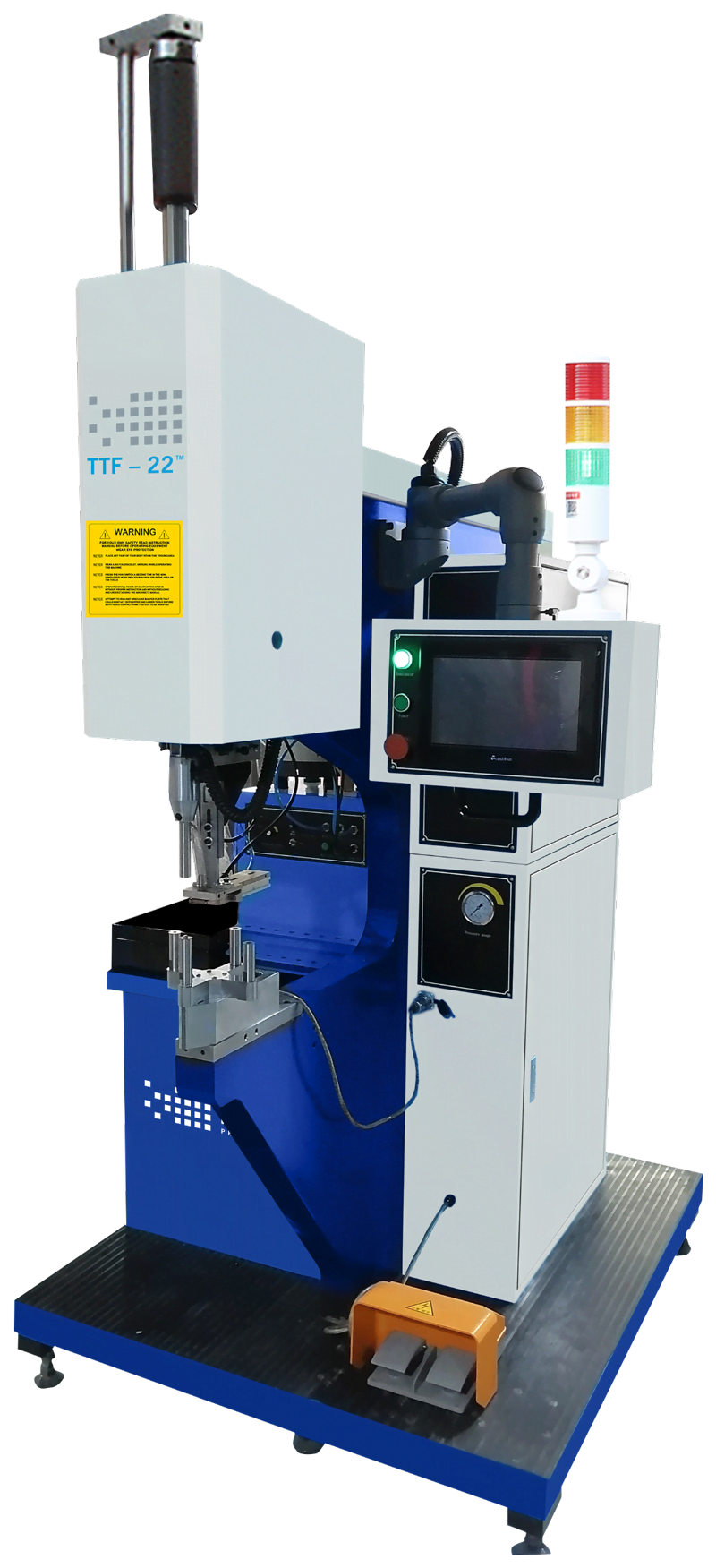

The top of the series, PENCOMs TTF-22™ boasts 10 tons of force and a 25 inch (635mm) throat depth. Accepting fasteners from 2-56 (M2) to 1/2-13 (M12), this machine is also furnished a 10-inch touch screen control panel, energy-saving dual pump system for enhanced stroke speed, and Automatic Turret Insertion System. The TTF-22™ efficiently stores up to 200 tailored programs and fastener databases, making it optimal for rigorous fastener insertion demands.

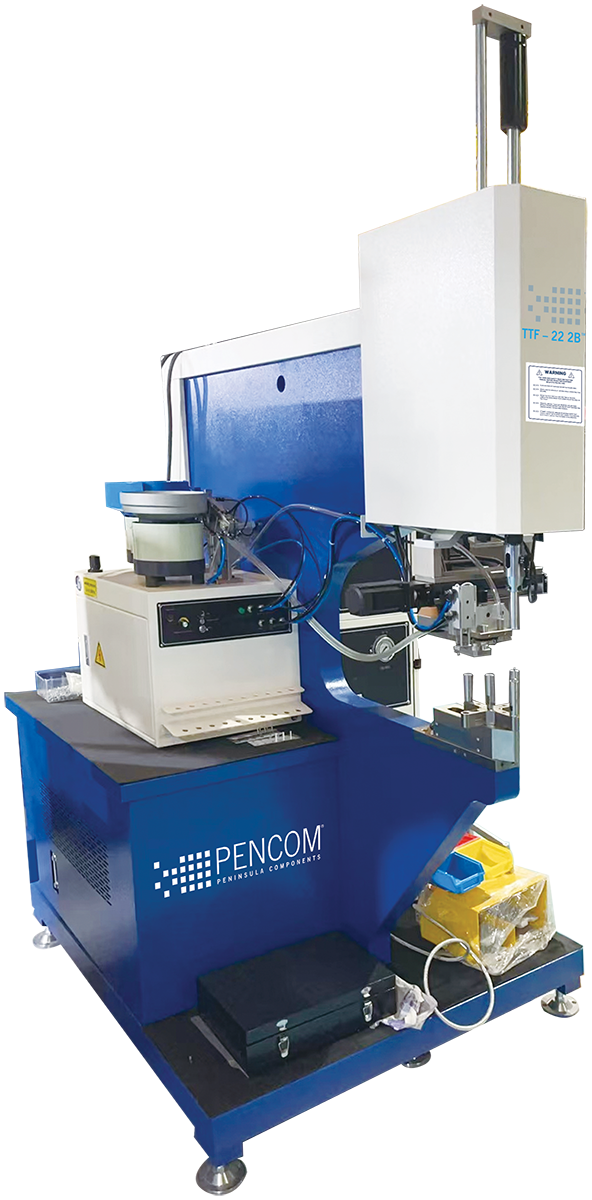

The TTF-22 2B™ builds on the TTF-22™, delivering 10 tons of force and a 25” (635mm) throat depth. It supports 2-56 (M2) to 1/2-13 (M12) fasteners and includes ABFT for improved clearance and feed. A dual-bowl MAS automates nut, stud, and standoff installation. Features include a 10” touchscreen, dual pump for faster strokes, and ATIS. With storage for 200 custom programs, the TTF-22 2B™ is built for high-volume, precision insertion.
