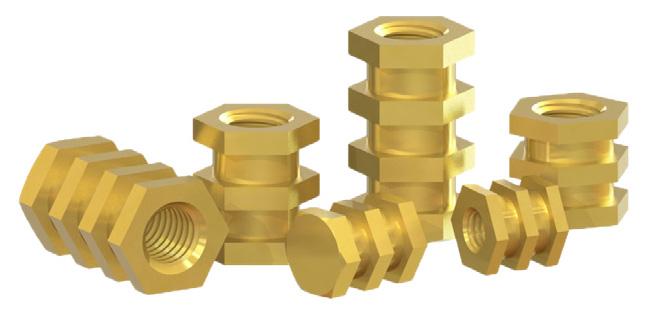

HXZ Molded Hex Inserts
HXZ Molded Hex Inserts

HXZ Molded Hex Inserts

Molded Insert Features

  • Hex shaped inserts provide high torque-out resistance when molded in soft thermoplastic materials.
  • An excellent insert for rotational molding applications. Available with blind or thru-hole threads.
  • Inserts with thru-hole threads are symmetrical and maybe used from either end.
  • Standard insert material is brass. Other insert materials available by request.

3D files available upon request.
General - Blind
Insert Thread Insert Thread Code L Insert Length Insert Length Code D Width Across Flats T Min. Thread Depth Number of Vanes 1
4-40 440 .315 315 .236 .200 3
6-32 632 .375 375 .250 .219 3
8-32 832 .394 394 .315 .250 3
.394 394 .208 3
10-24 1024 .591 591 .315 .417 4
.748 748 .583 5
.394 394 .250 3
10-32 1032 .591 591 .315 .438 4
.748 748 .563 5
1/4-20 2520 .591 591 .394 .375 4
5/16-18 3118 .630 630 .472 .390 4
3/8-16 3716 .748 748 .551 .438 5
.984 984 .688 5
  1. Vanes may not be of equal width or spacing.
  2. Custom sizes available by request.
General - Thru
Insert Thread Insert Thread Code L Insert Length Insert Length Code D Width Across Flats Number of Vanes
4-40 440 .236 236 .236 2
6-32 632 .250 250 .250 2
8-32 832 .315 315 .315 3
10-24 1024 .315 315 .315 3
.394 394 3
10-32 1032 .315 315 .315 3
.394 394 3
1/4-20 2520 .394 394 .394 3
.472 472 3
5/16-18 3118 .472 472 .472 3
.630 630 4
3/8-16 3716 .551 551 .551 3
.748 748 4

(1) Custom sizes available by request.

General - Blind
Insert Thread Insert Thread Code L Insert Length Insert Length Code D Width Across Flats T Min. Thread Depth Number of Vanes 1
M3 x 0.5 M3 8.00 8.00 6.00 5.00 3
M4 x 0.7 M4 10.00 10.00 8.00 6.30 3
10.00 10.00 6.40 3
M5 x 0.8 M5 15.00 15.00 8.00 11.00 4
19.00 19.00 12.80 5
M6 x 1.0 M6 15.00 15.00 10.00 11.00 4
M8 x 1.25 M8 16.00 16.00 12.00 13.75 4
M10 x 1.5 M10 19.00 19.00 14.00 15.00 5
25.00 25.00 18.00 5
  1. Vanes may not be of equal width or spacing.
  2. Custom sizes available by request.
General - Thru
Insert Thread Insert Thread Code L Insert Length Insert Length Code D Width Across Flats Number of Vanes
M3 x 0.5 M3 6.00 6.00 6.00 2
M4 x 0.7 M4 8.00 8.00 8.00 3
M5 x 0.8 M5 8.00 8.00 8.00 3
10.00 10.00 3
M6 x 1.0 M6 10.00 10.00 10.00 3
12.00 12.00 3
M8 x 1.25 M8 12.00 12.00 12.00 3
16.00 16.00 4
M10 x 1.5 M10 14.00 14.00 14.00 3
19.00 19.00 4

(1) Custom sizes available by request.
