PFZ Press-in Fin Inserts
PFZ Press-in Fin Inserts

PFZ Press-in Fin Inserts

Press-in Fin Insert Features

  • Simple press–in installation for most thermoplastics.
  • High pull–out resistance.
  • Self–aligning design.
  • Available in a wide variety of thread sizes stud lengths.
General

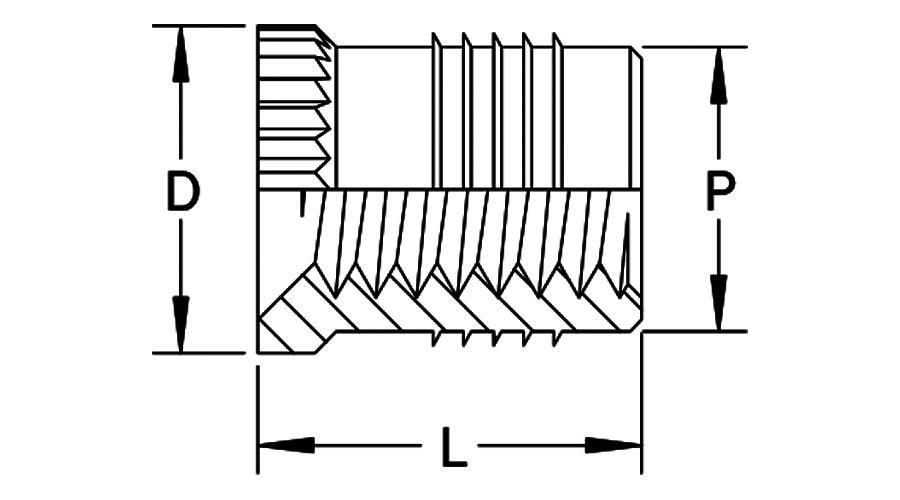

Insert Thread Insert Thread Code L Insert Length Insert Length Code Boss A Head Thickness C Head Diameter D Insert Diameter P Pilot Diameter Number of Fins
B Hole Dia. +.004 -.000 W Wall Thickness Min.
2-56 256 .157 157 .126 .063 .018 .189 .147 .123 2
4-40 440 .187 187 .157 .079 .023 .217 .178 .154 3
6-32 632 .250 250 .189 .094 .029 .250 .209 .185 4
8-32 832 .312 312 .220 .110 .035 .281 .240 .218 5
10-24 1024 .375 375 .252 .126 .042 .312 .274 .248 5
10-32 1032 .375 375 .252 .126 .042 .312 .274 .248 5
1/4-20 2520 .500 500 .315 .157 .052 .375 .337 .310 7
1/4-28 2528 .500 500 .315 .157 .052 .375 .337 .310 7
5/16-18 3118 .500 500 .378 .189 .052 .433 .400 .375 7
5/16-24 3124 .500 500 .378 .189 .052 .433 .400 .375 7

(1) All dimensions are in inches and reference unless toleranced.

General
Insert Thread Insert Thread Code L Insert Length Insert Length Code Boss A Head Thickness C Head Diameter D Insert Diameter P Pilot Diameter Number of Fins
B Hole Dia. +0.10 -0.00 W Wall Thickness Min.
M2 x 0.4 M2 4.00 4.00 3.20 1.60 0.45 4.80 3.73 3.10 2
M2.5 x 0.45 M2.5 4.80 4.80 4.00 2.00 0.58 5.50 4.52 3.90 3
M3 x 0.5 M3 4.80 4.80 4.00 2.00 0.58 5.50 4.52 3.90 3
M3.5 x 0.6 M3.5 6.40 6.40 4.80 2.40 0.74 6.40 5.31 4.70 4
M4 x 0.7 M4 7.90 7.90 5.60 2.80 0.89 7.10 6.10 5.50 5
M5 x 0.8 M5 9.50 9.50 6.40 3.20 1.07 7.90 6.96 6.30 5
M6 x 1.0 M6 12.70 12.70 8.00 4.00 1.32 9.50 8.56 7.90 7
M8 x 1.25 M8 12.70 12.70 9.60 4.80 1.32 11.10 10.16 9.50 7

(1) All dimensions are in millimeters and reference unless toleranced.
