PHZ Press-in Hex Inserts
Press-in Hex Insert Features
- Simple press-in installation for most thermoplastics.
- Hexagonal barbs provide high pull-out and torque-out resistance.
- Available in a wide variety of thread sizes.
3D files available upon request.
General

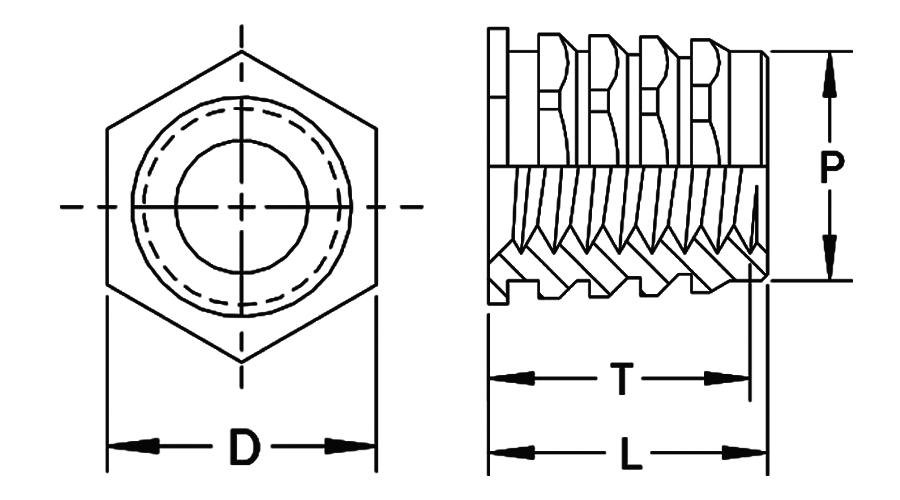

| Insert Thread | Insert Thread Code | L Insert Length Max. | Insert Length Code | Boss | D Width Across Flats | P Pilot Diameter Max. | T Full Thread Depth Min. (2) | |
| B Hole Dia. +.003 -.000 | W Wall Thickness Min. | |||||||
| 2-56 | 256 | .230 | 230 | .187 | .157 | .187 | .186 | .212 |
| 4-40 | 440 | .230 | 230 | .187 | .157 | .187 | .186 | .212 |
| 6-32 | 632 | .230 | 230 | .187 | .157 | .187 | .186 | .212 |
| 8-32 | 832 | .265 | 265 | .250 | .188 | .250 | .249 | .248 |
| 10-24 | 1024 | .265 | 265 | .250 | .188 | .250 | .249 | .248 |
| 10-32 | 1032 | .265 | 265 | .250 | .188 | .250 | .249 | .248 |
| 1/4-20 | 2520 | .315 | 315 | .312 | .219 | .312 | .311 | .300 |
| 1/4-28 | 2528 | .315 | 315 | .312 | .219 | .312 | .311 | .300 |
| 5/16-18 | 3118 | .365 | 365 | .375 | .288 | .375 | .374 | .345 |
| 5/16-24 | 3124 | .365 | 365 | .375 | .288 | .375 | .374 | .345 |
(1) All dimensions are in inches and reference unless toleranced. (2) Although thread is tapped thru, thread go-gauge may not pass beyond the T dimension.
| Insert Thread Code | Boss Material | Installation (lbs) | Pull–out (lbs) | Torque–out (in-lbs) |
| 440 | ABS | 225 | 125 | 4 |
| Polycarbonate | 600 | 280 | 16 | |
| 632 | ABS | 225 | 125 | 4 |
| Polycarbonate | 600 | 280 | 16 | |
| 832 | ABS | 300 | 135 | 10 |
| Polycarbonate | 600 | 380 | 42 | |
| 1024 1032 | ABS | 300 | 135 | 10 |
| Polycarbonate | 600 | 380 | 42 | |
| 2520 2528 | ABS | 400 | 235 | 28 |
| Polycarbonate | — | — | — |
(1) Performance data shown is for reference only. Variations in application, boss material type and size, and installation method will affect the loads. North State Fastener strongly encourages testing in the application.
General
| Insert Thread | Insert Thread Code | L Insert Length Max. | Insert Length Code | Boss | D Width Across Flats | P Pilot Diameter Max. | T Full Thread Depth Min.2 | |
| B Hole Dia. +0.08 -0.00 | W Wall Thickness Min. | |||||||
| M3 x 0.5 | M3 | 5.84 | 5.84 | 4.75 | 3.98 | 4.75 | 4.72 | 5.38 |
| M3.5 x 0.6 | M3.5 | 5.84 | 5.84 | 4.75 | 3.98 | 4.75 | 4.72 | 5.38 |
| M4 x 0.7 | M4 | 6.73 | 6.73 | 6.35 | 4.77 | 6.35 | 6.32 | 6.30 |
| M5 x 0.8 | M5 | 6.73 | 6.73 | 6.35 | 4.77 | 6.35 | 6.32 | 6.30 |
| M6 x 1.0 | M6 | 8.00 | 8.00 | 7.92 | 5.57 | 7.92 | 7.89 | 7.62 |
| M8 x 1.25 | M8 | 9.27 | 9.27 | 9.53 | 7.30 | 9.53 | 9.50 | 8.76 |
(1) All dimensions are in millimeters and reference unless toleranced. (2) Although thread is tapped thru, thread go-gauge may not pass beyond the T dimension.
| Insert Thread Code | Boss Material | Installation (kN) | Pull–out (N) | Torque–out (N-m) |
| M3 | ABS | 1.00 | 556 | 0.45 |
| Polycarbonate | 2.67 | 1245 | 1.80 | |
| M4 | ABS | 1.33 | 600 | 1.13 |
| Polycarbonate | 2.67 | 1690 | 4.74 | |
| M5 | ABS | 1.33 | 600 | 1.13 |
| Polycarbonate | 2.67 | 1690 | 4.74 | |
| M6 | ABS | 1.78 | 1045 | 3.16 |
| Polycarbonate | — | — | — |
(1) Performance data shown is for reference only. Variations in application, boss material type and size, and installation method will affect the loads. North State Fastener strongly encourages testing in the application.
