NCCT-M6-0.89-Z
NUTS
Please enter your email address for CAD file download.

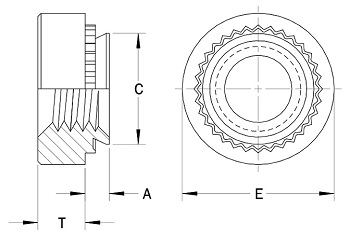

Line Drawing - Click to Enlarge
Product Details
| Inch/Metric | Metric |
| Product Type | Self-clinching nut |
| Thread | M6 x 1.0 |
| Min. Sheet Thickness | 0.92 |
| Hole size in sheet (+.003/-.000in) (+0.08/-0.00mm) | 8.75 |
| Min. dist. hole C/L to edge | 8.60 |
| For use in sheet hardness | HRB 80 Max |
| A Max. | 0.89 |
| C Max. | 8.73 |
| E (±.010in) (±0.25mm) | 11.18 |
| T (±.010in) T (±0.25mm) | 4.08 |
| Material | Heat treated carbon steel |
| Finish | Zinc with clear chromate |
| Finish Details | Zinc SC1 (5 μm min.), bake, and Type III clear chromate per ASTM B 633 |
