TB Concealed Head Self-clinching Standoffs

Product PDF

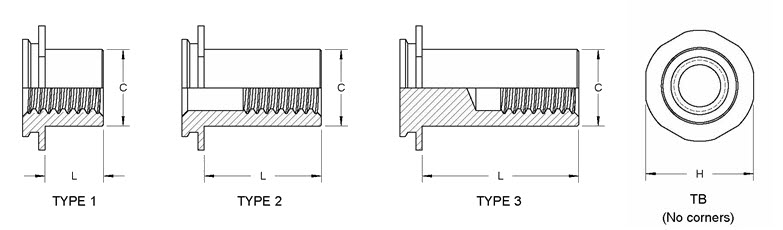

Part Description	Inch/Metric	Thread	Length (L) (+.002/-.005in) (+0.05/-0.13mm)	Type	Min. Sheet Thickness	Mounting hole size in sheet (+.003/-.000in) (+0.08/-0.00mm)	Min. dist. hole C/L to edge	For use in sheet hardness	C Max.	H Nom.	Material	Finish
TBSS-440-.187-P	Inch	4-40	.187	1	.062	.213	.188	HRB 70 or less	.165	.250	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-440-.250-P	Inch	4-40	.250	2	.062	.213	.188	HRB 70 or less	.165	.250	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-440-.312-P	Inch	4-40	.312	2	.062	.213	.188	HRB 70 or less	.165	.250	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-440-.375-P	Inch	4-40	.375	2	.062	.213	.188	HRB 70 or less	.165	.250	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-440-.500-P	Inch	4-40	.500	3	.062	.213	.188	HRB 70 or less	.165	.250	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-440-.625-P	Inch	4-40	.625	3	.062	.213	.188	HRB 70 or less	.165	.250	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-440-.750-P	Inch	4-40	.750	3	.062	.213	.188	HRB 70 or less	.165	.250	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-440-1.00-P	Inch	4-40	1.000	3	.062	.213	.188	HRB 70 or less	.165	.250	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-632-.187-P	Inch	6-32	.187	1	.062	.290	.219	HRB 70 or less	.213	.312	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-632-.250-P	Inch	6-32	.250	2	.062	.290	.219	HRB 70 or less	.213	.312	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-632-.312-P	Inch	6-32	.312	2	.062	.290	.219	HRB 70 or less	.213	.312	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-632-.375-P	Inch	6-32	.375	2	.062	.290	.219	HRB 70 or less	.213	.312	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-632-.500-P	Inch	6-32	.500	3	.062	.290	.219	HRB 70 or less	.213	.312	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-632-.625-P	Inch	6-32	.625	3	.062	.290	.219	HRB 70 or less	.213	.312	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-632-.750-P	Inch	6-32	.750	3	.062	.290	.219	HRB 70 or less	.213	.312	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-632-1.00-P	Inch	6-32	1.000	3	.062	.290	.219	HRB 70 or less	.213	.312	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-832-.187-P	Inch	8-32	.187	1	.062	.312	.250	HRB 70 or less	.245	.344	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-832-.250-P	Inch	8-32	.250	1	.062	.312	.250	HRB 70 or less	.245	.344	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-832-.312-P	Inch	8-32	.312	2	.062	.312	.250	HRB 70 or less	.245	.344	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-832-.375-P	Inch	8-32	.375	2	.062	.312	.250	HRB 70 or less	.245	.344	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-832-.500-P	Inch	8-32	.500	3	.062	.312	.250	HRB 70 or less	.245	.344	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-832-.625-P	Inch	8-32	.625	3	.062	.312	.250	HRB 70 or less	.245	.344	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-832-.750-P	Inch	8-32	.750	3	.062	.312	.250	HRB 70 or less	.245	.344	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-832-1.00-P	Inch	8-32	1.000	3	.062	.312	.250	HRB 70 or less	.245	.344	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-1032-.187-P	Inch	10-32	.187	1	.062	.344	.281	HRB 70 or less	.290	.375	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-1032-.250-P	Inch	10-32	.250	1	.062	.344	.281	HRB 70 or less	.290	.375	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-1032-.312-P	Inch	10-32	.312	1	.062	.344	.281	HRB 70 or less	.290	.375	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-1032-.375-P	Inch	10-32	.375	1	.062	.344	.281	HRB 70 or less	.290	.375	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-1032-.500-P	Inch	10-32	.500	2	.062	.344	.281	HRB 70 or less	.290	.375	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-1032-.625-P	Inch	10-32	.625	3	.062	.344	.281	HRB 70 or less	.290	.375	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-1032-.750-P	Inch	10-32	.750	3	.062	.344	.281	HRB 70 or less	.290	.375	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-1032-1.00-P	Inch	10-32	1.000	3	.062	.344	.281	HRB 70 or less	.290	.375	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-2520-.187-P	Inch	1/4-20	.187	1	.062	.390	.375	HRB 70 or less	.354	.438	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-2520-.250-P	Inch	1/4-20	.250	1	.062	.390	.375	HRB 70 or less	.354	.438	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-2520-.312-P	Inch	1/4-20	.312	1	.062	.390	.375	HRB 70 or less	.354	.438	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-2520-.375-P	Inch	1/4-20	.375	1	.062	.390	.375	HRB 70 or less	.354	.438	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-2520-.500-P	Inch	1/4-20	.500	2	.062	.390	.375	HRB 70 or less	.354	.438	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-2520-.625-P	Inch	1/4-20	.625	2	.062	.390	.375	HRB 70 or less	.354	.438	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-2520-.750-P	Inch	1/4-20	.750	3	.062	.390	.375	HRB 70 or less	.354	.438	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-2520-1.00-P	Inch	1/4-20	1.000	3	.062	.390	.375	HRB 70 or less	.354	.438	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M3-4-P	Metric	M3 x 0.5	4	1	1.60	5.41	4.8	HRB 70 or less	4.20	6.35	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M3-6-P	Metric	M3 x 0.5	6	1	1.60	5.41	4.8	HRB 70 or less	4.20	6.35	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M3-8-P	Metric	M3 x 0.5	8	2	1.60	5.41	4.8	HRB 70 or less	4.20	6.35	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M3-10-P	Metric	M3 x 0.5	10	3	1.60	5.41	4.8	HRB 70 or less	4.20	6.35	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M3-12-P	Metric	M3 x 0.5	12	3	1.60	5.41	4.8	HRB 70 or less	4.20	6.35	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M3-16-P	Metric	M3 x 0.5	16	3	1.60	5.41	4.8	HRB 70 or less	4.20	6.35	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M3-20-P	Metric	M3 x 0.5	20	3	1.60	5.41	4.8	HRB 70 or less	4.20	6.35	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M3-25-P	Metric	M3 x 0.5	25	3	1.60	5.41	4.8	HRB 70 or less	4.20	6.35	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M4-4-P	Metric	M4 x 0.7	4	1	1.60	7.92	6.4	HRB 70 or less	6.23	8.74	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M4-6-P	Metric	M4 x 0.7	6	1	1.60	7.92	6.4	HRB 70 or less	6.23	8.74	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M4-8-P	Metric	M4 x 0.7	8	2	1.60	7.92	6.4	HRB 70 or less	6.23	8.74	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M4-10-P	Metric	M4 x 0.7	10	2	1.60	7.92	6.4	HRB 70 or less	6.23	8.74	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M4-12-P	Metric	M4 x 0.7	12	3	1.60	7.92	6.4	HRB 70 or less	6.23	8.74	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M4-16-P	Metric	M4 x 0.7	16	3	1.60	7.92	6.4	HRB 70 or less	6.23	8.74	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M4-20-P	Metric	M4 x 0.7	20	3	1.60	7.92	6.4	HRB 70 or less	6.23	8.74	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M4-25-P	Metric	M4 x 0.7	25	3	1.60	7.92	6.4	HRB 70 or less	6.23	8.74	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M5-4-P	Metric	M5 x 0.8	4	1	1.60	8.74	7.2	HRB 70 or less	7.37	9.53	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M5-6-P	Metric	M5 x 0.8	6	1	1.60	8.74	7.2	HRB 70 or less	7.37	9.53	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M5-8-P	Metric	M5 x 0.8	8	1	1.60	8.74	7.2	HRB 70 or less	7.37	9.53	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M5-10-P	Metric	M5 x 0.8	10	2	1.60	8.74	7.2	HRB 70 or less	7.37	9.53	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M5-12-P	Metric	M5 x 0.8	12	2	1.60	8.74	7.2	HRB 70 or less	7.37	9.53	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M5-16-P	Metric	M5 x 0.8	16	3	1.60	8.74	7.2	HRB 70 or less	7.37	9.53	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M5-20-P	Metric	M5 x 0.8	20	3	1.60	8.74	7.2	HRB 70 or less	7.37	9.53	300-Series stainless steel	Passivated and/or tested per ASTM A 967
TBSS-M5-25-P	Metric	M5 x 0.8	25	3	1.60	8.74	7.2	HRB 70 or less	7.37	9.53	300-Series stainless steel	Passivated and/or tested per ASTM A 967

TB Concealed Head Self-clinching Standoffs
