TC Broaching Head Self-clinching Standoffs

Product PDF

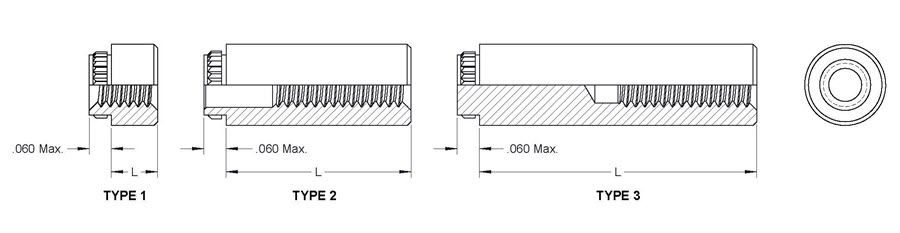

Part Description	Inch/Metric	Thread	Length (L) (±.005in) (±0.13mm)	Type	Min. Sheet Thickness	Hole size in sheet (+.003/-.000in) (+0.08/-0.00mm)	Min. dist. hole C/L to edge	For use in sheet hardness	Knurl Dia. (C) (±.003in) (±.08mm)	Material	Finish
TCSS-440-.125-P	Inch	4-40	.125	1	.060	.166	.17	HRB 70 or less	.184	300-Series stainless steel	Passivated and/or tested
TCSS-440-.250-P	Inch	4-40	.250	1	.060	.166	.17	HRB 70 or less	.184	300-Series stainless steel	Passivated and/or tested
TCSS-440-.375-P	Inch	4-40	.375	1	.060	.166	.17	HRB 70 or less	.184	300-Series stainless steel	Passivated and/or tested
TCSS-440-.500-P	Inch	4-40	.500	2	.060	.166	.17	HRB 70 or less	.184	300-Series stainless steel	Passivated and/or tested
TCSS-440-.625-P	Inch	4-40	.625	2	.060	.166	.17	HRB 70 or less	.184	300-Series stainless steel	Passivated and/or tested
TCSS-440-.750-P	Inch	4-40	.750	3	.060	.166	.17	HRB 70 or less	.184	300-Series stainless steel	Passivated and/or tested
TCSS-440-.875-P	Inch	4-40	.875	3	.060	.166	.17	HRB 70 or less	.184	300-Series stainless steel	Passivated and/or tested
TCSS-440-1.000-P	Inch	4-40	1.000	3	.060	.166	.17	HRB 70 or less	.184	300-Series stainless steel	Passivated and/or tested
TCSS-632-.125-P	Inch	6-32	.125	1	.060	.213	.22	HRB 70 or less	.231	300-Series stainless steel	Passivated and/or tested
TCSS-632-.250-P	Inch	6-32	.250	1	.060	.213	.22	HRB 70 or less	.231	300-Series stainless steel	Passivated and/or tested
TCSS-632-.375-P	Inch	6-32	.375	1	.060	.213	.22	HRB 70 or less	.231	300-Series stainless steel	Passivated and/or tested
TCSS-632-.500-P	Inch	6-32	.500	2	.060	.213	.22	HRB 70 or less	.231	300-Series stainless steel	Passivated and/or tested
TCSS-632-.625-P	Inch	6-32	.625	2	.060	.213	.22	HRB 70 or less	.231	300-Series stainless steel	Passivated and/or tested
TCSS-632-.750-P	Inch	6-32	.750	3	.060	.213	.22	HRB 70 or less	.231	300-Series stainless steel	Passivated and/or tested
TCSS-632-.875-P	Inch	6-32	.875	3	.060	.213	.22	HRB 70 or less	.231	300-Series stainless steel	Passivated and/or tested
TCSS-632-1.000-P	Inch	6-32	1.000	3	.060	.213	.22	HRB 70 or less	.231	300-Series stainless steel	Passivated and/or tested
TCST-440-.125-TIN	Inch	4-40	.125	1	.060	.166	.17	HRB 60 or less	.184	Carbon steel	Electroplated
TCST-440-.250-TIN	Inch	4-40	.250	1	.060	.166	.17	HRB 60 or less	.184	Carbon steel	Electroplated
TCST-440-.375-TIN	Inch	4-40	.375	1	.060	.166	.17	HRB 60 or less	.184	Carbon steel	Electroplated
TCST-440-.500-TIN	Inch	4-40	.500	2	.060	.166	.17	HRB 60 or less	.184	Carbon steel	Electroplated
TCST-440-.625-TIN	Inch	4-40	.625	2	.060	.166	.17	HRB 60 or less	.184	Carbon steel	Electroplated
TCST-440-.750-TIN	Inch	4-40	.750	3	.060	.166	.17	HRB 60 or less	.184	Carbon steel	Electroplated
TCST-440-.875-TIN	Inch	4-40	.875	3	.060	.166	.17	HRB 60 or less	.184	Carbon steel	Electroplated
TCST-440-1.000-TIN	Inch	4-40	1.000	3	.060	.166	.17	HRB 60 or less	.184	Carbon steel	Electroplated
TCST-632-.125-TIN	Inch	6-32	.125	1	.060	.213	.22	HRB 60 or less	.231	Carbon steel	Electroplated
TCST-632-.250-TIN	Inch	6-32	.250	1	.060	.213	.22	HRB 60 or less	.231	Carbon steel	Electroplated
TCST-632-.375-TIN	Inch	6-32	.375	1	.060	.213	.22	HRB 60 or less	.231	Carbon steel	Electroplated
TCST-632-.500-TIN	Inch	6-32	.500	2	.060	.213	.22	HRB 60 or less	.231	Carbon steel	Electroplated
TCST-632-.625-TIN	Inch	6-32	.625	2	.060	.213	.22	HRB 60 or less	.231	Carbon steel	Electroplated
TCST-632-.750-TIN	Inch	6-32	.750	3	.060	.213	.22	HRB 60 or less	.231	Carbon steel	Electroplated
TCST-632-.875-TIN	Inch	6-32	.875	3	.060	.213	.22	HRB 60 or less	.231	Carbon steel	Electroplated
TCST-632-1.000-TIN	Inch	6-32	1.000	3	.060	.213	.22	HRB 60 or less	.231	Carbon steel	Electroplated
TCST-M3-3-TIN	Metric	M3 x 0.5	3	1	1.53	4.22	4.40	HRB 60 or less	4.68	Carbon steel	Electroplated
TCST-M3-4-TIN	Metric	M3 x 0.5	4	1	1.53	4.22	4.40	HRB 60 or less	4.68	Carbon steel	Electroplated
TCST-M3-6-TIN	Metric	M3 x 0.5	6	1	1.53	4.22	4.40	HRB 60 or less	4.68	Carbon steel	Electroplated
TCST-M3-8-TIN	Metric	M3 x 0.5	8	1	1.53	4.22	4.40	HRB 60 or less	4.68	Carbon steel	Electroplated
TCST-M3-10-TIN	Metric	M3 x 0.5	10	1	1.53	4.22	4.40	HRB 60 or less	4.68	Carbon steel	Electroplated
TCST-M3-12-TIN	Metric	M3 x 0.5	12	2	1.53	4.22	4.40	HRB 60 or less	4.68	Carbon steel	Electroplated
TCST-M3-14-TIN	Metric	M3 x 0.5	14	2	1.53	4.22	4.40	HRB 60 or less	4.68	Carbon steel	Electroplated
TCST-M3-16-TIN	Metric	M3 x 0.5	16	2	1.53	4.22	4.40	HRB 60 or less	4.68	Carbon steel	Electroplated
TCSS-M3-3-P	Metric	M3 x 0.5	3	1	1.53	4.22	4.40	HRB 70 or less	4.68	300-Series stainless steel	Passivated and/or tested
TCSS-M3-4-P	Metric	M3 x 0.5	4	1	1.53	4.22	4.40	HRB 70 or less	4.68	300-Series stainless steel	Passivated and/or tested
TCSS-M3-6-P	Metric	M3 x 0.5	6	1	1.53	4.22	4.40	HRB 70 or less	4.68	300-Series stainless steel	Passivated and/or tested
TCSS-M3-8-P	Metric	M3 x 0.5	8	1	1.53	4.22	4.40	HRB 70 or less	4.68	300-Series stainless steel	Passivated and/or tested
TCSS-M3-10-P	Metric	M3 x 0.5	10	1	1.53	4.22	4.40	HRB 70 or less	4.68	300-Series stainless steel	Passivated and/or tested
TCSS-M3-12-P	Metric	M3 x 0.5	12	2	1.53	4.22	4.40	HRB 70 or less	4.68	300-Series stainless steel	Passivated and/or tested
TCSS-M3-14-P	Metric	M3 x 0.5	14	2	1.53	4.22	4.40	HRB 70 or less	4.68	300-Series stainless steel	Passivated and/or tested
TCSS-M3-16-P	Metric	M3 x 0.5	16	2	1.53	4.22	4.40	HRB 70 or less	4.68	300-Series stainless steel	Passivated and/or tested
