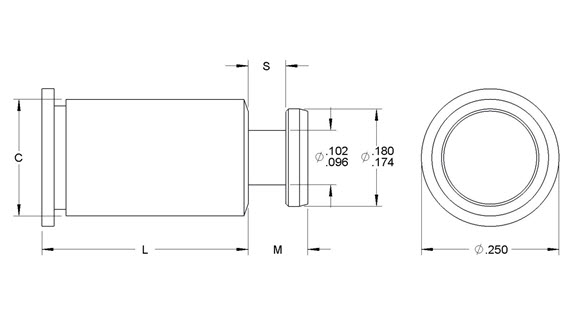

TJ Self-Clinching Key-Loc™ Self-Clinching Standoffs

Product PDF

Part Description	Inch/Metric	Panel 2 Thickness (+.004/-.003in) (+0.10/-0.07mm)	Length (L) (±.005in) (±0.13mm)	Min. panel 1 thickness	Hole size in panel 1 (+.003/-.000in) (+0.08/-0.00mm)	Min. dist. panel 1 hole C/L to edge	For use in panel 1 hardness	Body Dia. (C) (Max.)	S (±.003in) (±.0.08mm)	M Max.	Material	Finish
TJS4-.212-.060-.063-P	Inch	.060	.063	.040	.213	.260	HRB 88 or less	.212	.068	.108	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-.212-.060-.125-P	Inch	.060	.125	.040	.213	.260	HRB 88 or less	.212	.068	.108	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-.212-.060-.188-P	Inch	.060	.188	.040	.213	.260	HRB 88 or less	.212	.068	.108	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-.212-.060-.250-P	Inch	.060	.250	.040	.213	.260	HRB 88 or less	.212	.068	.108	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-.212-.060-.312-P	Inch	.060	.312	.040	.213	.260	HRB 88 or less	.212	.068	.108	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-.212-.060-.375-P	Inch	.060	.375	.040	.213	.260	HRB 88 or less	.212	.068	.108	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-.212-.060-.437-P	Inch	.060	.437	.040	.213	.260	HRB 88 or less	.212	.068	.108	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-.212-.060-.500-P	Inch	.060	.500	.040	.213	.260	HRB 88 or less	.212	.068	.108	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-.212-.060-.562-P	Inch	.060	.562	.040	.213	.260	HRB 88 or less	.212	.068	.108	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-.212-.060-.625-P	Inch	.060	.625	.040	.213	.260	HRB 88 or less	.212	.068	.108	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-.212-.060-.750-P	Inch	.060	.750	.040	.213	.260	HRB 88 or less	.212	.068	.108	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-.212-.060-.875-P	Inch	.060	.875	.040	.213	.260	HRB 88 or less	.212	.068	.108	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-.212-.060-1.00-P	Inch	.060	1.000	.040	.213	.260	HRB 88 or less	.212	.068	.108	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-.212-.090-.063-P	Inch	.090	.063	.040	.213	.260	HRB 88 or less	.212	.098	.138	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-.212-.090-.125-P	Inch	.090	.125	.040	.213	.260	HRB 88 or less	.212	.098	.138	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-.212-.090-.188-P	Inch	.090	.188	.040	.213	.260	HRB 88 or less	.212	.098	.138	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-.212-.090-.250-P	Inch	.090	.250	.040	.213	.260	HRB 88 or less	.212	.098	.138	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-.212-.090-.312-P	Inch	.090	.312	.040	.213	.260	HRB 88 or less	.212	.098	.138	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-.212-.090-.375-P	Inch	.090	.375	.040	.213	.260	HRB 88 or less	.212	.098	.138	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-.212-.090-.437-P	Inch	.090	.437	.040	.213	.260	HRB 88 or less	.212	.098	.138	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-.212-.090-.500-P	Inch	.090	.500	.040	.213	.260	HRB 88 or less	.212	.098	.138	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-.212-.090-.562-P	Inch	.090	.562	.040	.213	.260	HRB 88 or less	.212	.098	.138	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-.212-.090-.625-P	Inch	.090	.625	.040	.213	.260	HRB 88 or less	.212	.098	.138	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-.212-.090-.750-P	Inch	.090	.750	.040	.213	.260	HRB 88 or less	.212	.098	.138	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-.212-.090-.875-P	Inch	.090	.875	.040	.213	.260	HRB 88 or less	.212	.098	.138	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-.212-.090-1.00-P	Inch	.090	1.000	.040	.213	.260	HRB 88 or less	.212	.098	.138	400-Series heat treated stainless steel	Passivated and/or tested
TJSS-.212-.060-.063-P	Inch	.060	.063	.040	.213	.260	HRB 70 or less	.212	.068	.108	300-Series stainless steel	Passivated and/or tested
TJSS-.212-.060-.125-P	Inch	.060	.125	.040	.213	.260	HRB 70 or less	.212	.068	.108	300-Series stainless steel	Passivated and/or tested
TJSS-.212-.060-.188-P	Inch	.060	.188	.040	.213	.260	HRB 70 or less	.212	.068	.108	300-Series stainless steel	Passivated and/or tested
TJSS-.212-.060-.250-P	Inch	.060	.250	.040	.213	.260	HRB 70 or less	.212	.068	.108	300-Series stainless steel	Passivated and/or tested
TJSS-.212-.060-.312-P	Inch	.060	.312	.040	.213	.260	HRB 70 or less	.212	.068	.108	300-Series stainless steel	Passivated and/or tested
TJSS-.212-.060-.375-P	Inch	.060	.375	.040	.213	.260	HRB 70 or less	.212	.068	.108	300-Series stainless steel	Passivated and/or tested
TJSS-.212-.060-.437-P	Inch	.060	.437	.040	.213	.260	HRB 70 or less	.212	.068	.108	300-Series stainless steel	Passivated and/or tested
TJSS-.212-.060-.500-P	Inch	.060	.500	.040	.213	.260	HRB 70 or less	.212	.068	.108	300-Series stainless steel	Passivated and/or tested
TJSS-.212-.060-.562-P	Inch	.060	.562	.040	.213	.260	HRB 70 or less	.212	.068	.108	300-Series stainless steel	Passivated and/or tested
TJSS-.212-.060-.625-P	Inch	.060	.625	.040	.213	.260	HRB 70 or less	.212	.068	.108	300-Series stainless steel	Passivated and/or tested
TJSS-.212-.060-.750-P	Inch	.060	.750	.040	.213	.260	HRB 70 or less	.212	.068	.108	300-Series stainless steel	Passivated and/or tested
TJSS-.212-.060-.875-P	Inch	.060	.875	.040	.213	.260	HRB 70 or less	.212	.068	.108	300-Series stainless steel	Passivated and/or tested
TJSS-.212-.060-1.00-P	Inch	.060	1.000	.040	.213	.260	HRB 70 or less	.212	.068	.108	300-Series stainless steel	Passivated and/or tested
TJSS-.212-.090-.063-P	Inch	.090	.063	.040	.213	.260	HRB 70 or less	.212	.098	.138	300-Series stainless steel	Passivated and/or tested
TJSS-.212-.090-.125-P	Inch	.090	.125	.040	.213	.260	HRB 70 or less	.212	.098	.138	300-Series stainless steel	Passivated and/or tested
TJSS-.212-.090-.188-P	Inch	.090	.188	.040	.213	.260	HRB 70 or less	.212	.098	.138	300-Series stainless steel	Passivated and/or tested
TJSS-.212-.090-.250-P	Inch	.090	.250	.040	.213	.260	HRB 70 or less	.212	.098	.138	300-Series stainless steel	Passivated and/or tested
TJSS-.212-.090-.312-P	Inch	.090	.312	.040	.213	.260	HRB 70 or less	.212	.098	.138	300-Series stainless steel	Passivated and/or tested
TJSS-.212-.090-.375-P	Inch	.090	.375	.040	.213	.260	HRB 70 or less	.212	.098	.138	300-Series stainless steel	Passivated and/or tested
TJSS-.212-.090-.437-P	Inch	.090	.437	.040	.213	.260	HRB 70 or less	.212	.098	.138	300-Series stainless steel	Passivated and/or tested
TJSS-.212-.090-.500-P	Inch	.090	.500	.040	.213	.260	HRB 70 or less	.212	.098	.138	300-Series stainless steel	Passivated and/or tested
TJSS-.212-.090-.562-P	Inch	.090	.562	.040	.213	.260	HRB 70 or less	.212	.098	.138	300-Series stainless steel	Passivated and/or tested
TJSS-.212-.090-.625-P	Inch	.090	.625	.040	.213	.260	HRB 70 or less	.212	.098	.138	300-Series stainless steel	Passivated and/or tested
TJSS-.212-.090-.750-P	Inch	.090	.750	.040	.213	.260	HRB 70 or less	.212	.098	.138	300-Series stainless steel	Passivated and/or tested
TJSS-.212-.090-.875-P	Inch	.090	.875	.040	.213	.260	HRB 70 or less	.212	.098	.138	300-Series stainless steel	Passivated and/or tested
TJSS-.212-.090-1.00-P	Inch	.090	1.000	.040	.213	.260	HRB 70 or less	.212	.098	.138	300-Series stainless steel	Passivated and/or tested
TJST-.212-.060-.063-Z	Inch	.060	.063	.040	.213	.260	HRB 80 or less	.212	.068	.108	Heat treated carbon steel	Zinc with clear chromate
TJST-.212-.060-.125-Z	Inch	.060	.125	.040	.213	.260	HRB 80 or less	.212	.068	.108	Heat treated carbon steel	Zinc with clear chromate
TJST-.212-.060-.188-Z	Inch	.060	.188	.040	.213	.260	HRB 80 or less	.212	.068	.108	Heat treated carbon steel	Zinc with clear chromate
TJST-.212-.060-.250-Z	Inch	.060	.250	.040	.213	.260	HRB 80 or less	.212	.068	.108	Heat treated carbon steel	Zinc with clear chromate
TJST-.212-.060-.312-Z	Inch	.060	.312	.040	.213	.260	HRB 80 or less	.212	.068	.108	Heat treated carbon steel	Zinc with clear chromate
TJST-.212-.060-.375-Z	Inch	.060	.375	.040	.213	.260	HRB 80 or less	.212	.068	.108	Heat treated carbon steel	Zinc with clear chromate
TJST-.212-.060-.437-Z	Inch	.060	.437	.040	.213	.260	HRB 80 or less	.212	.068	.108	Heat treated carbon steel	Zinc with clear chromate
TJST-.212-.060-.500-Z	Inch	.060	.500	.040	.213	.260	HRB 80 or less	.212	.068	.108	Heat treated carbon steel	Zinc with clear chromate
TJST-.212-.060-.562-Z	Inch	.060	.562	.040	.213	.260	HRB 80 or less	.212	.068	.108	Heat treated carbon steel	Zinc with clear chromate
TJST-.212-.060-.625-Z	Inch	.060	.625	.040	.213	.260	HRB 80 or less	.212	.068	.108	Heat treated carbon steel	Zinc with clear chromate
TJST-.212-.060-.750-Z	Inch	.060	.750	.040	.213	.260	HRB 80 or less	.212	.068	.108	Heat treated carbon steel	Zinc with clear chromate
TJST-.212-.060-.875-Z	Inch	.060	.875	.040	.213	.260	HRB 80 or less	.212	.068	.108	Heat treated carbon steel	Zinc with clear chromate
TJST-.212-.060-1.00-Z	Inch	.060	1.000	.040	.213	.260	HRB 80 or less	.212	.068	.108	Heat treated carbon steel	Zinc with clear chromate
TJST-.212-.090-.063-Z	Inch	.090	.063	.040	.213	.260	HRB 80 or less	.212	.098	.138	Heat treated carbon steel	Zinc with clear chromate
TJST-.212-.090-.125-Z	Inch	.090	.125	.040	.213	.260	HRB 80 or less	.212	.098	.138	Heat treated carbon steel	Zinc with clear chromate
TJST-.212-.090-.188-Z	Inch	.090	.188	.040	.213	.260	HRB 80 or less	.212	.098	.138	Heat treated carbon steel	Zinc with clear chromate
TJST-.212-.090-.250-Z	Inch	.090	.250	.040	.213	.260	HRB 80 or less	.212	.098	.138	Heat treated carbon steel	Zinc with clear chromate
TJST-.212-.090-.312-Z	Inch	.090	.312	.040	.213	.260	HRB 80 or less	.212	.098	.138	Heat treated carbon steel	Zinc with clear chromate
TJST-.212-.090-.375-Z	Inch	.090	.375	.040	.213	.260	HRB 80 or less	.212	.098	.138	Heat treated carbon steel	Zinc with clear chromate
TJST-.212-.090-.437-Z	Inch	.090	.437	.040	.213	.260	HRB 80 or less	.212	.098	.138	Heat treated carbon steel	Zinc with clear chromate
TJST-.212-.090-.500-Z	Inch	.090	.500	.040	.213	.260	HRB 80 or less	.212	.098	.138	Heat treated carbon steel	Zinc with clear chromate
TJST-.212-.090-.562-Z	Inch	.090	.562	.040	.213	.260	HRB 80 or less	.212	.098	.138	Heat treated carbon steel	Zinc with clear chromate
TJST-.212-.090-.625-Z	Inch	.090	.625	.040	.213	.260	HRB 80 or less	.212	.098	.138	Heat treated carbon steel	Zinc with clear chromate
TJST-.212-.090-.750-Z	Inch	.090	.750	.040	.213	.260	HRB 80 or less	.212	.098	.138	Heat treated carbon steel	Zinc with clear chromate
TJST-.212-.090-.875-Z	Inch	.090	.875	.040	.213	.260	HRB 80 or less	.212	.098	.138	Heat treated carbon steel	Zinc with clear chromate
TJST-.212-.090-1.00-Z	Inch	.090	1.000	.040	.213	.260	HRB 80 or less	.212	.098	.138	Heat treated carbon steel	Zinc with clear chromate
TJS4-5.39-1.52-2-P	Metric	1.52	2	1.02	5.41	6.60	HRB 88 or less	5.39	1.73	2.75	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-5.39-1.52-4-P	Metric	1.52	4	1.02	5.41	6.60	HRB 88 or less	5.39	1.73	2.75	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-5.39-1.52-6-P	Metric	1.52	6	1.02	5.41	6.60	HRB 88 or less	5.39	1.73	2.75	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-5.39-1.52-8-P	Metric	1.52	8	1.02	5.41	6.60	HRB 88 or less	5.39	1.73	2.75	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-5.39-1.52-10-P	Metric	1.52	10	1.02	5.41	6.60	HRB 88 or less	5.39	1.73	2.75	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-5.39-1.52-12-P	Metric	1.52	12	1.02	5.41	6.60	HRB 88 or less	5.39	1.73	2.75	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-5.39-1.52-14-P	Metric	1.52	14	1.02	5.41	6.60	HRB 88 or less	5.39	1.73	2.75	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-5.39-1.52-16-P	Metric	1.52	16	1.02	5.41	6.60	HRB 88 or less	5.39	1.73	2.75	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-5.39-1.52-18-P	Metric	1.52	18	1.02	5.41	6.60	HRB 88 or less	5.39	1.73	2.75	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-5.39-1.52-20-P	Metric	1.52	20	1.02	5.41	6.60	HRB 88 or less	5.39	1.73	2.75	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-5.39-1.52-22-P	Metric	1.52	22	1.02	5.41	6.60	HRB 88 or less	5.39	1.73	2.75	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-5.39-1.52-25-P	Metric	1.52	25	1.02	5.41	6.60	HRB 88 or less	5.39	1.73	2.75	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-5.39-2.29-2-P	Metric	2.29	2	1.02	5.41	6.60	HRB 88 or less	5.39	2.49	3.51	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-5.39-2.29-4-P	Metric	2.29	4	1.02	5.41	6.60	HRB 88 or less	5.39	2.49	3.51	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-5.39-2.29-6-P	Metric	2.29	6	1.02	5.41	6.60	HRB 88 or less	5.39	2.49	3.51	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-5.39-2.29-8-P	Metric	2.29	8	1.02	5.41	6.60	HRB 88 or less	5.39	2.49	3.51	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-5.39-2.29-10-P	Metric	2.29	10	1.02	5.41	6.60	HRB 88 or less	5.39	2.49	3.51	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-5.39-2.29-12-P	Metric	2.29	12	1.02	5.41	6.60	HRB 88 or less	5.39	2.49	3.51	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-5.39-2.29-14-P	Metric	2.29	14	1.02	5.41	6.60	HRB 88 or less	5.39	2.49	3.51	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-5.39-2.29-16-P	Metric	2.29	16	1.02	5.41	6.60	HRB 88 or less	5.39	2.49	3.51	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-5.39-2.29-18-P	Metric	2.29	18	1.02	5.41	6.60	HRB 88 or less	5.39	2.49	3.51	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-5.39-2.29-20-P	Metric	2.29	20	1.02	5.41	6.60	HRB 88 or less	5.39	2.49	3.51	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-5.39-2.29-22-P	Metric	2.29	22	1.02	5.41	6.60	HRB 88 or less	5.39	2.49	3.51	400-Series heat treated stainless steel	Passivated and/or tested
TJS4-5.39-2.29-25-P	Metric	2.29	25	1.02	5.41	6.60	HRB 88 or less	5.39	2.49	3.51	400-Series heat treated stainless steel	Passivated and/or tested
TJSS-5.39-1.52-2-P	Metric	1.52	2	1.02	5.41	6.60	HRB 70 or less	5.39	1.73	2.75	300-Series stainless steel	Passivated and/or tested
TJSS-5.39-1.52-4-P	Metric	1.52	4	1.02	5.41	6.60	HRB 70 or less	5.39	1.73	2.75	300-Series stainless steel	Passivated and/or tested
TJSS-5.39-1.52-6-P	Metric	1.52	6	1.02	5.41	6.60	HRB 70 or less	5.39	1.73	2.75	300-Series stainless steel	Passivated and/or tested
TJSS-5.39-1.52-8-P	Metric	1.52	8	1.02	5.41	6.60	HRB 70 or less	5.39	1.73	2.75	300-Series stainless steel	Passivated and/or tested
TJSS-5.39-1.52-10-P	Metric	1.52	10	1.02	5.41	6.60	HRB 70 or less	5.39	1.73	2.75	300-Series stainless steel	Passivated and/or tested
TJSS-5.39-1.52-12-P	Metric	1.52	12	1.02	5.41	6.60	HRB 70 or less	5.39	1.73	2.75	300-Series stainless steel	Passivated and/or tested
TJSS-5.39-1.52-14-P	Metric	1.52	14	1.02	5.41	6.60	HRB 70 or less	5.39	1.73	2.75	300-Series stainless steel	Passivated and/or tested
TJSS-5.39-1.52-16-P	Metric	1.52	16	1.02	5.41	6.60	HRB 70 or less	5.39	1.73	2.75	300-Series stainless steel	Passivated and/or tested
TJSS-5.39-1.52-18-P	Metric	1.52	18	1.02	5.41	6.60	HRB 70 or less	5.39	1.73	2.75	300-Series stainless steel	Passivated and/or tested
TJSS-5.39-1.52-20-P	Metric	1.52	20	1.02	5.41	6.60	HRB 70 or less	5.39	1.73	2.75	300-Series stainless steel	Passivated and/or tested
TJSS-5.39-1.52-22-P	Metric	1.52	22	1.02	5.41	6.60	HRB 70 or less	5.39	1.73	2.75	300-Series stainless steel	Passivated and/or tested
TJSS-5.39-1.52-25-P	Metric	1.52	25	1.02	5.41	6.60	HRB 70 or less	5.39	1.73	2.75	300-Series stainless steel	Passivated and/or tested
TJSS-5.39-2.29-2-P	Metric	2.29	2	1.02	5.41	6.60	HRB 70 or less	5.39	2.49	3.51	300-Series stainless steel	Passivated and/or tested
TJSS-5.39-2.29-4-P	Metric	2.29	4	1.02	5.41	6.60	HRB 70 or less	5.39	2.49	3.51	300-Series stainless steel	Passivated and/or tested
TJSS-5.39-2.29-6-P	Metric	2.29	6	1.02	5.41	6.60	HRB 70 or less	5.39	2.49	3.51	300-Series stainless steel	Passivated and/or tested
TJSS-5.39-2.29-8-P	Metric	2.29	8	1.02	5.41	6.60	HRB 70 or less	5.39	2.49	3.51	300-Series stainless steel	Passivated and/or tested
TJSS-5.39-2.29-10-P	Metric	2.29	10	1.02	5.41	6.60	HRB 70 or less	5.39	2.49	3.51	300-Series stainless steel	Passivated and/or tested
TJSS-5.39-2.29-12-P	Metric	2.29	12	1.02	5.41	6.60	HRB 70 or less	5.39	2.49	3.51	300-Series stainless steel	Passivated and/or tested
TJSS-5.39-2.29-14-P	Metric	2.29	14	1.02	5.41	6.60	HRB 70 or less	5.39	2.49	3.51	300-Series stainless steel	Passivated and/or tested
TJSS-5.39-2.29-16-P	Metric	2.29	16	1.02	5.41	6.60	HRB 70 or less	5.39	2.49	3.51	300-Series stainless steel	Passivated and/or tested
TJSS-5.39-2.29-18-P	Metric	2.29	18	1.02	5.41	6.60	HRB 70 or less	5.39	2.49	3.51	300-Series stainless steel	Passivated and/or tested
TJSS-5.39-2.29-20-P	Metric	2.29	20	1.02	5.41	6.60	HRB 70 or less	5.39	2.49	3.51	300-Series stainless steel	Passivated and/or tested
TJSS-5.39-2.29-22-P	Metric	2.29	22	1.02	5.41	6.60	HRB 70 or less	5.39	2.49	3.51	300-Series stainless steel	Passivated and/or tested
TJSS-5.39-2.29-25-P	Metric	2.29	25	1.02	5.41	6.60	HRB 70 or less	5.39	2.49	3.51	300-Series stainless steel	Passivated and/or tested
TJST-5.39-1.52-2-Z	Metric	1.52	2	1.02	5.41	6.60	HRB 80 or less	5.39	1.73	2.75	Heat treated carbon steel	Zinc with clear chromate
TJST-5.39-1.52-4-Z	Metric	1.52	4	1.02	5.41	6.60	HRB 80 or less	5.39	1.73	2.75	Heat treated carbon steel	Zinc with clear chromate
TJST-5.39-1.52-6-Z	Metric	1.52	6	1.02	5.41	6.60	HRB 80 or less	5.39	1.73	2.75	Heat treated carbon steel	Zinc with clear chromate
TJST-5.39-1.52-8-Z	Metric	1.52	8	1.02	5.41	6.60	HRB 80 or less	5.39	1.73	2.75	Heat treated carbon steel	Zinc with clear chromate
TJST-5.39-1.52-10-Z	Metric	1.52	10	1.02	5.41	6.60	HRB 80 or less	5.39	1.73	2.75	Heat treated carbon steel	Zinc with clear chromate
TJST-5.39-1.52-12-Z	Metric	1.52	12	1.02	5.41	6.60	HRB 80 or less	5.39	1.73	2.75	Heat treated carbon steel	Zinc with clear chromate
TJST-5.39-1.52-14-Z	Metric	1.52	14	1.02	5.41	6.60	HRB 80 or less	5.39	1.73	2.75	Heat treated carbon steel	Zinc with clear chromate
TJST-5.39-1.52-16-Z	Metric	1.52	16	1.02	5.41	6.60	HRB 80 or less	5.39	1.73	2.75	Heat treated carbon steel	Zinc with clear chromate
TJST-5.39-1.52-18-Z	Metric	1.52	18	1.02	5.41	6.60	HRB 80 or less	5.39	1.73	2.75	Heat treated carbon steel	Zinc with clear chromate
TJST-5.39-1.52-20-Z	Metric	1.52	20	1.02	5.41	6.60	HRB 80 or less	5.39	1.73	2.75	Heat treated carbon steel	Zinc with clear chromate
TJST-5.39-1.52-22-Z	Metric	1.52	22	1.02	5.41	6.60	HRB 80 or less	5.39	1.73	2.75	Heat treated carbon steel	Zinc with clear chromate
TJST-5.39-1.52-25-Z	Metric	1.52	25	1.02	5.41	6.60	HRB 80 or less	5.39	1.73	2.75	Heat treated carbon steel	Zinc with clear chromate
TJST-5.39-2.29-2-Z	Metric	2.29	2	1.02	5.41	6.60	HRB 80 or less	5.39	2.49	3.51	Heat treated carbon steel	Zinc with clear chromate
TJST-5.39-2.29-4-Z	Metric	2.29	4	1.02	5.41	6.60	HRB 80 or less	5.39	2.49	3.51	Heat treated carbon steel	Zinc with clear chromate
TJST-5.39-2.29-6-Z	Metric	2.29	6	1.02	5.41	6.60	HRB 80 or less	5.39	2.49	3.51	Heat treated carbon steel	Zinc with clear chromate
TJST-5.39-2.29-8-Z	Metric	2.29	8	1.02	5.41	6.60	HRB 80 or less	5.39	2.49	3.51	Heat treated carbon steel	Zinc with clear chromate
TJST-5.39-2.29-10-Z	Metric	2.29	10	1.02	5.41	6.60	HRB 80 or less	5.39	2.49	3.51	Heat treated carbon steel	Zinc with clear chromate
TJST-5.39-2.29-12-Z	Metric	2.29	12	1.02	5.41	6.60	HRB 80 or less	5.39	2.49	3.51	Heat treated carbon steel	Zinc with clear chromate
TJST-5.39-2.29-14-Z	Metric	2.29	14	1.02	5.41	6.60	HRB 80 or less	5.39	2.49	3.51	Heat treated carbon steel	Zinc with clear chromate
TJST-5.39-2.29-16-Z	Metric	2.29	16	1.02	5.41	6.60	HRB 80 or less	5.39	2.49	3.51	Heat treated carbon steel	Zinc with clear chromate
TJST-5.39-2.29-18-Z	Metric	2.29	18	1.02	5.41	6.60	HRB 80 or less	5.39	2.49	3.51	Heat treated carbon steel	Zinc with clear chromate
TJST-5.39-2.29-20-Z	Metric	2.29	20	1.02	5.41	6.60	HRB 80 or less	5.39	2.49	3.51	Heat treated carbon steel	Zinc with clear chromate
TJST-5.39-2.29-22-Z	Metric	2.29	22	1.02	5.41	6.60	HRB 80 or less	5.39	2.49	3.51	Heat treated carbon steel	Zinc with clear chromate
TJST-5.39-2.29-25-Z	Metric	2.29	25	1.02	5.41	6.60	HRB 80 or less	5.39	2.49	3.51	Heat treated carbon steel	Zinc with clear chromate

TJ Self-Clinching Key-Loc™ Self-Clinching Standoffs
