TN Thru Hole Self-clinching Standoffs

Product PDF

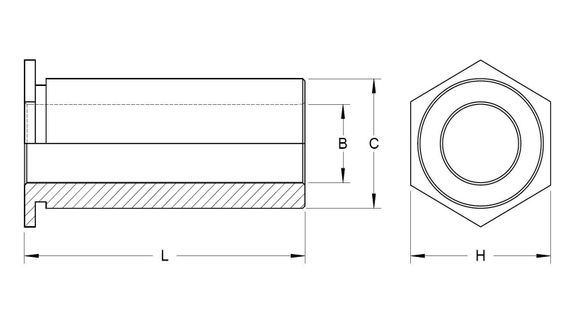

Part Description	Inch/Metric	Thru-Hole Dia. (B) (+.004/-.003in) (+0.10/-0.08mm)	Length (L) (+.002/-.005in) (+0.05/-0.13mm)	Min. Sheet Thickness	Hole size in sheet (+.003/-.000in) (+0.08/-0.00mm)	Min. dist. hole C/L to edge	For use in sheet hardness	Body Dia. (C) (+.000/-.005in) (+0.00/-0.13mm)	H Nom.	Material	Finish
TNS4-4116-.125-P	Inch	.116	.125	.040	.166	.23	HRB 88 or less	.165	.187	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-4116-.187-P	Inch	.116	.187	.040	.166	.23	HRB 88 or less	.165	.187	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-4116-.250-P	Inch	.116	.250	.040	.166	.23	HRB 88 or less	.165	.187	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-4116-.312-P	Inch	.116	.312	.040	.166	.23	HRB 88 or less	.165	.187	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-4116-.375-P	Inch	.116	.375	.040	.166	.23	HRB 88 or less	.165	.187	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-4116-.437-P	Inch	.116	.437	.040	.166	.23	HRB 88 or less	.165	.187	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-4116-.500-P	Inch	.116	.500	.040	.166	.23	HRB 88 or less	.165	.187	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-4116-.562-P	Inch	.116	.562	.040	.166	.23	HRB 88 or less	.165	.187	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-4116-.625-P	Inch	.116	.625	.040	.166	.23	HRB 88 or less	.165	.187	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-4116-.687-P	Inch	.116	.687	.040	.166	.23	HRB 88 or less	.165	.187	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-4116-.750-P	Inch	.116	.750	.040	.166	.23	HRB 88 or less	.165	.187	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-6116-.125-P	Inch	.116	.125	.040	.213	.27	HRB 88 or less	.212	.250	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-6116-.187-P	Inch	.116	.187	.040	.213	.27	HRB 88 or less	.212	.250	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-6116-.250-P	Inch	.116	.250	.040	.213	.27	HRB 88 or less	.212	.250	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-6116-.312-P	Inch	.116	.312	.040	.213	.27	HRB 88 or less	.212	.250	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-6116-.375-P	Inch	.116	.375	.040	.213	.27	HRB 88 or less	.212	.250	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-6116-.437-P	Inch	.116	.437	.040	.213	.27	HRB 88 or less	.212	.250	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-6116-.500-P	Inch	.116	.500	.040	.213	.27	HRB 88 or less	.212	.250	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-6116-.562-P	Inch	.116	.562	.040	.213	.27	HRB 88 or less	.212	.250	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-6116-.625-P	Inch	.116	.625	.040	.213	.27	HRB 88 or less	.212	.250	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-6116-.687-P	Inch	.116	.687	.040	.213	.27	HRB 88 or less	.212	.250	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-6116-.750-P	Inch	.116	.750	.040	.213	.27	HRB 88 or less	.212	.250	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-6143-.125-P	Inch	.143	.125	.040	.213	.27	HRB 88 or less	.212	.250	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-6143-.187-P	Inch	.143	.187	.040	.213	.27	HRB 88 or less	.212	.250	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-6143-.250-P	Inch	.143	.250	.040	.213	.27	HRB 88 or less	.212	.250	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-6143-.312-P	Inch	.143	.312	.040	.213	.27	HRB 88 or less	.212	.250	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-6143-.375-P	Inch	.143	.375	.040	.213	.27	HRB 88 or less	.212	.250	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-6143-.437-P	Inch	.143	.437	.040	.213	.27	HRB 88 or less	.212	.250	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-6143-.500-P	Inch	.143	.500	.040	.213	.27	HRB 88 or less	.212	.250	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-6143-.562-P	Inch	.143	.562	.040	.213	.27	HRB 88 or less	.212	.250	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-6143-.625-P	Inch	.143	.625	.040	.213	.27	HRB 88 or less	.212	.250	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-6143-.687-P	Inch	.143	.687	.040	.213	.27	HRB 88 or less	.212	.250	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-6143-.750-P	Inch	.143	.750	.040	.213	.27	HRB 88 or less	.212	.250	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8143-.125-P	Inch	.143	.125	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8143-.187-P	Inch	.143	.187	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8143-.250-P	Inch	.143	.250	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8143-.312-P	Inch	.143	.312	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8143-.375-P	Inch	.143	.375	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8143-.437-P	Inch	.143	.437	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8143-.500-P	Inch	.143	.500	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8143-.562-P	Inch	.143	.562	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8143-.625-P	Inch	.143	.625	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8143-.687-P	Inch	.143	.687	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8143-.750-P	Inch	.143	.750	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8169-.125-P	Inch	.169	.125	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8169-.187-P	Inch	.169	.187	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8169-.250-P	Inch	.169	.250	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8169-.312-P	Inch	.169	.312	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8169-.375-P	Inch	.169	.375	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8169-.437-P	Inch	.169	.437	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8169-.500-P	Inch	.169	.500	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8169-.562-P	Inch	.169	.562	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8169-.625-P	Inch	.169	.625	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8169-.687-P	Inch	.169	.687	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8169-.750-P	Inch	.169	.750	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8194-.125-P	Inch	.194	.125	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8194-.187-P	Inch	.194	.187	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8194-.250-P	Inch	.194	.250	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8194-.312-P	Inch	.194	.312	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8194-.375-P	Inch	.194	.375	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8194-.437-P	Inch	.194	.437	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8194-.500-P	Inch	.194	.500	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8194-.562-P	Inch	.194	.562	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8194-.625-P	Inch	.194	.625	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8194-.687-P	Inch	.194	.687	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-8194-.750-P	Inch	.194	.750	.050	.281	.31	HRB 88 or less	.280	.312	400-Series heat treated stainless steel	Passivated and/or tested
TNST-4116-.125-Z	Inch	.116	.125	.040	.166	.23	HRB 80 or less	.165	.187	Heat treated carbon steel	Zinc with clear chromate
TNST-4116-.187-Z	Inch	.116	.187	.040	.166	.23	HRB 80 or less	.165	.187	Heat treated carbon steel	Zinc with clear chromate
TNST-4116-.250-Z	Inch	.116	.250	.040	.166	.23	HRB 80 or less	.165	.187	Heat treated carbon steel	Zinc with clear chromate
TNST-4116-.312-Z	Inch	.116	.312	.040	.166	.23	HRB 80 or less	.165	.187	Heat treated carbon steel	Zinc with clear chromate
TNST-4116-.375-Z	Inch	.116	.375	.040	.166	.23	HRB 80 or less	.165	.187	Heat treated carbon steel	Zinc with clear chromate
TNST-4116-.437-Z	Inch	.116	.437	.040	.166	.23	HRB 80 or less	.165	.187	Heat treated carbon steel	Zinc with clear chromate
TNST-4116-.500-Z	Inch	.116	.500	.040	.166	.23	HRB 80 or less	.165	.187	Heat treated carbon steel	Zinc with clear chromate
TNST-4116-.562-Z	Inch	.116	.562	.040	.166	.23	HRB 80 or less	.165	.187	Heat treated carbon steel	Zinc with clear chromate
TNST-4116-.625-Z	Inch	.116	.625	.040	.166	.23	HRB 80 or less	.165	.187	Heat treated carbon steel	Zinc with clear chromate
TNST-4116-.687-Z	Inch	.116	.687	.040	.166	.23	HRB 80 or less	.165	.187	Heat treated carbon steel	Zinc with clear chromate
TNST-4116-.750-Z	Inch	.116	.750	.040	.166	.23	HRB 80 or less	.165	.187	Heat treated carbon steel	Zinc with clear chromate
TNST-6116-.125-Z	Inch	.116	.125	.040	.213	.27	HRB 80 or less	.212	.250	Heat treated carbon steel	Zinc with clear chromate
TNST-6116-.187-Z	Inch	.116	.187	.040	.213	.27	HRB 80 or less	.212	.250	Heat treated carbon steel	Zinc with clear chromate
TNST-6116-.250-Z	Inch	.116	.250	.040	.213	.27	HRB 80 or less	.212	.250	Heat treated carbon steel	Zinc with clear chromate
TNST-6116-.312-Z	Inch	.116	.312	.040	.213	.27	HRB 80 or less	.212	.250	Heat treated carbon steel	Zinc with clear chromate
TNST-6116-.375-Z	Inch	.116	.375	.040	.213	.27	HRB 80 or less	.212	.250	Heat treated carbon steel	Zinc with clear chromate
TNST-6116-.437-Z	Inch	.116	.437	.040	.213	.27	HRB 80 or less	.212	.250	Heat treated carbon steel	Zinc with clear chromate
TNST-6116-.500-Z	Inch	.116	.500	.040	.213	.27	HRB 80 or less	.212	.250	Heat treated carbon steel	Zinc with clear chromate
TNST-6116-.562-Z	Inch	.116	.562	.040	.213	.27	HRB 80 or less	.212	.250	Heat treated carbon steel	Zinc with clear chromate
TNST-6116-.625-Z	Inch	.116	.625	.040	.213	.27	HRB 80 or less	.212	.250	Heat treated carbon steel	Zinc with clear chromate
TNST-6116-.687-Z	Inch	.116	.687	.040	.213	.27	HRB 80 or less	.212	.250	Heat treated carbon steel	Zinc with clear chromate
TNST-6116-.750-Z	Inch	.116	.750	.040	.213	.27	HRB 80 or less	.212	.250	Heat treated carbon steel	Zinc with clear chromate
TNST-6143-.125-Z	Inch	.143	.125	.040	.213	.27	HRB 80 or less	.212	.250	Heat treated carbon steel	Zinc with clear chromate
TNST-6143-.187-Z	Inch	.143	.187	.040	.213	.27	HRB 80 or less	.212	.250	Heat treated carbon steel	Zinc with clear chromate
TNST-6143-.250-Z	Inch	.143	.250	.040	.213	.27	HRB 80 or less	.212	.250	Heat treated carbon steel	Zinc with clear chromate
TNST-6143-.312-Z	Inch	.143	.312	.040	.213	.27	HRB 80 or less	.212	.250	Heat treated carbon steel	Zinc with clear chromate
TNST-6143-.375-Z	Inch	.143	.375	.040	.213	.27	HRB 80 or less	.212	.250	Heat treated carbon steel	Zinc with clear chromate
TNST-6143-.437-Z	Inch	.143	.437	.040	.213	.27	HRB 80 or less	.212	.250	Heat treated carbon steel	Zinc with clear chromate
TNST-6143-.500-Z	Inch	.143	.500	.040	.213	.27	HRB 80 or less	.212	.250	Heat treated carbon steel	Zinc with clear chromate
TNST-6143-.562-Z	Inch	.143	.562	.040	.213	.27	HRB 80 or less	.212	.250	Heat treated carbon steel	Zinc with clear chromate
TNST-6143-.625-Z	Inch	.143	.625	.040	.213	.27	HRB 80 or less	.212	.250	Heat treated carbon steel	Zinc with clear chromate
TNST-6143-.687-Z	Inch	.143	.687	.040	.213	.27	HRB 80 or less	.212	.250	Heat treated carbon steel	Zinc with clear chromate
TNST-6143-.750-Z	Inch	.143	.750	.040	.213	.27	HRB 80 or less	.212	.250	Heat treated carbon steel	Zinc with clear chromate
TNST-8143-.125-Z	Inch	.143	.125	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8143-.187-Z	Inch	.143	.187	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8143-.250-Z	Inch	.143	.250	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8143-.312-Z	Inch	.143	.312	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8143-.375-Z	Inch	.143	.375	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8143-.437-Z	Inch	.143	.437	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8143-.500-Z	Inch	.143	.500	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8143-.562-Z	Inch	.143	.562	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8143-.625-Z	Inch	.143	.625	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8143-.687-Z	Inch	.143	.687	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8143-.750-Z	Inch	.143	.750	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8169-.125-Z	Inch	.169	.125	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8169-.187-Z	Inch	.169	.187	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8169-.250-Z	Inch	.169	.250	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8169-.312-Z	Inch	.169	.312	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8169-.375-Z	Inch	.169	.375	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8169-.437-Z	Inch	.169	.437	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8169-.500-Z	Inch	.169	.500	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8169-.562-Z	Inch	.169	.562	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8169-.625-Z	Inch	.169	.625	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8169-.687-Z	Inch	.169	.687	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8169-.750-Z	Inch	.169	.750	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8194-.125-Z	Inch	.194	.125	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8194-.187-Z	Inch	.194	.187	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8194-.250-Z	Inch	.194	.250	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8194-.312-Z	Inch	.194	.312	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8194-.375-Z	Inch	.194	.375	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8194-.437-Z	Inch	.194	.437	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8194-.500-Z	Inch	.194	.500	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8194-.562-Z	Inch	.194	.562	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8194-.625-Z	Inch	.194	.625	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8194-.687-Z	Inch	.194	.687	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNST-8194-.750-Z	Inch	.194	.750	.050	.281	.31	HRB 80 or less	.280	.312	Heat treated carbon steel	Zinc with clear chromate
TNSS-4116-.125-P	Inch	.116	.125	.040	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TNSS-4116-.187-P	Inch	.116	.187	.040	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TNSS-4116-.250-P	Inch	.116	.250	.040	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TNSS-4116-.312-P	Inch	.116	.312	.040	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TNSS-4116-.375-P	Inch	.116	.375	.040	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TNSS-4116-.437-P	Inch	.116	.437	.040	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TNSS-4116-.500-P	Inch	.116	.500	.040	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TNSS-4116-.562-P	Inch	.116	.562	.040	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TNSS-4116-.625-P	Inch	.116	.625	.040	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TNSS-4116-.687-P	Inch	.116	.687	.040	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TNSS-4116-.750-P	Inch	.116	.750	.040	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TNSS-6116-.125-P	Inch	.116	.125	.040	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TNSS-6116-.187-P	Inch	.116	.187	.040	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TNSS-6116-.250-P	Inch	.116	.250	.040	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TNSS-6116-.312-P	Inch	.116	.312	.040	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TNSS-6116-.375-P	Inch	.116	.375	.040	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TNSS-6116-.437-P	Inch	.116	.437	.040	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TNSS-6116-.500-P	Inch	.116	.500	.040	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TNSS-6116-.562-P	Inch	.116	.562	.040	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TNSS-6116-.625-P	Inch	.116	.625	.040	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TNSS-6116-.687-P	Inch	.116	.687	.040	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TNSS-6116-.750-P	Inch	.116	.750	.040	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TNSS-6143-.125-P	Inch	.143	.125	.040	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TNSS-6143-.187-P	Inch	.143	.187	.040	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TNSS-6143-.250-P	Inch	.143	.250	.040	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TNSS-6143-.312-P	Inch	.143	.312	.040	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TNSS-6143-.375-P	Inch	.143	.375	.040	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TNSS-6143-.437-P	Inch	.143	.437	.040	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TNSS-6143-.500-P	Inch	.143	.500	.040	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TNSS-6143-.562-P	Inch	.143	.562	.040	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TNSS-6143-.625-P	Inch	.143	.625	.040	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TNSS-6143-.687-P	Inch	.143	.687	.040	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TNSS-6143-.750-P	Inch	.143	.750	.040	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TNSS-8143-.125-P	Inch	.143	.125	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8143-.187-P	Inch	.143	.187	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8143-.250-P	Inch	.143	.250	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8143-.312-P	Inch	.143	.312	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8143-.375-P	Inch	.143	.375	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8143-.437-P	Inch	.143	.437	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8143-.500-P	Inch	.143	.500	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8143-.562-P	Inch	.143	.562	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8143-.625-P	Inch	.143	.625	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8143-.687-P	Inch	.143	.687	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8143-.750-P	Inch	.143	.750	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8169-.125-P	Inch	.169	.125	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8169-.187-P	Inch	.169	.187	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8169-.250-P	Inch	.169	.250	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8169-.312-P	Inch	.169	.312	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8169-.375-P	Inch	.169	.375	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8169-.437-P	Inch	.169	.437	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8169-.500-P	Inch	.169	.500	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8169-.562-P	Inch	.169	.562	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8169-.625-P	Inch	.169	.625	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8169-.687-P	Inch	.169	.687	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8169-.750-P	Inch	.169	.750	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8194-.125-P	Inch	.194	.125	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8194-.187-P	Inch	.194	.187	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8194-.250-P	Inch	.194	.250	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8194-.312-P	Inch	.194	.312	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8194-.375-P	Inch	.194	.375	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8194-.437-P	Inch	.194	.437	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8194-.500-P	Inch	.194	.500	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8194-.562-P	Inch	.194	.562	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8194-.625-P	Inch	.194	.625	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8194-.687-P	Inch	.194	.687	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNSS-8194-.750-P	Inch	.194	.750	.050	.281	.31	HRB 70 or less	.280	.312	300-Series stainless steel	Passivated and/or tested
TNAL-4116-.125-PLN	Inch	.116	.125	.040	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TNAL-4116-.187-PLN	Inch	.116	.187	.040	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TNAL-4116-.250-PLN	Inch	.116	.250	.040	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TNAL-4116-.312-PLN	Inch	.116	.312	.040	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TNAL-4116-.375-PLN	Inch	.116	.375	.040	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TNAL-4116-.437-PLN	Inch	.116	.437	.040	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TNAL-4116-.500-PLN	Inch	.116	.500	.040	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TNAL-4116-.562-PLN	Inch	.116	.562	.040	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TNAL-4116-.625-PLN	Inch	.116	.625	.040	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TNAL-4116-.687-PLN	Inch	.116	.687	.040	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TNAL-4116-.750-PLN	Inch	.116	.750	.040	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TNAL-6116-.125-PLN	Inch	.116	.125	.040	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TNAL-6116-.187-PLN	Inch	.116	.187	.040	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TNAL-6116-.250-PLN	Inch	.116	.250	.040	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TNAL-6116-.312-PLN	Inch	.116	.312	.040	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TNAL-6116-.375-PLN	Inch	.116	.375	.040	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TNAL-6116-.437-PLN	Inch	.116	.437	.040	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TNAL-6116-.500-PLN	Inch	.116	.500	.040	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TNAL-6116-.562-PLN	Inch	.116	.562	.040	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TNAL-6116-.625-PLN	Inch	.116	.625	.040	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TNAL-6116-.687-PLN	Inch	.116	.687	.040	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TNAL-6116-.750-PLN	Inch	.116	.750	.040	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TNAL-6143-.125-PLN	Inch	.143	.125	.040	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TNAL-6143-.187-PLN	Inch	.143	.187	.040	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TNAL-6143-.250-PLN	Inch	.143	.250	.040	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TNAL-6143-.312-PLN	Inch	.143	.312	.040	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TNAL-6143-.375-PLN	Inch	.143	.375	.040	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TNAL-6143-.437-PLN	Inch	.143	.437	.040	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TNAL-6143-.500-PLN	Inch	.143	.500	.040	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TNAL-6143-.562-PLN	Inch	.143	.562	.040	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TNAL-6143-.625-PLN	Inch	.143	.625	.040	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TNAL-6143-.687-PLN	Inch	.143	.687	.040	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TNAL-6143-.750-PLN	Inch	.143	.750	.040	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TNAL-8143-.125-PLN	Inch	.143	.125	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8143-.187-PLN	Inch	.143	.187	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8143-.250-PLN	Inch	.143	.250	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8143-.312-PLN	Inch	.143	.312	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8143-.375-PLN	Inch	.143	.375	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8143-.437-PLN	Inch	.143	.437	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8143-.500-PLN	Inch	.143	.500	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8143-.562-PLN	Inch	.143	.562	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8143-.625-PLN	Inch	.143	.625	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8143-.687-PLN	Inch	.143	.687	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8143-.750-PLN	Inch	.143	.750	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8169-.125-PLN	Inch	.169	.125	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8169-.187-PLN	Inch	.169	.187	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8169-.250-PLN	Inch	.169	.250	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8169-.312-PLN	Inch	.169	.312	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8169-.375-PLN	Inch	.169	.375	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8169-.437-PLN	Inch	.169	.437	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8169-.500-PLN	Inch	.169	.500	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8169-.562-PLN	Inch	.169	.562	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8169-.625-PLN	Inch	.169	.625	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8169-.687-PLN	Inch	.169	.687	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8169-.750-PLN	Inch	.169	.750	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8194-.125-PLN	Inch	.194	.125	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8194-.187-PLN	Inch	.194	.187	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8194-.250-PLN	Inch	.194	.250	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8194-.312-PLN	Inch	.194	.312	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8194-.375-PLN	Inch	.194	.375	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8194-.437-PLN	Inch	.194	.437	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8194-.500-PLN	Inch	.194	.500	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8194-.562-PLN	Inch	.194	.562	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8194-.625-PLN	Inch	.194	.625	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8194-.687-PLN	Inch	.194	.687	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNAL-8194-.750-PLN	Inch	.194	.750	.050	.281	.31	HRB 50 or less	.280	.312	Aluminum	Clean and dry
TNS4-43.1-3-P	Metric	3.1	3	1.00	4.22	6.0	HRB 88 or less	4.20	4.8	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-43.1-4-P	Metric	3.1	4	1.00	4.22	6.0	HRB 88 or less	4.20	4.8	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-43.1-6-P	Metric	3.1	6	1.00	4.22	6.0	HRB 88 or less	4.20	4.8	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-43.1-8-P	Metric	3.1	8	1.00	4.22	6.0	HRB 88 or less	4.20	4.8	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-43.1-10-P	Metric	3.1	10	1.00	4.22	6.0	HRB 88 or less	4.20	4.8	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-43.1-12-P	Metric	3.1	12	1.00	4.22	6.0	HRB 88 or less	4.20	4.8	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-43.1-14-P	Metric	3.1	14	1.00	4.22	6.0	HRB 88 or less	4.20	4.8	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-43.1-16-P	Metric	3.1	16	1.00	4.22	6.0	HRB 88 or less	4.20	4.8	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-43.1-18-P	Metric	3.1	18	1.00	4.22	6.0	HRB 88 or less	4.20	4.8	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-43.1-20-P	Metric	3.1	20	1.00	4.22	6.0	HRB 88 or less	4.20	4.8	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-63.1-3-P	Metric	3.1	3	1.00	5.41	6.8	HRB 88 or less	5.39	6.4	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-63.1-4-P	Metric	3.1	4	1.00	5.41	6.8	HRB 88 or less	5.39	6.4	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-63.1-6-P	Metric	3.1	6	1.00	5.41	6.8	HRB 88 or less	5.39	6.4	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-63.1-8-P	Metric	3.1	8	1.00	5.41	6.8	HRB 88 or less	5.39	6.4	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-63.1-10-P	Metric	3.1	10	1.00	5.41	6.8	HRB 88 or less	5.39	6.4	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-63.1-12-P	Metric	3.1	12	1.00	5.41	6.8	HRB 88 or less	5.39	6.4	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-63.1-14-P	Metric	3.1	14	1.00	5.41	6.8	HRB 88 or less	5.39	6.4	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-63.1-16-P	Metric	3.1	16	1.00	5.41	6.8	HRB 88 or less	5.39	6.4	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-63.1-18-P	Metric	3.1	18	1.00	5.41	6.8	HRB 88 or less	5.39	6.4	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-63.1-20-P	Metric	3.1	20	1.00	5.41	6.8	HRB 88 or less	5.39	6.4	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-63.6-3-P	Metric	3.6	3	1.00	5.41	6.8	HRB 88 or less	5.39	6.4	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-63.6-4-P	Metric	3.6	4	1.00	5.41	6.8	HRB 88 or less	5.39	6.4	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-63.6-6-P	Metric	3.6	6	1.00	5.41	6.8	HRB 88 or less	5.39	6.4	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-63.6-8-P	Metric	3.6	8	1.00	5.41	6.8	HRB 88 or less	5.39	6.4	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-63.6-10-P	Metric	3.6	10	1.00	5.41	6.8	HRB 88 or less	5.39	6.4	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-63.6-12-P	Metric	3.6	12	1.00	5.41	6.8	HRB 88 or less	5.39	6.4	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-63.6-14-P	Metric	3.6	14	1.00	5.41	6.8	HRB 88 or less	5.39	6.4	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-63.6-16-P	Metric	3.6	16	1.00	5.41	6.8	HRB 88 or less	5.39	6.4	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-63.6-18-P	Metric	3.6	18	1.00	5.41	6.8	HRB 88 or less	5.39	6.4	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-63.6-20-P	Metric	3.6	20	1.00	5.41	6.8	HRB 88 or less	5.39	6.4	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-83.6-3-P	Metric	3.6	3	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-83.6-4-P	Metric	3.6	4	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-83.6-6-P	Metric	3.6	6	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-83.6-8-P	Metric	3.6	8	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-83.6-10-P	Metric	3.6	10	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-83.6-12-P	Metric	3.6	12	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-83.6-14-P	Metric	3.6	14	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-83.6-16-P	Metric	3.6	16	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-83.6-18-P	Metric	3.6	18	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-83.6-20-P	Metric	3.6	20	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-84.1-3-P	Metric	4.1	3	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-84.1-4-P	Metric	4.1	4	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-84.1-6-P	Metric	4.1	6	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-84.1-8-P	Metric	4.1	8	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-84.1-10-P	Metric	4.1	10	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-84.1-12-P	Metric	4.1	12	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-84.1-14-P	Metric	4.1	14	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-84.1-16-P	Metric	4.1	16	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-84.1-18-P	Metric	4.1	18	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-84.1-20-P	Metric	4.1	20	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-85.1-3-P	Metric	5.1	3	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-85.1-4-P	Metric	5.1	4	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-85.1-6-P	Metric	5.1	6	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-85.1-8-P	Metric	5.1	8	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-85.1-10-P	Metric	5.1	10	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-85.1-12-P	Metric	5.1	12	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-85.1-14-P	Metric	5.1	14	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-85.1-16-P	Metric	5.1	16	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-85.1-18-P	Metric	5.1	18	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNS4-85.1-20-P	Metric	5.1	20	1.27	7.14	8.0	HRB 88 or less	7.12	7.9	400-Series heat treated stainless steel	Passivated and/or tested
TNST-43.1-3-Z	Metric	3.1	3	1.00	4.22	6.0	HRB 80 or less	4.20	4.8	Heat treated carbon steel	Zinc with clear chromate
TNST-43.1-4-Z	Metric	3.1	4	1.00	4.22	6.0	HRB 80 or less	4.20	4.8	Heat treated carbon steel	Zinc with clear chromate
TNST-43.1-6-Z	Metric	3.1	6	1.00	4.22	6.0	HRB 80 or less	4.20	4.8	Heat treated carbon steel	Zinc with clear chromate
TNST-43.1-8-Z	Metric	3.1	8	1.00	4.22	6.0	HRB 80 or less	4.20	4.8	Heat treated carbon steel	Zinc with clear chromate
TNST-43.1-10-Z	Metric	3.1	10	1.00	4.22	6.0	HRB 80 or less	4.20	4.8	Heat treated carbon steel	Zinc with clear chromate
TNST-43.1-12-Z	Metric	3.1	12	1.00	4.22	6.0	HRB 80 or less	4.20	4.8	Heat treated carbon steel	Zinc with clear chromate
TNST-43.1-14-Z	Metric	3.1	14	1.00	4.22	6.0	HRB 80 or less	4.20	4.8	Heat treated carbon steel	Zinc with clear chromate
TNST-43.1-16-Z	Metric	3.1	16	1.00	4.22	6.0	HRB 80 or less	4.20	4.8	Heat treated carbon steel	Zinc with clear chromate
TNST-43.1-18-Z	Metric	3.1	18	1.00	4.22	6.0	HRB 80 or less	4.20	4.8	Heat treated carbon steel	Zinc with clear chromate
TNST-43.1-20-Z	Metric	3.1	20	1.00	4.22	6.0	HRB 80 or less	4.20	4.8	Heat treated carbon steel	Zinc with clear chromate
TNST-63.1-3-Z	Metric	3.1	3	1.00	5.41	6.8	HRB 80 or less	5.39	6.4	Heat treated carbon steel	Zinc with clear chromate
TNST-63.1-4-Z	Metric	3.1	4	1.00	5.41	6.8	HRB 80 or less	5.39	6.4	Heat treated carbon steel	Zinc with clear chromate
TNST-63.1-6-Z	Metric	3.1	6	1.00	5.41	6.8	HRB 80 or less	5.39	6.4	Heat treated carbon steel	Zinc with clear chromate
TNST-63.1-8-Z	Metric	3.1	8	1.00	5.41	6.8	HRB 80 or less	5.39	6.4	Heat treated carbon steel	Zinc with clear chromate
TNST-63.1-10-Z	Metric	3.1	10	1.00	5.41	6.8	HRB 80 or less	5.39	6.4	Heat treated carbon steel	Zinc with clear chromate
TNST-63.1-12-Z	Metric	3.1	12	1.00	5.41	6.8	HRB 80 or less	5.39	6.4	Heat treated carbon steel	Zinc with clear chromate
TNST-63.1-14-Z	Metric	3.1	14	1.00	5.41	6.8	HRB 80 or less	5.39	6.4	Heat treated carbon steel	Zinc with clear chromate
TNST-63.1-16-Z	Metric	3.1	16	1.00	5.41	6.8	HRB 80 or less	5.39	6.4	Heat treated carbon steel	Zinc with clear chromate
TNST-63.1-18-Z	Metric	3.1	18	1.00	5.41	6.8	HRB 80 or less	5.39	6.4	Heat treated carbon steel	Zinc with clear chromate
TNST-63.1-20-Z	Metric	3.1	20	1.00	5.41	6.8	HRB 80 or less	5.39	6.4	Heat treated carbon steel	Zinc with clear chromate
TNST-63.6-3-Z	Metric	3.6	3	1.00	5.41	6.8	HRB 80 or less	5.39	6.4	Heat treated carbon steel	Zinc with clear chromate
TNST-63.6-4-Z	Metric	3.6	4	1.00	5.41	6.8	HRB 80 or less	5.39	6.4	Heat treated carbon steel	Zinc with clear chromate
TNST-63.6-6-Z	Metric	3.6	6	1.00	5.41	6.8	HRB 80 or less	5.39	6.4	Heat treated carbon steel	Zinc with clear chromate
TNST-63.6-8-Z	Metric	3.6	8	1.00	5.41	6.8	HRB 80 or less	5.39	6.4	Heat treated carbon steel	Zinc with clear chromate
TNST-63.6-10-Z	Metric	3.6	10	1.00	5.41	6.8	HRB 80 or less	5.39	6.4	Heat treated carbon steel	Zinc with clear chromate
TNST-63.6-12-Z	Metric	3.6	12	1.00	5.41	6.8	HRB 80 or less	5.39	6.4	Heat treated carbon steel	Zinc with clear chromate
TNST-63.6-14-Z	Metric	3.6	14	1.00	5.41	6.8	HRB 80 or less	5.39	6.4	Heat treated carbon steel	Zinc with clear chromate
TNST-63.6-16-Z	Metric	3.6	16	1.00	5.41	6.8	HRB 80 or less	5.39	6.4	Heat treated carbon steel	Zinc with clear chromate
TNST-63.6-18-Z	Metric	3.6	18	1.00	5.41	6.8	HRB 80 or less	5.39	6.4	Heat treated carbon steel	Zinc with clear chromate
TNST-63.6-20-Z	Metric	3.6	20	1.00	5.41	6.8	HRB 80 or less	5.39	6.4	Heat treated carbon steel	Zinc with clear chromate
TNST-83.6-3-Z	Metric	3.6	3	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-83.6-4-Z	Metric	3.6	4	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-83.6-6-Z	Metric	3.6	6	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-83.6-8-Z	Metric	3.6	8	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-83.6-10-Z	Metric	3.6	10	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-83.6-12-Z	Metric	3.6	12	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-83.6-14-Z	Metric	3.6	14	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-83.6-16-Z	Metric	3.6	16	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-83.6-18-Z	Metric	3.6	18	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-83.6-20-Z	Metric	3.6	20	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-84.1-3-Z	Metric	4.1	3	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-84.1-4-Z	Metric	4.1	4	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-84.1-6-Z	Metric	4.1	6	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-84.1-8-Z	Metric	4.1	8	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-84.1-10-Z	Metric	4.1	10	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-84.1-12-Z	Metric	4.1	12	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-84.1-14-Z	Metric	4.1	14	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-84.1-16-Z	Metric	4.1	16	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-84.1-18-Z	Metric	4.1	18	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-84.1-20-Z	Metric	4.1	20	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-85.1-3-Z	Metric	5.1	3	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-85.1-4-Z	Metric	5.1	4	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-85.1-6-Z	Metric	5.1	6	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-85.1-8-Z	Metric	5.1	8	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-85.1-10-Z	Metric	5.1	10	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-85.1-12-Z	Metric	5.1	12	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-85.1-14-Z	Metric	5.1	14	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-85.1-16-Z	Metric	5.1	16	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-85.1-18-Z	Metric	5.1	18	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNST-85.1-20-Z	Metric	5.1	20	1.27	7.14	8.0	HRB 80 or less	7.12	7.9	Heat treated carbon steel	Zinc with clear chromate
TNSS-43.1-3-P	Metric	3.1	3	1.00	4.22	6.0	HRB 70 or less	4.20	4.8	300-Series stainless steel	Passivated and/or tested
TNSS-43.1-4-P	Metric	3.1	4	1.00	4.22	6.0	HRB 70 or less	4.20	4.8	300-Series stainless steel	Passivated and/or tested
TNSS-43.1-6-P	Metric	3.1	6	1.00	4.22	6.0	HRB 70 or less	4.20	4.8	300-Series stainless steel	Passivated and/or tested
TNSS-43.1-8-P	Metric	3.1	8	1.00	4.22	6.0	HRB 70 or less	4.20	4.8	300-Series stainless steel	Passivated and/or tested
TNSS-43.1-10-P	Metric	3.1	10	1.00	4.22	6.0	HRB 70 or less	4.20	4.8	300-Series stainless steel	Passivated and/or tested
TNSS-43.1-12-P	Metric	3.1	12	1.00	4.22	6.0	HRB 70 or less	4.20	4.8	300-Series stainless steel	Passivated and/or tested
TNSS-43.1-14-P	Metric	3.1	14	1.00	4.22	6.0	HRB 70 or less	4.20	4.8	300-Series stainless steel	Passivated and/or tested
TNSS-43.1-16-P	Metric	3.1	16	1.00	4.22	6.0	HRB 70 or less	4.20	4.8	300-Series stainless steel	Passivated and/or tested
TNSS-43.1-18-P	Metric	3.1	18	1.00	4.22	6.0	HRB 70 or less	4.20	4.8	300-Series stainless steel	Passivated and/or tested
TNSS-43.1-20-P	Metric	3.1	20	1.00	4.22	6.0	HRB 70 or less	4.20	4.8	300-Series stainless steel	Passivated and/or tested
TNSS-63.1-3-P	Metric	3.1	3	1.00	5.41	6.8	HRB 70 or less	5.39	6.4	300-Series stainless steel	Passivated and/or tested
TNSS-63.1-4-P	Metric	3.1	4	1.00	5.41	6.8	HRB 70 or less	5.39	6.4	300-Series stainless steel	Passivated and/or tested
TNSS-63.1-6-P	Metric	3.1	6	1.00	5.41	6.8	HRB 70 or less	5.39	6.4	300-Series stainless steel	Passivated and/or tested
TNSS-63.1-8-P	Metric	3.1	8	1.00	5.41	6.8	HRB 70 or less	5.39	6.4	300-Series stainless steel	Passivated and/or tested
TNSS-63.1-10-P	Metric	3.1	10	1.00	5.41	6.8	HRB 70 or less	5.39	6.4	300-Series stainless steel	Passivated and/or tested
TNSS-63.1-12-P	Metric	3.1	12	1.00	5.41	6.8	HRB 70 or less	5.39	6.4	300-Series stainless steel	Passivated and/or tested
TNSS-63.1-14-P	Metric	3.1	14	1.00	5.41	6.8	HRB 70 or less	5.39	6.4	300-Series stainless steel	Passivated and/or tested
TNSS-63.1-16-P	Metric	3.1	16	1.00	5.41	6.8	HRB 70 or less	5.39	6.4	300-Series stainless steel	Passivated and/or tested
TNSS-63.1-18-P	Metric	3.1	18	1.00	5.41	6.8	HRB 70 or less	5.39	6.4	300-Series stainless steel	Passivated and/or tested
TNSS-63.1-20-P	Metric	3.1	20	1.00	5.41	6.8	HRB 70 or less	5.39	6.4	300-Series stainless steel	Passivated and/or tested
TNSS-63.6-3-P	Metric	3.6	3	1.00	5.41	6.8	HRB 70 or less	5.39	6.4	300-Series stainless steel	Passivated and/or tested
TNSS-63.6-4-P	Metric	3.6	4	1.00	5.41	6.8	HRB 70 or less	5.39	6.4	300-Series stainless steel	Passivated and/or tested
TNSS-63.6-6-P	Metric	3.6	6	1.00	5.41	6.8	HRB 70 or less	5.39	6.4	300-Series stainless steel	Passivated and/or tested
TNSS-63.6-8-P	Metric	3.6	8	1.00	5.41	6.8	HRB 70 or less	5.39	6.4	300-Series stainless steel	Passivated and/or tested
TNSS-63.6-10-P	Metric	3.6	10	1.00	5.41	6.8	HRB 70 or less	5.39	6.4	300-Series stainless steel	Passivated and/or tested
TNSS-63.6-12-P	Metric	3.6	12	1.00	5.41	6.8	HRB 70 or less	5.39	6.4	300-Series stainless steel	Passivated and/or tested
TNSS-63.6-14-P	Metric	3.6	14	1.00	5.41	6.8	HRB 70 or less	5.39	6.4	300-Series stainless steel	Passivated and/or tested
TNSS-63.6-16-P	Metric	3.6	16	1.00	5.41	6.8	HRB 70 or less	5.39	6.4	300-Series stainless steel	Passivated and/or tested
TNSS-63.6-18-P	Metric	3.6	18	1.00	5.41	6.8	HRB 70 or less	5.39	6.4	300-Series stainless steel	Passivated and/or tested
TNSS-63.6-20-P	Metric	3.6	20	1.00	5.41	6.8	HRB 70 or less	5.39	6.4	300-Series stainless steel	Passivated and/or tested
TNSS-83.6-3-P	Metric	3.6	3	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-83.6-4-P	Metric	3.6	4	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-83.6-6-P	Metric	3.6	6	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-83.6-8-P	Metric	3.6	8	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-83.6-10-P	Metric	3.6	10	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-83.6-12-P	Metric	3.6	12	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-83.6-14-P	Metric	3.6	14	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-83.6-16-P	Metric	3.6	16	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-83.6-18-P	Metric	3.6	18	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-83.6-20-P	Metric	3.6	20	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-84.1-3-P	Metric	4.1	3	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-84.1-4-P	Metric	4.1	4	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-84.1-6-P	Metric	4.1	6	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-84.1-8-P	Metric	4.1	8	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-84.1-10-P	Metric	4.1	10	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-84.1-12-P	Metric	4.1	12	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-84.1-14-P	Metric	4.1	14	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-84.1-16-P	Metric	4.1	16	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-84.1-18-P	Metric	4.1	18	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-84.1-20-P	Metric	4.1	20	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-85.1-3-P	Metric	5.1	3	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-85.1-4-P	Metric	5.1	4	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-85.1-6-P	Metric	5.1	6	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-85.1-8-P	Metric	5.1	8	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-85.1-10-P	Metric	5.1	10	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-85.1-12-P	Metric	5.1	12	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-85.1-14-P	Metric	5.1	14	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-85.1-16-P	Metric	5.1	16	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-85.1-18-P	Metric	5.1	18	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNSS-85.1-20-P	Metric	5.1	20	1.27	7.14	8.0	HRB 70 or less	7.12	7.9	300-Series stainless steel	Passivated and/or tested
TNAL-43.1-3-PLN	Metric	3.1	3	1.00	4.22	6.0	HRB 50 or less	4.20	4.8	Aluminum	Clean and dry
TNAL-43.1-4-PLN	Metric	3.1	4	1.00	4.22	6.0	HRB 50 or less	4.20	4.8	Aluminum	Clean and dry
TNAL-43.1-6-PLN	Metric	3.1	6	1.00	4.22	6.0	HRB 50 or less	4.20	4.8	Aluminum	Clean and dry
TNAL-43.1-8-PLN	Metric	3.1	8	1.00	4.22	6.0	HRB 50 or less	4.20	4.8	Aluminum	Clean and dry
TNAL-43.1-10-PLN	Metric	3.1	10	1.00	4.22	6.0	HRB 50 or less	4.20	4.8	Aluminum	Clean and dry
TNAL-43.1-12-PLN	Metric	3.1	12	1.00	4.22	6.0	HRB 50 or less	4.20	4.8	Aluminum	Clean and dry
TNAL-43.1-14-PLN	Metric	3.1	14	1.00	4.22	6.0	HRB 50 or less	4.20	4.8	Aluminum	Clean and dry
TNAL-43.1-16-PLN	Metric	3.1	16	1.00	4.22	6.0	HRB 50 or less	4.20	4.8	Aluminum	Clean and dry
TNAL-43.1-18-PLN	Metric	3.1	18	1.00	4.22	6.0	HRB 50 or less	4.20	4.8	Aluminum	Clean and dry
TNAL-43.1-20-PLN	Metric	3.1	20	1.00	4.22	6.0	HRB 50 or less	4.20	4.8	Aluminum	Clean and dry
TNAL-63.1-3-PLN	Metric	3.1	3	1.00	5.41	6.8	HRB 50 or less	5.39	6.4	Aluminum	Clean and dry
TNAL-63.1-4-PLN	Metric	3.1	4	1.00	5.41	6.8	HRB 50 or less	5.39	6.4	Aluminum	Clean and dry
TNAL-63.1-6-PLN	Metric	3.1	6	1.00	5.41	6.8	HRB 50 or less	5.39	6.4	Aluminum	Clean and dry
TNAL-63.1-8-PLN	Metric	3.1	8	1.00	5.41	6.8	HRB 50 or less	5.39	6.4	Aluminum	Clean and dry
TNAL-63.1-10-PLN	Metric	3.1	10	1.00	5.41	6.8	HRB 50 or less	5.39	6.4	Aluminum	Clean and dry
TNAL-63.1-12-PLN	Metric	3.1	12	1.00	5.41	6.8	HRB 50 or less	5.39	6.4	Aluminum	Clean and dry
TNAL-63.1-14-PLN	Metric	3.1	14	1.00	5.41	6.8	HRB 50 or less	5.39	6.4	Aluminum	Clean and dry
TNAL-63.1-16-PLN	Metric	3.1	16	1.00	5.41	6.8	HRB 50 or less	5.39	6.4	Aluminum	Clean and dry
TNAL-63.1-18-PLN	Metric	3.1	18	1.00	5.41	6.8	HRB 50 or less	5.39	6.4	Aluminum	Clean and dry
TNAL-63.1-20-PLN	Metric	3.1	20	1.00	5.41	6.8	HRB 50 or less	5.39	6.4	Aluminum	Clean and dry
TNAL-63.6-3-PLN	Metric	3.6	3	1.00	5.41	6.8	HRB 50 or less	5.39	6.4	Aluminum	Clean and dry
TNAL-63.6-4-PLN	Metric	3.6	4	1.00	5.41	6.8	HRB 50 or less	5.39	6.4	Aluminum	Clean and dry
TNAL-63.6-6-PLN	Metric	3.6	6	1.00	5.41	6.8	HRB 50 or less	5.39	6.4	Aluminum	Clean and dry
TNAL-63.6-8-PLN	Metric	3.6	8	1.00	5.41	6.8	HRB 50 or less	5.39	6.4	Aluminum	Clean and dry
TNAL-63.6-10-PLN	Metric	3.6	10	1.00	5.41	6.8	HRB 50 or less	5.39	6.4	Aluminum	Clean and dry
TNAL-63.6-12-PLN	Metric	3.6	12	1.00	5.41	6.8	HRB 50 or less	5.39	6.4	Aluminum	Clean and dry
TNAL-63.6-14-PLN	Metric	3.6	14	1.00	5.41	6.8	HRB 50 or less	5.39	6.4	Aluminum	Clean and dry
TNAL-63.6-16-PLN	Metric	3.6	16	1.00	5.41	6.8	HRB 50 or less	5.39	6.4	Aluminum	Clean and dry
TNAL-63.6-18-PLN	Metric	3.6	18	1.00	5.41	6.8	HRB 50 or less	5.39	6.4	Aluminum	Clean and dry
TNAL-63.6-20-PLN	Metric	3.6	20	1.00	5.41	6.8	HRB 50 or less	5.39	6.4	Aluminum	Clean and dry
TNAL-83.6-3-PLN	Metric	3.6	3	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-83.6-4-PLN	Metric	3.6	4	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-83.6-6-PLN	Metric	3.6	6	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-83.6-8-PLN	Metric	3.6	8	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-83.6-10-PLN	Metric	3.6	10	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-83.6-12-PLN	Metric	3.6	12	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-83.6-14-PLN	Metric	3.6	14	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-83.6-16-PLN	Metric	3.6	16	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-83.6-18-PLN	Metric	3.6	18	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-83.6-20-PLN	Metric	3.6	20	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-84.1-3-PLN	Metric	4.1	3	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-84.1-4-PLN	Metric	4.1	4	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-84.1-6-PLN	Metric	4.1	6	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-84.1-8-PLN	Metric	4.1	8	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-84.1-10-PLN	Metric	4.1	10	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-84.1-12-PLN	Metric	4.1	12	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-84.1-14-PLN	Metric	4.1	14	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-84.1-16-PLN	Metric	4.1	16	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-84.1-18-PLN	Metric	4.1	18	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-84.1-20-PLN	Metric	4.1	20	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-85.1-3-PLN	Metric	5.1	3	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-85.1-4-PLN	Metric	5.1	4	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-85.1-6-PLN	Metric	5.1	6	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-85.1-8-PLN	Metric	5.1	8	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-85.1-10-PLN	Metric	5.1	10	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-85.1-12-PLN	Metric	5.1	12	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-85.1-14-PLN	Metric	5.1	14	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-85.1-16-PLN	Metric	5.1	16	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-85.1-18-PLN	Metric	5.1	18	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry
TNAL-85.1-20-PLN	Metric	5.1	20	1.27	7.14	8.0	HRB 50 or less	7.12	7.9	Aluminum	Clean and dry

TN Thru Hole Self-clinching Standoffs

Contact Us

Personal & Contact Info

Address

Attachments & Comments
