TP Self-clinching Standoffs For Thin Panels

Product PDF

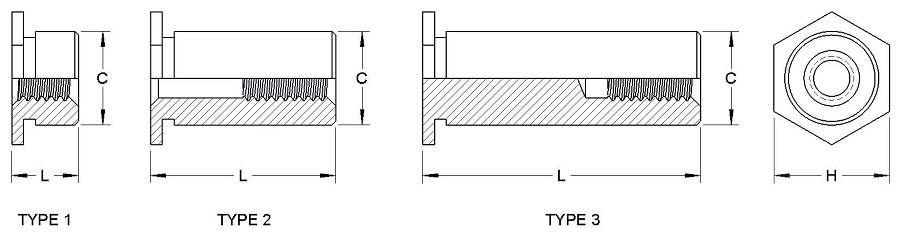

Part Description	Inch/Metric	Thread	Length (L) (±.003in) (±0.08mm)	Type	Min. Sheet Thickness	Hole size in sheet (+.003/-.000in) (+0.08/-0.00mm)	Min. dist. hole C/L to edge	For use in sheet hardness	Body Dia. (C) (+.000/-.005in) (+0.00/-0.13mm)	H Nom.	Material	Finish
TPSS-080-.090-P	Inch	0-80	.090	1	.025	.128	.19	HRB 70 or less	.127	.156	300-Series stainless steel	Passivated and/or tested
TPSS-080-.125-P	Inch	0-80	.125	1	.025	.128	.19	HRB 70 or less	.127	.156	300-Series stainless steel	Passivated and/or tested
TPSS-080-.187-P	Inch	0-80	.187	1	.025	.128	.19	HRB 70 or less	.127	.156	300-Series stainless steel	Passivated and/or tested
TPSS-080-.250-P	Inch	0-80	.250	2	.025	.128	.19	HRB 70 or less	.127	.156	300-Series stainless steel	Passivated and/or tested
TPSS-080-.312-P	Inch	0-80	.312	2	.025	.128	.19	HRB 70 or less	.127	.156	300-Series stainless steel	Passivated and/or tested
TPSS-080-.375-P	Inch	0-80	.375	3	.025	.128	.19	HRB 70 or less	.127	.156	300-Series stainless steel	Passivated and/or tested
TPSS-080-.437-P	Inch	0-80	.437	3	.025	.128	.19	HRB 70 or less	.127	.156	300-Series stainless steel	Passivated and/or tested
TPSS-080-.500-P	Inch	0-80	.500	3	.025	.128	.19	HRB 70 or less	.127	.156	300-Series stainless steel	Passivated and/or tested
TPSS-080-.562-P	Inch	0-80	.562	3	.025	.128	.19	HRB 70 or less	.127	.156	300-Series stainless steel	Passivated and/or tested
TPSS-080-.625-P	Inch	0-80	.625	3	.025	.128	.19	HRB 70 or less	.127	.156	300-Series stainless steel	Passivated and/or tested
TPSS-4080-.090-P	Inch	0-80	.090	1	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-4080-.125-P	Inch	0-80	.125	1	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-4080-.187-P	Inch	0-80	.187	1	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-4080-.250-P	Inch	0-80	.250	2	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-4080-.312-P	Inch	0-80	.312	2	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-4080-.375-P	Inch	0-80	.375	3	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-4080-.437-P	Inch	0-80	.437	3	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-4080-.500-P	Inch	0-80	.500	3	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-4080-.562-P	Inch	0-80	.562	3	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-4080-.625-P	Inch	0-80	.625	3	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-4080-.687-P	Inch	0-80	.687	3	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-4080-.750-P	Inch	0-80	.750	3	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPST-080-.090-Z	Inch	0-80	.090	1	.025	.128	.19	HRB 60 or less	.127	.156	Carbon steel	Zinc with clear chromate
TPST-080-.125-Z	Inch	0-80	.125	1	.025	.128	.19	HRB 60 or less	.127	.156	Carbon steel	Zinc with clear chromate
TPST-080-.187-Z	Inch	0-80	.187	1	.025	.128	.19	HRB 60 or less	.127	.156	Carbon steel	Zinc with clear chromate
TPST-080-.250-Z	Inch	0-80	.250	2	.025	.128	.19	HRB 60 or less	.127	.156	Carbon steel	Zinc with clear chromate
TPST-080-.312-Z	Inch	0-80	.312	2	.025	.128	.19	HRB 60 or less	.127	.156	Carbon steel	Zinc with clear chromate
TPST-080-.375-Z	Inch	0-80	.375	3	.025	.128	.19	HRB 60 or less	.127	.156	Carbon steel	Zinc with clear chromate
TPST-080-.437-Z	Inch	0-80	.437	3	.025	.128	.19	HRB 60 or less	.127	.156	Carbon steel	Zinc with clear chromate
TPST-080-.500-Z	Inch	0-80	.500	3	.025	.128	.19	HRB 60 or less	.127	.156	Carbon steel	Zinc with clear chromate
TPST-080-.562-Z	Inch	0-80	.562	3	.025	.128	.19	HRB 60 or less	.127	.156	Carbon steel	Zinc with clear chromate
TPST-080-.625-Z	Inch	0-80	.625	3	.025	.128	.19	HRB 60 or less	.127	.156	Carbon steel	Zinc with clear chromate
TPST-4080-.090-Z	Inch	0-80	.090	1	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-4080-.125-Z	Inch	0-80	.125	1	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-4080-.187-Z	Inch	0-80	.187	1	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-4080-.250-Z	Inch	0-80	.250	2	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-4080-.312-Z	Inch	0-80	.312	2	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-4080-.375-Z	Inch	0-80	.375	3	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-4080-.437-Z	Inch	0-80	.437	3	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-4080-.500-Z	Inch	0-80	.500	3	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-4080-.562-Z	Inch	0-80	.562	3	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-4080-.625-Z	Inch	0-80	.625	3	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-4080-.687-Z	Inch	0-80	.687	3	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-4080-.750-Z	Inch	0-80	.750	3	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPAL-080-.090-PLN	Inch	0-80	.090	1	.025	.128	.19	HRB 50 or less	.127	.156	Aluminum	Clean and dry
TPAL-080-.125-PLN	Inch	0-80	.125	1	.025	.128	.19	HRB 50 or less	.127	.156	Aluminum	Clean and dry
TPAL-080-.187-PLN	Inch	0-80	.187	1	.025	.128	.19	HRB 50 or less	.127	.156	Aluminum	Clean and dry
TPAL-080-.250-PLN	Inch	0-80	.250	2	.025	.128	.19	HRB 50 or less	.127	.156	Aluminum	Clean and dry
TPAL-080-.312-PLN	Inch	0-80	.312	2	.025	.128	.19	HRB 50 or less	.127	.156	Aluminum	Clean and dry
TPAL-080-.375-PLN	Inch	0-80	.375	3	.025	.128	.19	HRB 50 or less	.127	.156	Aluminum	Clean and dry
TPAL-080-.437-PLN	Inch	0-80	.437	3	.025	.128	.19	HRB 50 or less	.127	.156	Aluminum	Clean and dry
TPAL-080-.500-PLN	Inch	0-80	.500	3	.025	.128	.19	HRB 50 or less	.127	.156	Aluminum	Clean and dry
TPAL-080-.562-PLN	Inch	0-80	.562	3	.025	.128	.19	HRB 50 or less	.127	.156	Aluminum	Clean and dry
TPAL-080-.625-PLN	Inch	0-80	.625	3	.025	.128	.19	HRB 50 or less	.127	.156	Aluminum	Clean and dry
TPAL-4080-.090-PLN	Inch	0-80	.090	1	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-4080-.125-PLN	Inch	0-80	.125	1	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-4080-.187-PLN	Inch	0-80	.187	1	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-4080-.250-PLN	Inch	0-80	.250	2	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-4080-.312-PLN	Inch	0-80	.312	2	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-4080-.375-PLN	Inch	0-80	.375	3	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-4080-.437-PLN	Inch	0-80	.437	3	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-4080-.500-PLN	Inch	0-80	.500	3	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-4080-.562-PLN	Inch	0-80	.562	3	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-4080-.625-PLN	Inch	0-80	.625	3	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-4080-.687-PLN	Inch	0-80	.687	3	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-4080-.750-PLN	Inch	0-80	.750	3	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPSS-4256-.090-P	Inch	2-56	.090	1	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-4256-.125-P	Inch	2-56	.125	1	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-4256-.187-P	Inch	2-56	.187	1	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-4256-.250-P	Inch	2-56	.250	1	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-4256-.312-P	Inch	2-56	.312	2	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-4256-.375-P	Inch	2-56	.375	2	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-4256-.437-P	Inch	2-56	.437	3	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-4256-.500-P	Inch	2-56	.500	3	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-4256-.562-P	Inch	2-56	.562	3	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-4256-.625-P	Inch	2-56	.625	3	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-4256-.687-P	Inch	2-56	.687	3	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-4256-.750-P	Inch	2-56	.750	3	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-6256-.090-P	Inch	2-56	.090	1	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-6256-.125-P	Inch	2-56	.125	1	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-6256-.187-P	Inch	2-56	.187	1	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-6256-.250-P	Inch	2-56	.250	1	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-6256-.312-P	Inch	2-56	.312	2	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-6256-.375-P	Inch	2-56	.375	2	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-6256-.437-P	Inch	2-56	.437	3	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-6256-.500-P	Inch	2-56	.500	3	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-6256-.562-P	Inch	2-56	.562	3	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-6256-.625-P	Inch	2-56	.625	3	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-6256-.687-P	Inch	2-56	.687	3	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-6256-.750-P	Inch	2-56	.750	3	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPST-4256-.090-Z	Inch	2-56	.090	1	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-4256-.125-Z	Inch	2-56	.125	1	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-4256-.187-Z	Inch	2-56	.187	1	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-4256-.250-Z	Inch	2-56	.250	1	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-4256-.312-Z	Inch	2-56	.312	2	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-4256-.375-Z	Inch	2-56	.375	2	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-4256-.437-Z	Inch	2-56	.437	3	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-4256-.500-Z	Inch	2-56	.500	3	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-4256-.562-Z	Inch	2-56	.562	3	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-4256-.625-Z	Inch	2-56	.625	3	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-4256-.687-Z	Inch	2-56	.687	3	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-4256-.750-Z	Inch	2-56	.750	3	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-6256-.090-Z	Inch	2-56	.090	1	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-6256-.125-Z	Inch	2-56	.125	1	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-6256-.187-Z	Inch	2-56	.187	1	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-6256-.250-Z	Inch	2-56	.250	1	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-6256-.312-Z	Inch	2-56	.312	2	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-6256-.375-Z	Inch	2-56	.375	2	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-6256-.437-Z	Inch	2-56	.437	3	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-6256-.500-Z	Inch	2-56	.500	3	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-6256-.562-Z	Inch	2-56	.562	3	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-6256-.625-Z	Inch	2-56	.625	3	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-6256-.687-Z	Inch	2-56	.687	3	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-6256-.750-Z	Inch	2-56	.750	3	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPAL-4256-.090-PLN	Inch	2-56	.090	1	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-4256-.125-PLN	Inch	2-56	.125	1	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-4256-.187-PLN	Inch	2-56	.187	1	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-4256-.250-PLN	Inch	2-56	.250	1	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-4256-.312-PLN	Inch	2-56	.312	2	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-4256-.375-PLN	Inch	2-56	.375	2	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-4256-.437-PLN	Inch	2-56	.437	3	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-4256-.500-PLN	Inch	2-56	.500	3	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-4256-.562-PLN	Inch	2-56	.562	3	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-4256-.625-PLN	Inch	2-56	.625	3	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-4256-.687-PLN	Inch	2-56	.687	3	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-4256-.750-PLN	Inch	2-56	.750	3	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-6256-.090-PLN	Inch	2-56	.090	1	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-6256-.125-PLN	Inch	2-56	.125	1	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-6256-.187-PLN	Inch	2-56	.187	1	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-6256-.250-PLN	Inch	2-56	.250	1	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-6256-.312-PLN	Inch	2-56	.312	2	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-6256-.375-PLN	Inch	2-56	.375	2	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-6256-.437-PLN	Inch	2-56	.437	3	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-6256-.500-PLN	Inch	2-56	.500	3	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-6256-.562-PLN	Inch	2-56	.562	3	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-6256-.625-PLN	Inch	2-56	.625	3	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-6256-.687-PLN	Inch	2-56	.687	3	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-6256-.750-PLN	Inch	2-56	.750	3	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPSS-440-.090-P	Inch	4-40	.090	1	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-440-.125-P	Inch	4-40	.125	1	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-440-.187-P	Inch	4-40	.187	1	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-440-.250-P	Inch	4-40	.250	1	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-440-.312-P	Inch	4-40	.312	2	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-440-.375-P	Inch	4-40	.375	2	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-440-.437-P	Inch	4-40	.437	2	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-440-.500-P	Inch	4-40	.500	3	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-440-.562-P	Inch	4-40	.562	3	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-440-.625-P	Inch	4-40	.625	3	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-440-.687-P	Inch	4-40	.687	3	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-440-.750-P	Inch	4-40	.750	3	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TPSS-6440-.090-P	Inch	4-40	.090	1	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-6440-.125-P	Inch	4-40	.125	1	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-6440-.187-P	Inch	4-40	.187	1	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-6440-.250-P	Inch	4-40	.250	1	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-6440-.312-P	Inch	4-40	.312	2	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-6440-.375-P	Inch	4-40	.375	2	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-6440-.437-P	Inch	4-40	.437	2	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-6440-.500-P	Inch	4-40	.500	3	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-6440-.562-P	Inch	4-40	.562	3	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-6440-.625-P	Inch	4-40	.625	3	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-6440-.687-P	Inch	4-40	.687	3	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-6440-.750-P	Inch	4-40	.750	3	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPST-440-.090-Z	Inch	4-40	.090	1	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-440-.125-Z	Inch	4-40	.125	1	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-440-.187-Z	Inch	4-40	.187	1	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-440-.250-Z	Inch	4-40	.250	1	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-440-.312-Z	Inch	4-40	.312	2	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-440-.375-Z	Inch	4-40	.375	2	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-440-.437-Z	Inch	4-40	.437	2	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-440-.500-Z	Inch	4-40	.500	3	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-440-.562-Z	Inch	4-40	.562	3	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-440-.625-Z	Inch	4-40	.625	3	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-440-.687-Z	Inch	4-40	.687	3	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-440-.750-Z	Inch	4-40	.750	3	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TPST-6440-.090-Z	Inch	4-40	.090	1	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-6440-.125-Z	Inch	4-40	.125	1	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-6440-.187-Z	Inch	4-40	.187	1	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-6440-.250-Z	Inch	4-40	.250	1	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-6440-.312-Z	Inch	4-40	.312	2	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-6440-.375-Z	Inch	4-40	.375	2	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-6440-.437-Z	Inch	4-40	.437	2	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-6440-.500-Z	Inch	4-40	.500	3	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-6440-.562-Z	Inch	4-40	.562	3	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-6440-.625-Z	Inch	4-40	.625	3	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-6440-.687-Z	Inch	4-40	.687	3	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-6440-.750-Z	Inch	4-40	.750	3	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPAL-440-.090-PLN	Inch	4-40	.090	1	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-440-.125-PLN	Inch	4-40	.125	1	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-440-.187-PLN	Inch	4-40	.187	1	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-440-.250-PLN	Inch	4-40	.250	1	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-440-.312-PLN	Inch	4-40	.312	2	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-440-.375-PLN	Inch	4-40	.375	2	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-440-.437-PLN	Inch	4-40	.437	2	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-440-.500-PLN	Inch	4-40	.500	3	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-440-.562-PLN	Inch	4-40	.562	3	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-440-.625-PLN	Inch	4-40	.625	3	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-440-.687-PLN	Inch	4-40	.687	3	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-440-.750-PLN	Inch	4-40	.750	3	.025	.166	.23	HRB 50 or less	.165	.187	Aluminum	Clean and dry
TPAL-6440-.090-PLN	Inch	4-40	.090	1	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-6440-.125-PLN	Inch	4-40	.125	1	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-6440-.187-PLN	Inch	4-40	.187	1	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-6440-.250-PLN	Inch	4-40	.250	1	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-6440-.312-PLN	Inch	4-40	.312	2	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-6440-.375-PLN	Inch	4-40	.375	2	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-6440-.437-PLN	Inch	4-40	.437	2	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-6440-.500-PLN	Inch	4-40	.500	3	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-6440-.562-PLN	Inch	4-40	.562	3	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-6440-.625-PLN	Inch	4-40	.625	3	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-6440-.687-PLN	Inch	4-40	.687	3	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-6440-.750-PLN	Inch	4-40	.750	3	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPSS-632-.125-P	Inch	6-32	.125	1	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-632-.187-P	Inch	6-32	.187	1	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-632-.250-P	Inch	6-32	.250	1	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-632-.312-P	Inch	6-32	.312	1	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-632-.375-P	Inch	6-32	.375	2	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-632-.437-P	Inch	6-32	.437	2	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-632-.500-P	Inch	6-32	.500	2	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-632-.562-P	Inch	6-32	.562	3	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-632-.625-P	Inch	6-32	.625	3	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-632-.687-P	Inch	6-32	.687	3	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPSS-632-.750-P	Inch	6-32	.750	3	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TPST-632-.125-Z	Inch	6-32	.125	1	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-632-.187-Z	Inch	6-32	.187	1	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-632-.250-Z	Inch	6-32	.250	1	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-632-.312-Z	Inch	6-32	.312	1	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-632-.375-Z	Inch	6-32	.375	2	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-632-.437-Z	Inch	6-32	.437	2	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-632-.500-Z	Inch	6-32	.500	2	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-632-.562-Z	Inch	6-32	.562	3	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-632-.625-Z	Inch	6-32	.625	3	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-632-.687-Z	Inch	6-32	.687	3	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPST-632-.750-Z	Inch	6-32	.750	3	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TPAL-632-.125-PLN	Inch	6-32	.125	1	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-632-.187-PLN	Inch	6-32	.187	1	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-632-.250-PLN	Inch	6-32	.250	1	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-632-.312-PLN	Inch	6-32	.312	1	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-632-.375-PLN	Inch	6-32	.375	2	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-632-.437-PLN	Inch	6-32	.437	2	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-632-.500-PLN	Inch	6-32	.500	2	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-632-.562-PLN	Inch	6-32	.562	3	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-632-.625-PLN	Inch	6-32	.625	3	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-632-.687-PLN	Inch	6-32	.687	3	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPAL-632-.750-PLN	Inch	6-32	.750	3	.025	.213	.27	HRB 50 or less	.212	.250	Aluminum	Clean and dry
TPSS-2M16-2-P	Metric	M1.6 x 0.35	2	1	0.63	3.25	4.8	HRB 70 or less	3.23	3.96	300-Series stainless steel	Passivated and/or tested
TPSS-2M16-3-P	Metric	M1.6 x 0.35	3	1	0.63	3.25	4.8	HRB 70 or less	3.23	3.96	300-Series stainless steel	Passivated and/or tested
TPSS-2M16-4-P	Metric	M1.6 x 0.35	4	1	0.63	3.25	4.8	HRB 70 or less	3.23	3.96	300-Series stainless steel	Passivated and/or tested
TPSS-2M16-6-P	Metric	M1.6 x 0.35	6	2	0.63	3.25	4.8	HRB 70 or less	3.23	3.96	300-Series stainless steel	Passivated and/or tested
TPSS-2M16-8-P	Metric	M1.6 x 0.35	8	2	0.63	3.25	4.8	HRB 70 or less	3.23	3.96	300-Series stainless steel	Passivated and/or tested
TPSS-2M16-10-P	Metric	M1.6 x 0.35	10	3	0.63	3.25	4.8	HRB 70 or less	3.23	3.96	300-Series stainless steel	Passivated and/or tested
TPSS-2M16-12-P	Metric	M1.6 x 0.35	12	3	0.63	3.25	4.8	HRB 70 or less	3.23	3.96	300-Series stainless steel	Passivated and/or tested
TPSS-2M16-14-P	Metric	M1.6 x 0.35	14	3	0.63	3.25	4.8	HRB 70 or less	3.23	3.96	300-Series stainless steel	Passivated and/or tested
TPSS-2M16-16-P	Metric	M1.6 x 0.35	16	3	0.63	3.25	4.8	HRB 70 or less	3.23	3.96	300-Series stainless steel	Passivated and/or tested
TPSS-3M16-2-P	Metric	M1.6 x 0.35	2	1	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M16-3-P	Metric	M1.6 x 0.35	3	1	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M16-4-P	Metric	M1.6 x 0.35	4	1	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M16-6-P	Metric	M1.6 x 0.35	6	2	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M16-8-P	Metric	M1.6 x 0.35	8	2	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M16-10-P	Metric	M1.6 x 0.35	10	3	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M16-12-P	Metric	M1.6 x 0.35	12	3	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M16-14-P	Metric	M1.6 x 0.35	14	3	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M16-16-P	Metric	M1.6 x 0.35	16	3	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M16-18-P	Metric	M1.6 x 0.35	18	3	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M16-19-P	Metric	M1.6 x 0.35	19	3	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPST-2M16-2-Z	Metric	M1.6 x 0.35	2	1	0.63	3.25	4.8	HRB 60 or less	3.23	3.96	Carbon steel	Zinc with clear chromate
TPST-2M16-3-Z	Metric	M1.6 x 0.35	3	1	0.63	3.25	4.8	HRB 60 or less	3.23	3.96	Carbon steel	Zinc with clear chromate
TPST-2M16-4-Z	Metric	M1.6 x 0.35	4	1	0.63	3.25	4.8	HRB 60 or less	3.23	3.96	Carbon steel	Zinc with clear chromate
TPST-2M16-6-Z	Metric	M1.6 x 0.35	6	2	0.63	3.25	4.8	HRB 60 or less	3.23	3.96	Carbon steel	Zinc with clear chromate
TPST-2M16-8-Z	Metric	M1.6 x 0.35	8	2	0.63	3.25	4.8	HRB 60 or less	3.23	3.96	Carbon steel	Zinc with clear chromate
TPST-2M16-10-Z	Metric	M1.6 x 0.35	10	3	0.63	3.25	4.8	HRB 60 or less	3.23	3.96	Carbon steel	Zinc with clear chromate
TPST-2M16-12-Z	Metric	M1.6 x 0.35	12	3	0.63	3.25	4.8	HRB 60 or less	3.23	3.96	Carbon steel	Zinc with clear chromate
TPST-2M16-14-Z	Metric	M1.6 x 0.35	14	3	0.63	3.25	4.8	HRB 60 or less	3.23	3.96	Carbon steel	Zinc with clear chromate
TPST-2M16-16-Z	Metric	M1.6 x 0.35	16	3	0.63	3.25	4.8	HRB 60 or less	3.23	3.96	Carbon steel	Zinc with clear chromate
TPST-3M16-2-Z	Metric	M1.6 x 0.35	2	1	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M16-3-Z	Metric	M1.6 x 0.35	3	1	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M16-4-Z	Metric	M1.6 x 0.35	4	1	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M16-6-Z	Metric	M1.6 x 0.35	6	2	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M16-8-Z	Metric	M1.6 x 0.35	8	2	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M16-10-Z	Metric	M1.6 x 0.35	10	3	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M16-12-Z	Metric	M1.6 x 0.35	12	3	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M16-14-Z	Metric	M1.6 x 0.35	14	3	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M16-16-Z	Metric	M1.6 x 0.35	16	3	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M16-18-Z	Metric	M1.6 x 0.35	18	3	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M16-19-Z	Metric	M1.6 x 0.35	19	3	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPAL-2M16-2-PLN	Metric	M1.6 x 0.35	2	1	0.63	3.25	4.8	HRB 50 or less	3.23	3.96	Aluminum	Clean and dry
TPAL-2M16-3-PLN	Metric	M1.6 x 0.35	3	1	0.63	3.25	4.8	HRB 50 or less	3.23	3.96	Aluminum	Clean and dry
TPAL-2M16-4-PLN	Metric	M1.6 x 0.35	4	1	0.63	3.25	4.8	HRB 50 or less	3.23	3.96	Aluminum	Clean and dry
TPAL-2M16-6-PLN	Metric	M1.6 x 0.35	6	2	0.63	3.25	4.8	HRB 50 or less	3.23	3.96	Aluminum	Clean and dry
TPAL-2M16-8-PLN	Metric	M1.6 x 0.35	8	2	0.63	3.25	4.8	HRB 50 or less	3.23	3.96	Aluminum	Clean and dry
TPAL-2M16-10-PLN	Metric	M1.6 x 0.35	10	3	0.63	3.25	4.8	HRB 50 or less	3.23	3.96	Aluminum	Clean and dry
TPAL-2M16-12-PLN	Metric	M1.6 x 0.35	12	3	0.63	3.25	4.8	HRB 50 or less	3.23	3.96	Aluminum	Clean and dry
TPAL-2M16-14-PLN	Metric	M1.6 x 0.35	14	3	0.63	3.25	4.8	HRB 50 or less	3.23	3.96	Aluminum	Clean and dry
TPAL-2M16-16-PLN	Metric	M1.6 x 0.35	16	3	0.63	3.25	4.8	HRB 50 or less	3.23	3.96	Aluminum	Clean and dry
TPAL-3M16-2-PLN	Metric	M1.6 x 0.35	2	1	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M16-3-PLN	Metric	M1.6 x 0.35	3	1	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M16-4-PLN	Metric	M1.6 x 0.35	4	1	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M16-6-PLN	Metric	M1.6 x 0.35	6	2	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M16-8-PLN	Metric	M1.6 x 0.35	8	2	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M16-10-PLN	Metric	M1.6 x 0.35	10	3	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M16-12-PLN	Metric	M1.6 x 0.35	12	3	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M16-14-PLN	Metric	M1.6 x 0.35	14	3	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M16-16-PLN	Metric	M1.6 x 0.35	16	3	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M16-18-PLN	Metric	M1.6 x 0.35	18	3	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M16-19-PLN	Metric	M1.6 x 0.35	19	3	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPSS-M2-2-P	Metric	M2 x 0.4	2	1	0.63	3.25	4.8	HRB 70 or less	3.23	3.96	300-Series stainless steel	Passivated and/or tested
TPSS-M2-3-P	Metric	M2 x 0.4	3	1	0.63	3.25	4.8	HRB 70 or less	3.23	3.96	300-Series stainless steel	Passivated and/or tested
TPSS-M2-4-P	Metric	M2 x 0.4	4	1	0.63	3.25	4.8	HRB 70 or less	3.23	3.96	300-Series stainless steel	Passivated and/or tested
TPSS-M2-6-P	Metric	M2 x 0.4	6	1	0.63	3.25	4.8	HRB 70 or less	3.23	3.96	300-Series stainless steel	Passivated and/or tested
TPSS-M2-8-P	Metric	M2 x 0.4	8	2	0.63	3.25	4.8	HRB 70 or less	3.23	3.96	300-Series stainless steel	Passivated and/or tested
TPSS-M2-10-P	Metric	M2 x 0.4	10	3	0.63	3.25	4.8	HRB 70 or less	3.23	3.96	300-Series stainless steel	Passivated and/or tested
TPSS-M2-12-P	Metric	M2 x 0.4	12	3	0.63	3.25	4.8	HRB 70 or less	3.23	3.96	300-Series stainless steel	Passivated and/or tested
TPSS-M2-14-P	Metric	M2 x 0.4	14	3	0.63	3.25	4.8	HRB 70 or less	3.23	3.96	300-Series stainless steel	Passivated and/or tested
TPSS-M2-16-P	Metric	M2 x 0.4	16	3	0.63	3.25	4.8	HRB 70 or less	3.23	3.96	300-Series stainless steel	Passivated and/or tested
TPSS-3M2-2-P	Metric	M2 x 0.4	2	1	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M2-3-P	Metric	M2 x 0.4	3	1	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M2-4-P	Metric	M2 x 0.4	4	1	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M2-6-P	Metric	M2 x 0.4	6	1	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M2-8-P	Metric	M2 x 0.4	8	2	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M2-10-P	Metric	M2 x 0.4	10	3	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M2-12-P	Metric	M2 x 0.4	12	3	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M2-14-P	Metric	M2 x 0.4	14	3	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M2-16-P	Metric	M2 x 0.4	16	3	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M2-18-P	Metric	M2 x 0.4	18	3	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M2-19-P	Metric	M2 x 0.4	19	3	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPST-M2-2-Z	Metric	M2 x 0.4	2	1	0.63	3.25	4.8	HRB 60 or less	3.23	3.96	Carbon steel	Zinc with clear chromate
TPST-M2-3-Z	Metric	M2 x 0.4	3	1	0.63	3.25	4.8	HRB 60 or less	3.23	3.96	Carbon steel	Zinc with clear chromate
TPST-M2-4-Z	Metric	M2 x 0.4	4	1	0.63	3.25	4.8	HRB 60 or less	3.23	3.96	Carbon steel	Zinc with clear chromate
TPST-M2-6-Z	Metric	M2 x 0.4	6	1	0.63	3.25	4.8	HRB 60 or less	3.23	3.96	Carbon steel	Zinc with clear chromate
TPST-M2-8-Z	Metric	M2 x 0.4	8	2	0.63	3.25	4.8	HRB 60 or less	3.23	3.96	Carbon steel	Zinc with clear chromate
TPST-M2-10-Z	Metric	M2 x 0.4	10	3	0.63	3.25	4.8	HRB 60 or less	3.23	3.96	Carbon steel	Zinc with clear chromate
TPST-M2-12-Z	Metric	M2 x 0.4	12	3	0.63	3.25	4.8	HRB 60 or less	3.23	3.96	Carbon steel	Zinc with clear chromate
TPST-M2-14-Z	Metric	M2 x 0.4	14	3	0.63	3.25	4.8	HRB 60 or less	3.23	3.96	Carbon steel	Zinc with clear chromate
TPST-M2-16-Z	Metric	M2 x 0.4	16	3	0.63	3.25	4.8	HRB 60 or less	3.23	3.96	Carbon steel	Zinc with clear chromate
TPST-3M2-2-Z	Metric	M2 x 0.4	2	1	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M2-3-Z	Metric	M2 x 0.4	3	1	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M2-4-Z	Metric	M2 x 0.4	4	1	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M2-6-Z	Metric	M2 x 0.4	6	1	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M2-8-Z	Metric	M2 x 0.4	8	2	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M2-10-Z	Metric	M2 x 0.4	10	3	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M2-12-Z	Metric	M2 x 0.4	12	3	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M2-14-Z	Metric	M2 x 0.4	14	3	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M2-16-Z	Metric	M2 x 0.4	16	3	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M2-18-Z	Metric	M2 x 0.4	18	3	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M2-19-Z	Metric	M2 x 0.4	19	3	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPAL-M2-2-PLN	Metric	M2 x 0.4	2	1	0.63	3.25	4.8	HRB 50 or less	3.23	3.96	Aluminum	Clean and dry
TPAL-M2-3-PLN	Metric	M2 x 0.4	3	1	0.63	3.25	4.8	HRB 50 or less	3.23	3.96	Aluminum	Clean and dry
TPAL-M2-4-PLN	Metric	M2 x 0.4	4	1	0.63	3.25	4.8	HRB 50 or less	3.23	3.96	Aluminum	Clean and dry
TPAL-M2-6-PLN	Metric	M2 x 0.4	6	1	0.63	3.25	4.8	HRB 50 or less	3.23	3.96	Aluminum	Clean and dry
TPAL-M2-8-PLN	Metric	M2 x 0.4	8	2	0.63	3.25	4.8	HRB 50 or less	3.23	3.96	Aluminum	Clean and dry
TPAL-M2-10-PLN	Metric	M2 x 0.4	10	3	0.63	3.25	4.8	HRB 50 or less	3.23	3.96	Aluminum	Clean and dry
TPAL-M2-12-PLN	Metric	M2 x 0.4	12	3	0.63	3.25	4.8	HRB 50 or less	3.23	3.96	Aluminum	Clean and dry
TPAL-M2-14-PLN	Metric	M2 x 0.4	14	3	0.63	3.25	4.8	HRB 50 or less	3.23	3.96	Aluminum	Clean and dry
TPAL-M2-16-PLN	Metric	M2 x 0.4	16	3	0.63	3.25	4.8	HRB 50 or less	3.23	3.96	Aluminum	Clean and dry
TPAL-3M2-2-PLN	Metric	M2 x 0.4	2	1	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M2-3-PLN	Metric	M2 x 0.4	3	1	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M2-4-PLN	Metric	M2 x 0.4	4	1	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M2-6-PLN	Metric	M2 x 0.4	6	1	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M2-8-PLN	Metric	M2 x 0.4	8	2	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M2-10-PLN	Metric	M2 x 0.4	10	3	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M2-12-PLN	Metric	M2 x 0.4	12	3	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M2-14-PLN	Metric	M2 x 0.4	14	3	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M2-16-PLN	Metric	M2 x 0.4	16	3	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M2-18-PLN	Metric	M2 x 0.4	18	3	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M2-19-PLN	Metric	M2 x 0.4	19	3	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPSS-3M25-2-P	Metric	M2.5 x 0.45	2	1	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M25-3-P	Metric	M2.5 x 0.45	3	1	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M25-4-P	Metric	M2.5 x 0.45	4	1	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M25-6-P	Metric	M2.5 x 0.45	6	1	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M25-8-P	Metric	M2.5 x 0.45	8	2	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M25-10-P	Metric	M2.5 x 0.45	10	3	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M25-12-P	Metric	M2.5 x 0.45	12	3	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M25-14-P	Metric	M2.5 x 0.45	14	3	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M25-16-P	Metric	M2.5 x 0.45	16	3	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M25-18-P	Metric	M2.5 x 0.45	18	3	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-3M25-19-P	Metric	M2.5 x 0.45	19	3	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-35M25-2-P	Metric	M2.5 x 0.45	2	1	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-35M25-3-P	Metric	M2.5 x 0.45	3	1	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-35M25-4-P	Metric	M2.5 x 0.45	4	1	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-35M25-6-P	Metric	M2.5 x 0.45	6	1	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-35M25-8-P	Metric	M2.5 x 0.45	8	2	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-35M25-10-P	Metric	M2.5 x 0.45	10	3	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-35M25-12-P	Metric	M2.5 x 0.45	12	3	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-35M25-14-P	Metric	M2.5 x 0.45	14	3	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-35M25-16-P	Metric	M2.5 x 0.45	16	3	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-35M25-18-P	Metric	M2.5 x 0.45	18	3	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-35M25-19-P	Metric	M2.5 x 0.45	19	3	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPST-3M25-2-Z	Metric	M2.5 x 0.45	2	1	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M25-3-Z	Metric	M2.5 x 0.45	3	1	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M25-4-Z	Metric	M2.5 x 0.45	4	1	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M25-6-Z	Metric	M2.5 x 0.45	6	1	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M25-8-Z	Metric	M2.5 x 0.45	8	2	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M25-10-Z	Metric	M2.5 x 0.45	10	3	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M25-12-Z	Metric	M2.5 x 0.45	12	3	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M25-14-Z	Metric	M2.5 x 0.45	14	3	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M25-16-Z	Metric	M2.5 x 0.45	16	3	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M25-18-Z	Metric	M2.5 x 0.45	18	3	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-3M25-19-Z	Metric	M2.5 x 0.45	19	3	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-35M25-2-Z	Metric	M2.5 x 0.45	2	1	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-35M25-3-Z	Metric	M2.5 x 0.45	3	1	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-35M25-4-Z	Metric	M2.5 x 0.45	4	1	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-35M25-6-Z	Metric	M2.5 x 0.45	6	1	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-35M25-8-Z	Metric	M2.5 x 0.45	8	2	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-35M25-10-Z	Metric	M2.5 x 0.45	10	3	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-35M25-12-Z	Metric	M2.5 x 0.45	12	3	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-35M25-14-Z	Metric	M2.5 x 0.45	14	3	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-35M25-16-Z	Metric	M2.5 x 0.45	16	3	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-35M25-18-Z	Metric	M2.5 x 0.45	18	3	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-35M25-19-Z	Metric	M2.5 x 0.45	19	3	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPAL-3M25-2-PLN	Metric	M2.5 x 0.45	2	1	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M25-3-PLN	Metric	M2.5 x 0.45	3	1	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M25-4-PLN	Metric	M2.5 x 0.45	4	1	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M25-6-PLN	Metric	M2.5 x 0.45	6	1	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M25-8-PLN	Metric	M2.5 x 0.45	8	2	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M25-10-PLN	Metric	M2.5 x 0.45	10	3	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M25-12-PLN	Metric	M2.5 x 0.45	12	3	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M25-14-PLN	Metric	M2.5 x 0.45	14	3	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M25-16-PLN	Metric	M2.5 x 0.45	16	3	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M25-18-PLN	Metric	M2.5 x 0.45	18	3	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-3M25-19-PLN	Metric	M2.5 x 0.45	19	3	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-35M25-2-PLN	Metric	M2.5 x 0.45	2	1	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-35M25-3-PLN	Metric	M2.5 x 0.45	3	1	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-35M25-4-PLN	Metric	M2.5 x 0.45	4	1	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-35M25-6-PLN	Metric	M2.5 x 0.45	6	1	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-35M25-8-PLN	Metric	M2.5 x 0.45	8	2	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-35M25-10-PLN	Metric	M2.5 x 0.45	10	3	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-35M25-12-PLN	Metric	M2.5 x 0.45	12	3	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-35M25-14-PLN	Metric	M2.5 x 0.45	14	3	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-35M25-16-PLN	Metric	M2.5 x 0.45	16	3	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-35M25-18-PLN	Metric	M2.5 x 0.45	18	3	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-35M25-19-PLN	Metric	M2.5 x 0.45	19	3	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPSS-M3-2-P	Metric	M3 x 0.5	2	1	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-M3-3-P	Metric	M3 x 0.5	3	1	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-M3-4-P	Metric	M3 x 0.5	4	1	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-M3-6-P	Metric	M3 x 0.5	6	1	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-M3-8-P	Metric	M3 x 0.5	8	2	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-M3-10-P	Metric	M3 x 0.5	10	2	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-M3-12-P	Metric	M3 x 0.5	12	3	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-M3-14-P	Metric	M3 x 0.5	14	3	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-M3-16-P	Metric	M3 x 0.5	16	3	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-M3-18-P	Metric	M3 x 0.5	18	3	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-M3-19-P	Metric	M3 x 0.5	19	3	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TPSS-35M3-2-P	Metric	M3 x 0.5	2	1	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-35M3-3-P	Metric	M3 x 0.5	3	1	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-35M3-4-P	Metric	M3 x 0.5	4	1	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-35M3-6-P	Metric	M3 x 0.5	6	1	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-35M3-8-P	Metric	M3 x 0.5	8	2	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-35M3-10-P	Metric	M3 x 0.5	10	2	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-35M3-12-P	Metric	M3 x 0.5	12	3	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-35M3-14-P	Metric	M3 x 0.5	14	3	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-35M3-16-P	Metric	M3 x 0.5	16	3	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-35M3-18-P	Metric	M3 x 0.5	18	3	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-35M3-19-P	Metric	M3 x 0.5	19	3	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPST-M3-2-Z	Metric	M3 x 0.5	2	1	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-M3-3-Z	Metric	M3 x 0.5	3	1	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-M3-4-Z	Metric	M3 x 0.5	4	1	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-M3-6-Z	Metric	M3 x 0.5	6	1	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-M3-8-Z	Metric	M3 x 0.5	8	2	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-M3-10-Z	Metric	M3 x 0.5	10	2	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-M3-12-Z	Metric	M3 x 0.5	12	3	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-M3-14-Z	Metric	M3 x 0.5	14	3	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-M3-16-Z	Metric	M3 x 0.5	16	3	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-M3-18-Z	Metric	M3 x 0.5	18	3	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-M3-19-Z	Metric	M3 x 0.5	19	3	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TPST-35M3-2-Z	Metric	M3 x 0.5	2	1	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-35M3-3-Z	Metric	M3 x 0.5	3	1	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-35M3-4-Z	Metric	M3 x 0.5	4	1	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-35M3-6-Z	Metric	M3 x 0.5	6	1	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-35M3-8-Z	Metric	M3 x 0.5	8	2	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-35M3-10-Z	Metric	M3 x 0.5	10	2	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-35M3-12-Z	Metric	M3 x 0.5	12	3	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-35M3-14-Z	Metric	M3 x 0.5	14	3	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-35M3-16-Z	Metric	M3 x 0.5	16	3	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-35M3-18-Z	Metric	M3 x 0.5	18	3	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-35M3-19-Z	Metric	M3 x 0.5	19	3	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPAL-M3-2-PLN	Metric	M3 x 0.5	2	1	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-M3-3-PLN	Metric	M3 x 0.5	3	1	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-M3-4-PLN	Metric	M3 x 0.5	4	1	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-M3-6-PLN	Metric	M3 x 0.5	6	1	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-M3-8-PLN	Metric	M3 x 0.5	8	2	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-M3-10-PLN	Metric	M3 x 0.5	10	2	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-M3-12-PLN	Metric	M3 x 0.5	12	3	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-M3-14-PLN	Metric	M3 x 0.5	14	3	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-M3-16-PLN	Metric	M3 x 0.5	16	3	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-M3-18-PLN	Metric	M3 x 0.5	18	3	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-M3-19-PLN	Metric	M3 x 0.5	19	3	0.63	4.22	5.8	HRB 50 or less	4.19	4.76	Aluminum	Clean and dry
TPAL-35M3-2-PLN	Metric	M3 x 0.5	2	1	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-35M3-3-PLN	Metric	M3 x 0.5	3	1	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-35M3-4-PLN	Metric	M3 x 0.5	4	1	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-35M3-6-PLN	Metric	M3 x 0.5	6	1	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-35M3-8-PLN	Metric	M3 x 0.5	8	2	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-35M3-10-PLN	Metric	M3 x 0.5	10	2	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-35M3-12-PLN	Metric	M3 x 0.5	12	3	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-35M3-14-PLN	Metric	M3 x 0.5	14	3	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-35M3-16-PLN	Metric	M3 x 0.5	16	3	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-35M3-18-PLN	Metric	M3 x 0.5	18	3	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-35M3-19-PLN	Metric	M3 x 0.5	19	3	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPSS-M35-3-P	Metric	M3.5 x 0.6	3	1	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-M35-4-P	Metric	M3.5 x 0.6	4	1	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-M35-6-P	Metric	M3.5 x 0.6	6	1	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-M35-8-P	Metric	M3.5 x 0.6	8	1	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-M35-10-P	Metric	M3.5 x 0.6	10	2	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-M35-12-P	Metric	M3.5 x 0.6	12	2	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-M35-14-P	Metric	M3.5 x 0.6	14	3	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-M35-16-P	Metric	M3.5 x 0.6	16	3	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-M35-18-P	Metric	M3.5 x 0.6	18	3	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPSS-M35-19-P	Metric	M3.5 x 0.6	19	3	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TPST-M35-3-Z	Metric	M3.5 x 0.6	3	1	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-M35-4-Z	Metric	M3.5 x 0.6	4	1	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-M35-6-Z	Metric	M3.5 x 0.6	6	1	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-M35-8-Z	Metric	M3.5 x 0.6	8	1	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-M35-10-Z	Metric	M3.5 x 0.6	10	2	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-M35-12-Z	Metric	M3.5 x 0.6	12	2	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-M35-14-Z	Metric	M3.5 x 0.6	14	3	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-M35-16-Z	Metric	M3.5 x 0.6	16	3	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-M35-18-Z	Metric	M3.5 x 0.6	18	3	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPST-M35-19-Z	Metric	M3.5 x 0.6	19	3	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TPAL-M35-3-PLN	Metric	M3.5 x 0.6	3	1	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-M35-4-PLN	Metric	M3.5 x 0.6	4	1	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-M35-6-PLN	Metric	M3.5 x 0.6	6	1	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-M35-8-PLN	Metric	M3.5 x 0.6	8	1	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-M35-10-PLN	Metric	M3.5 x 0.6	10	2	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-M35-12-PLN	Metric	M3.5 x 0.6	12	2	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-M35-14-PLN	Metric	M3.5 x 0.6	14	3	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-M35-16-PLN	Metric	M3.5 x 0.6	16	3	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-M35-18-PLN	Metric	M3.5 x 0.6	18	3	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry
TPAL-M35-19-PLN	Metric	M3.5 x 0.6	19	3	0.63	5.41	7.1	HRB 50 or less	5.39	6.35	Aluminum	Clean and dry

TP Self-clinching Standoffs For Thin Panels

Contact Us

Personal & Contact Info

Address

Attachments & Comments
