TR Thin Panel Thru Hole Self-clinching Standoffs

Product PDF

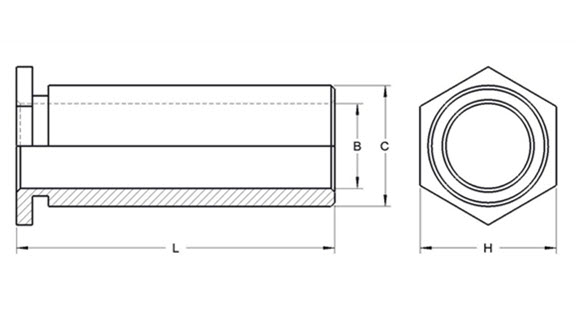

Part Description	Inch/Metric	Thru-Hole Dia. (B) (+.004/-.003in) (+0.10/-0.08mm)	Length (L) (±.003in) (±0.08mm)	Min. Sheet Thickness	Hole size in sheet (+.003/-.000in) (+0.08/-0.00mm)	Min. dist. hole C/L to edge	For use in sheet hardness	Body Dia. (C) (+.000/-.005in) (+0.00/-0.13mm)	H Nom.	Material	Finish
TRSS-4116-.090-P	Inch	.116	.090	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TRSS-4116-.125-P	Inch	.116	.125	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TRSS-4116-.187-P	Inch	.116	.187	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TRSS-4116-.250-P	Inch	.116	.250	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TRSS-4116-.312-P	Inch	.116	.312	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TRSS-4116-.375-P	Inch	.116	.375	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TRSS-4116-.437-P	Inch	.116	.437	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TRSS-4116-.500-P	Inch	.116	.500	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TRSS-4116-.562-P	Inch	.116	.562	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TRSS-4116-.625-P	Inch	.116	.625	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TRSS-4116-.687-P	Inch	.116	.687	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TRSS-4116-.750-P	Inch	.116	.750	.025	.166	.23	HRB 70 or less	.165	.187	300-Series stainless steel	Passivated and/or tested
TRSS-6116-.090-P	Inch	.116	.090	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TRSS-6116-.125-P	Inch	.116	.125	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TRSS-6116-.187-P	Inch	.116	.187	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TRSS-6116-.250-P	Inch	.116	.250	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TRSS-6116-.312-P	Inch	.116	.312	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TRSS-6116-.375-P	Inch	.116	.375	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TRSS-6116-.437-P	Inch	.116	.437	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TRSS-6116-.500-P	Inch	.116	.500	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TRSS-6116-.562-P	Inch	.116	.562	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TRSS-6116-.625-P	Inch	.116	.625	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TRSS-6116-.687-P	Inch	.116	.687	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TRSS-6116-.750-P	Inch	.116	.750	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TRSS-6143-.090-P	Inch	.143	.090	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TRSS-6143-.125-P	Inch	.143	.125	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TRSS-6143-.187-P	Inch	.143	.187	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TRSS-6143-.250-P	Inch	.143	.250	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TRSS-6143-.312-P	Inch	.143	.312	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TRSS-6143-.375-P	Inch	.143	.375	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TRSS-6143-.437-P	Inch	.143	.437	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TRSS-6143-.500-P	Inch	.143	.500	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TRSS-6143-.562-P	Inch	.143	.562	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TRSS-6143-.625-P	Inch	.143	.625	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TRSS-6143-.687-P	Inch	.143	.687	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TRSS-6143-.750-P	Inch	.143	.750	.025	.213	.27	HRB 70 or less	.212	.250	300-Series stainless steel	Passivated and/or tested
TRST-4116-.090-Z	Inch	.116	.090	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TRST-4116-.125-Z	Inch	.116	.125	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TRST-4116-.187-Z	Inch	.116	.187	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TRST-4116-.250-Z	Inch	.116	.250	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TRST-4116-.312-Z	Inch	.116	.312	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TRST-4116-.375-Z	Inch	.116	.375	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TRST-4116-.437-Z	Inch	.116	.437	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TRST-4116-.500-Z	Inch	.116	.500	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TRST-4116-.562-Z	Inch	.116	.562	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TRST-4116-.625-Z	Inch	.116	.625	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TRST-4116-.687-Z	Inch	.116	.687	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TRST-4116-.750-Z	Inch	.116	.750	.025	.166	.23	HRB 60 or less	.165	.187	Carbon steel	Zinc with clear chromate
TRST-6116-.090-Z	Inch	.116	.090	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TRST-6116-.125-Z	Inch	.116	.125	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TRST-6116-.187-Z	Inch	.116	.187	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TRST-6116-.250-Z	Inch	.116	.250	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TRST-6116-.312-Z	Inch	.116	.312	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TRST-6116-.375-Z	Inch	.116	.375	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TRST-6116-.437-Z	Inch	.116	.437	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TRST-6116-.500-Z	Inch	.116	.500	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TRST-6116-.562-Z	Inch	.116	.562	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TRST-6116-.625-Z	Inch	.116	.625	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TRST-6116-.687-Z	Inch	.116	.687	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TRST-6116-.750-Z	Inch	.116	.750	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TRST-6143-.090-Z	Inch	.143	.090	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TRST-6143-.125-Z	Inch	.143	.125	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TRST-6143-.187-Z	Inch	.143	.187	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TRST-6143-.250-Z	Inch	.143	.250	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TRST-6143-.312-Z	Inch	.143	.312	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TRST-6143-.375-Z	Inch	.143	.375	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TRST-6143-.437-Z	Inch	.143	.437	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TRST-6143-.500-Z	Inch	.143	.500	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TRST-6143-.562-Z	Inch	.143	.562	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TRST-6143-.625-Z	Inch	.143	.625	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TRST-6143-.687-Z	Inch	.143	.687	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TRST-6143-.750-Z	Inch	.143	.750	.025	.213	.27	HRB 60 or less	.212	.250	Carbon steel	Zinc with clear chromate
TRSS-43.1-2-P	Metric	3.1	2	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TRSS-43.1-3-P	Metric	3.1	3	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TRSS-43.1-4-P	Metric	3.1	4	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TRSS-43.1-6-P	Metric	3.1	6	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TRSS-43.1-8-P	Metric	3.1	8	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TRSS-43.1-10-P	Metric	3.1	10	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TRSS-43.1-12-P	Metric	3.1	12	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TRSS-43.1-14-P	Metric	3.1	14	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TRSS-43.1-16-P	Metric	3.1	16	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TRSS-43.1-18-P	Metric	3.1	18	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TRSS-43.1-20-P	Metric	3.1	20	0.63	4.22	5.8	HRB 70 or less	4.19	4.76	300-Series stainless steel	Passivated and/or tested
TRSS-63.1-2-P	Metric	3.1	2	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TRSS-63.1-3-P	Metric	3.1	3	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TRSS-63.1-4-P	Metric	3.1	4	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TRSS-63.1-6-P	Metric	3.1	6	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TRSS-63.1-8-P	Metric	3.1	8	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TRSS-63.1-10-P	Metric	3.1	10	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TRSS-63.1-12-P	Metric	3.1	12	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TRSS-63.1-14-P	Metric	3.1	14	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TRSS-63.1-16-P	Metric	3.1	16	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TRSS-63.1-18-P	Metric	3.1	18	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TRSS-63.1-20-P	Metric	3.1	20	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TRSS-63.6-2-P	Metric	3.6	2	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TRSS-63.6-3-P	Metric	3.6	3	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TRSS-63.6-4-P	Metric	3.6	4	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TRSS-63.6-6-P	Metric	3.6	6	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TRSS-63.6-8-P	Metric	3.6	8	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TRSS-63.6-10-P	Metric	3.6	10	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TRSS-63.6-12-P	Metric	3.6	12	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TRSS-63.6-14-P	Metric	3.6	14	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TRSS-63.6-16-P	Metric	3.6	16	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TRSS-63.6-18-P	Metric	3.6	18	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TRSS-63.6-20-P	Metric	3.6	20	0.63	5.41	7.1	HRB 70 or less	5.39	6.35	300-Series stainless steel	Passivated and/or tested
TRST-43.1-2-Z	Metric	3.1	2	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TRST-43.1-3-Z	Metric	3.1	3	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TRST-43.1-4-Z	Metric	3.1	4	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TRST-43.1-6-Z	Metric	3.1	6	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TRST-43.1-8-Z	Metric	3.1	8	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TRST-43.1-10-Z	Metric	3.1	10	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TRST-43.1-12-Z	Metric	3.1	12	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TRST-43.1-14-Z	Metric	3.1	14	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TRST-43.1-16-Z	Metric	3.1	16	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TRST-43.1-18-Z	Metric	3.1	18	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TRST-43.1-20-Z	Metric	3.1	20	0.63	4.22	5.8	HRB 60 or less	4.19	4.76	Carbon steel	Zinc with clear chromate
TRST-63.1-2-Z	Metric	3.1	2	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TRST-63.1-3-Z	Metric	3.1	3	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TRST-63.1-4-Z	Metric	3.1	4	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TRST-63.1-6-Z	Metric	3.1	6	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TRST-63.1-8-Z	Metric	3.1	8	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TRST-63.1-10-Z	Metric	3.1	10	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TRST-63.1-12-Z	Metric	3.1	12	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TRST-63.1-14-Z	Metric	3.1	14	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TRST-63.1-16-Z	Metric	3.1	16	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TRST-63.1-18-Z	Metric	3.1	18	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TRST-63.1-20-Z	Metric	3.1	20	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TRST-63.6-2-Z	Metric	3.6	2	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TRST-63.6-3-Z	Metric	3.6	3	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TRST-63.6-4-Z	Metric	3.6	4	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TRST-63.6-6-Z	Metric	3.6	6	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TRST-63.6-8-Z	Metric	3.6	8	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TRST-63.6-10-Z	Metric	3.6	10	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TRST-63.6-12-Z	Metric	3.6	12	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TRST-63.6-14-Z	Metric	3.6	14	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TRST-63.6-16-Z	Metric	3.6	16	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TRST-63.6-18-Z	Metric	3.6	18	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
TRST-63.6-20-Z	Metric	3.6	20	0.63	5.41	7.1	HRB 60 or less	5.39	6.35	Carbon steel	Zinc with clear chromate
