SB Flush Head Self-clinching Studs

Product PDF

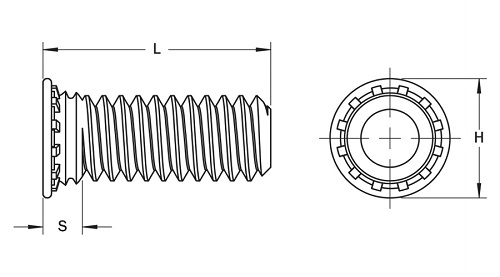

Part Description	Inch/Metric	Thread	Length (±.015in) (±0.40mm)	Min. Sheet Thickness	Hole size in sheet (+.003/-.00in) (+0.08/-0.00mm)	Min. dist. hole C/L to edge	For use in sheet hardness	Max. hole size in attached parts	H (±.015in) (±0.40mm)	S Max.	Material	Finish
SBSS-256-.250-P	Inch	2-56	.250	.040	.085	.187	HRB 70 Max	.105	.144	.075	300-Series stainless steel	Passivated and/or tested
SBSS-256-.312-P	Inch	2-56	.312	.040	.085	.187	HRB 70 Max	.105	.144	.075	300-Series stainless steel	Passivated and/or tested
SBSS-256-.375-P	Inch	2-56	.375	.040	.085	.187	HRB 70 Max	.105	.144	.075	300-Series stainless steel	Passivated and/or tested
SBSS-256-.500-P	Inch	2-56	.500	.040	.085	.187	HRB 70 Max	.105	.144	.075	300-Series stainless steel	Passivated and/or tested
SBSS-256-.625-P	Inch	2-56	.625	.040	.085	.187	HRB 70 Max	.105	.144	.075	300-Series stainless steel	Passivated and/or tested
SBSS-256-.750-P	Inch	2-56	.750	.040	.085	.187	HRB 70 Max	.105	.144	.075	300-Series stainless steel	Passivated and/or tested
SBST-256-.250-Z	Inch	2-56	.250	.040	.085	.187	HRB 80 Max	.105	.144	.075	Heat treated carbon steel	Zinc with clear chromate
SBST-256-.312-Z	Inch	2-56	.312	.040	.085	.187	HRB 80 Max	.105	.144	.075	Heat treated carbon steel	Zinc with clear chromate
SBST-256-.375-Z	Inch	2-56	.375	.040	.085	.187	HRB 80 Max	.105	.144	.075	Heat treated carbon steel	Zinc with clear chromate
SBST-256-.500-Z	Inch	2-56	.500	.040	.085	.187	HRB 80 Max	.105	.144	.075	Heat treated carbon steel	Zinc with clear chromate
SBST-256-.625-Z	Inch	2-56	.625	.040	.085	.187	HRB 80 Max	.105	.144	.075	Heat treated carbon steel	Zinc with clear chromate
SBST-256-.750-Z	Inch	2-56	.750	.040	.085	.187	HRB 80 Max	.105	.144	.075	Heat treated carbon steel	Zinc with clear chromate
SBS4-440-.250-P	Inch	4-40	.250	.040	.111	.219	HRB 92 Max	.131	.176	.085	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-440-.312-P	Inch	4-40	.312	.040	.111	.219	HRB 92 Max	.131	.176	.085	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-440-.375-P	Inch	4-40	.375	.040	.111	.219	HRB 92 Max	.131	.176	.085	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-440-.500-P	Inch	4-40	.500	.040	.111	.219	HRB 92 Max	.131	.176	.085	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-440-.625-P	Inch	4-40	.625	.040	.111	.219	HRB 92 Max	.131	.176	.085	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-440-.750-P	Inch	4-40	.750	.040	.111	.219	HRB 92 Max	.131	.176	.085	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-440-.875-P	Inch	4-40	.875	.040	.111	.219	HRB 92 Max	.131	.176	.085	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-440-1.000-P	Inch	4-40	1.000	.040	.111	.219	HRB 92 Max	.131	.176	.085	400-Series heat treated stainless steel	Passivated and/or tested
SBAL-440-.250-PLN	Inch	4-40	.250	.040	.111	.219	HRB 50 Max	.135	.176	.085	Aluminum	Clean and dry
SBAL-440-.312-PLN	Inch	4-40	.312	.040	.111	.219	HRB 50 Max	.135	.176	.085	Aluminum	Clean and dry
SBAL-440-.375-PLN	Inch	4-40	.375	.040	.111	.219	HRB 50 Max	.135	.176	.085	Aluminum	Clean and dry
SBAL-440-.500-PLN	Inch	4-40	.500	.040	.111	.219	HRB 50 Max	.135	.176	.085	Aluminum	Clean and dry
SBAL-440-.625-PLN	Inch	4-40	.625	.040	.111	.219	HRB 50 Max	.135	.176	.085	Aluminum	Clean and dry
SBAL-440-.750-PLN	Inch	4-40	.750	.040	.111	.219	HRB 50 Max	.135	.176	.085	Aluminum	Clean and dry
SBAL-440-.875-PLN	Inch	4-40	.875	.040	.111	.219	HRB 50 Max	.135	.176	.085	Aluminum	Clean and dry
SBAL-440-1.000-PLN	Inch	4-40	1.000	.040	.111	.219	HRB 50 Max	.135	.176	.085	Aluminum	Clean and dry
SBAL-440-1.250-PLN	Inch	4-40	1.250	.040	.111	.219	HRB 50 Max	.135	.176	.085	Aluminum	Clean and dry
SBSS-440-.250-P	Inch	4-40	.250	.040	.111	.219	HRB 70 Max	.135	.176	.085	300-Series stainless steel	Passivated and/or tested
SBSS-440-.312-P	Inch	4-40	.312	.040	.111	.219	HRB 70 Max	.135	.176	.085	300-Series stainless steel	Passivated and/or tested
SBSS-440-.375-P	Inch	4-40	.375	.040	.111	.219	HRB 70 Max	.135	.176	.085	300-Series stainless steel	Passivated and/or tested
SBSS-440-.500-P	Inch	4-40	.500	.040	.111	.219	HRB 70 Max	.135	.176	.085	300-Series stainless steel	Passivated and/or tested
SBSS-440-.625-P	Inch	4-40	.625	.040	.111	.219	HRB 70 Max	.135	.176	.085	300-Series stainless steel	Passivated and/or tested
SBSS-440-.750-P	Inch	4-40	.750	.040	.111	.219	HRB 70 Max	.135	.176	.085	300-Series stainless steel	Passivated and/or tested
SBSS-440-.875-P	Inch	4-40	.875	.040	.111	.219	HRB 70 Max	.135	.176	.085	300-Series stainless steel	Passivated and/or tested
SBSS-440-1.000-P	Inch	4-40	1.000	.040	.111	.219	HRB 70 Max	.135	.176	.085	300-Series stainless steel	Passivated and/or tested
SBSS-440-1.250-P	Inch	4-40	1.250	.040	.111	.219	HRB 70 Max	.135	.176	.085	300-Series stainless steel	Passivated and/or tested
SBST-440-.250-Z	Inch	4-40	.250	.040	.111	.219	HRB 80 Max	.135	.176	.085	Heat treated carbon steel	Zinc with clear chromate
SBST-440-.312-Z	Inch	4-40	.312	.040	.111	.219	HRB 80 Max	.135	.176	.085	Heat treated carbon steel	Zinc with clear chromate
SBST-440-.375-Z	Inch	4-40	.375	.040	.111	.219	HRB 80 Max	.135	.176	.085	Heat treated carbon steel	Zinc with clear chromate
SBST-440-.500-Z	Inch	4-40	.500	.040	.111	.219	HRB 80 Max	.135	.176	.085	Heat treated carbon steel	Zinc with clear chromate
SBST-440-.625-Z	Inch	4-40	.625	.040	.111	.219	HRB 80 Max	.135	.176	.085	Heat treated carbon steel	Zinc with clear chromate
SBST-440-.750-Z	Inch	4-40	.750	.040	.111	.219	HRB 80 Max	.135	.176	.085	Heat treated carbon steel	Zinc with clear chromate
SBST-440-.875-Z	Inch	4-40	.875	.040	.111	.219	HRB 80 Max	.135	.176	.085	Heat treated carbon steel	Zinc with clear chromate
SBST-440-1.000-Z	Inch	4-40	1.000	.040	.111	.219	HRB 80 Max	.135	.176	.085	Heat treated carbon steel	Zinc with clear chromate
SBST-440-1.250-Z	Inch	4-40	1.250	.040	.111	.219	HRB 80 Max	.135	.176	.085	Heat treated carbon steel	Zinc with clear chromate
SBS4-632-.250-P	Inch	6-32	.250	.040	.137	.250	HRB 92 Max	.157	.206	.090	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-632-.312-P	Inch	6-32	.312	.040	.137	.250	HRB 92 Max	.157	.206	.090	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-632-.375-P	Inch	6-32	.375	.040	.137	.250	HRB 92 Max	.157	.206	.090	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-632-.500-P	Inch	6-32	.500	.040	.137	.250	HRB 92 Max	.157	.206	.090	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-632-.625-P	Inch	6-32	.625	.040	.137	.250	HRB 92 Max	.157	.206	.090	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-632-.750-P	Inch	6-32	.750	.040	.137	.250	HRB 92 Max	.157	.206	.090	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-632-.875-P	Inch	6-32	.875	.040	.137	.250	HRB 92 Max	.157	.206	.090	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-632-1.000-P	Inch	6-32	1.000	.040	.137	.250	HRB 92 Max	.157	.206	.090	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-632-1.250-P	Inch	6-32	1.250	.040	.137	.250	HRB 92 Max	.157	.206	.090	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-632-1.500-P	Inch	6-32	1.500	.040	.137	.250	HRB 92 Max	.157	.206	.090	400-Series heat treated stainless steel	Passivated and/or tested
SBAL-632-.250-PLN	Inch	6-32	.250	.040	.137	.250	HRB 50 Max	.160	.206	.090	Aluminum	Clean and dry
SBAL-632-.312-PLN	Inch	6-32	.312	.040	.137	.250	HRB 50 Max	.160	.206	.090	Aluminum	Clean and dry
SBAL-632-.375-PLN	Inch	6-32	.375	.040	.137	.250	HRB 50 Max	.160	.206	.090	Aluminum	Clean and dry
SBAL-632-.500-PLN	Inch	6-32	.500	.040	.137	.250	HRB 50 Max	.160	.206	.090	Aluminum	Clean and dry
SBAL-632-.625-PLN	Inch	6-32	.625	.040	.137	.250	HRB 50 Max	.160	.206	.090	Aluminum	Clean and dry
SBAL-632-.750-PLN	Inch	6-32	.750	.040	.137	.250	HRB 50 Max	.160	.206	.090	Aluminum	Clean and dry
SBAL-632-.875-PLN	Inch	6-32	.875	.040	.137	.250	HRB 50 Max	.160	.206	.090	Aluminum	Clean and dry
SBAL-632-1.000-PLN	Inch	6-32	1.000	.040	.137	.250	HRB 50 Max	.160	.206	.090	Aluminum	Clean and dry
SBAL-632-1.250-PLN	Inch	6-32	1.250	.040	.137	.250	HRB 50 Max	.160	.206	.090	Aluminum	Clean and dry
SBAL-632-1.500-PLN	Inch	6-32	1.500	.040	.137	.250	HRB 50 Max	.160	.206	.090	Aluminum	Clean and dry
SBSS-632-.250-P	Inch	6-32	.250	.040	.137	.250	HRB 70 Max	.160	.206	.090	300-Series stainless steel	Passivated and/or tested
SBSS-632-.312-P	Inch	6-32	.312	.040	.137	.250	HRB 70 Max	.160	.206	.090	300-Series stainless steel	Passivated and/or tested
SBSS-632-.375-P	Inch	6-32	.375	.040	.137	.250	HRB 70 Max	.160	.206	.090	300-Series stainless steel	Passivated and/or tested
SBSS-632-.500-P	Inch	6-32	.500	.040	.137	.250	HRB 70 Max	.160	.206	.090	300-Series stainless steel	Passivated and/or tested
SBSS-632-.625-P	Inch	6-32	.625	.040	.137	.250	HRB 70 Max	.160	.206	.090	300-Series stainless steel	Passivated and/or tested
SBSS-632-.750-P	Inch	6-32	.750	.040	.137	.250	HRB 70 Max	.160	.206	.090	300-Series stainless steel	Passivated and/or tested
SBSS-632-.875-P	Inch	6-32	.875	.040	.137	.250	HRB 70 Max	.160	.206	.090	300-Series stainless steel	Passivated and/or tested
SBSS-632-1.000-P	Inch	6-32	1.000	.040	.137	.250	HRB 70 Max	.160	.206	.090	300-Series stainless steel	Passivated and/or tested
SBSS-632-1.250-P	Inch	6-32	1.250	.040	.137	.250	HRB 70 Max	.160	.206	.090	300-Series stainless steel	Passivated and/or tested
SBSS-632-1.500-P	Inch	6-32	1.500	.040	.137	.250	HRB 70 Max	.160	.206	.090	300-Series stainless steel	Passivated and/or tested
SBST-632-.250-Z	Inch	6-32	.250	.040	.137	.250	HRB 80 Max	.160	.206	.090	Heat treated carbon steel	Zinc with clear chromate
SBST-632-.312-Z	Inch	6-32	.312	.040	.137	.250	HRB 80 Max	.160	.206	.090	Heat treated carbon steel	Zinc with clear chromate
SBST-632-.375-Z	Inch	6-32	.375	.040	.137	.250	HRB 80 Max	.160	.206	.090	Heat treated carbon steel	Zinc with clear chromate
SBST-632-.500-Z	Inch	6-32	.500	.040	.137	.250	HRB 80 Max	.160	.206	.090	Heat treated carbon steel	Zinc with clear chromate
SBST-632-.625-Z	Inch	6-32	.625	.040	.137	.250	HRB 80 Max	.160	.206	.090	Heat treated carbon steel	Zinc with clear chromate
SBST-632-.750-Z	Inch	6-32	.750	.040	.137	.250	HRB 80 Max	.160	.206	.090	Heat treated carbon steel	Zinc with clear chromate
SBST-632-.875-Z	Inch	6-32	.875	.040	.137	.250	HRB 80 Max	.160	.206	.090	Heat treated carbon steel	Zinc with clear chromate
SBST-632-1.000-Z	Inch	6-32	1.000	.040	.137	.250	HRB 80 Max	.160	.206	.090	Heat treated carbon steel	Zinc with clear chromate
SBST-632-1.250-Z	Inch	6-32	1.250	.040	.137	.250	HRB 80 Max	.160	.206	.090	Heat treated carbon steel	Zinc with clear chromate
SBST-632-1.500-Z	Inch	6-32	1.500	.040	.137	.250	HRB 80 Max	.160	.206	.090	Heat treated carbon steel	Zinc with clear chromate
SBS4-832-.250-P	Inch	8-32	.250	.040	.163	.281	HRB 92 Max	.183	.237	.090	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-832-.312-P	Inch	8-32	.312	.040	.163	.281	HRB 92 Max	.183	.237	.090	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-832-.375-P	Inch	8-32	.375	.040	.163	.281	HRB 92 Max	.183	.237	.090	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-832-.500-P	Inch	8-32	.500	.040	.163	.281	HRB 92 Max	.183	.237	.090	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-832-.625-P	Inch	8-32	.625	.040	.163	.281	HRB 92 Max	.183	.237	.090	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-832-.750-P	Inch	8-32	.750	.040	.163	.281	HRB 92 Max	.183	.237	.090	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-832-.875-P	Inch	8-32	.875	.040	.163	.281	HRB 92 Max	.183	.237	.090	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-832-1.000-P	Inch	8-32	1.000	.040	.163	.281	HRB 92 Max	.183	.237	.090	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-832-1.250-P	Inch	8-32	1.250	.040	.163	.281	HRB 92 Max	.183	.237	.090	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-832-1.500-P	Inch	8-32	1.500	.040	.163	.281	HRB 92 Max	.183	.237	.090	400-Series heat treated stainless steel	Passivated and/or tested
SBAL-832-.250-PLN	Inch	8-32	.250	.040	.163	.281	HRB 50 Max	.185	.237	.090	Aluminum	Clean and dry
SBAL-832-.312-PLN	Inch	8-32	.312	.040	.163	.281	HRB 50 Max	.185	.237	.090	Aluminum	Clean and dry
SBAL-832-.375-PLN	Inch	8-32	.375	.040	.163	.281	HRB 50 Max	.185	.237	.090	Aluminum	Clean and dry
SBAL-832-.500-PLN	Inch	8-32	.500	.040	.163	.281	HRB 50 Max	.185	.237	.090	Aluminum	Clean and dry
SBAL-832-.625-PLN	Inch	8-32	.625	.040	.163	.281	HRB 50 Max	.185	.237	.090	Aluminum	Clean and dry
SBAL-832-.750-PLN	Inch	8-32	.750	.040	.163	.281	HRB 50 Max	.185	.237	.090	Aluminum	Clean and dry
SBAL-832-.875-PLN	Inch	8-32	.875	.040	.163	.281	HRB 50 Max	.185	.237	.090	Aluminum	Clean and dry
SBAL-832-1.000-PLN	Inch	8-32	1.000	.040	.163	.281	HRB 50 Max	.185	.237	.090	Aluminum	Clean and dry
SBAL-832-1.250-PLN	Inch	8-32	1.250	.040	.163	.281	HRB 50 Max	.185	.237	.090	Aluminum	Clean and dry
SBAL-832-1.500-PLN	Inch	8-32	1.500	.040	.163	.281	HRB 50 Max	.185	.237	.090	Aluminum	Clean and dry
SBSS-832-.250-P	Inch	8-32	.250	.040	.163	.281	HRB 70 Max	.185	.237	.090	300-Series stainless steel	Passivated and/or tested
SBSS-832-.312-P	Inch	8-32	.312	.040	.163	.281	HRB 70 Max	.185	.237	.090	300-Series stainless steel	Passivated and/or tested
SBSS-832-.375-P	Inch	8-32	.375	.040	.163	.281	HRB 70 Max	.185	.237	.090	300-Series stainless steel	Passivated and/or tested
SBSS-832-.500-P	Inch	8-32	.500	.040	.163	.281	HRB 70 Max	.185	.237	.090	300-Series stainless steel	Passivated and/or tested
SBSS-832-.625-P	Inch	8-32	.625	.040	.163	.281	HRB 70 Max	.185	.237	.090	300-Series stainless steel	Passivated and/or tested
SBSS-832-.750-P	Inch	8-32	.750	.040	.163	.281	HRB 70 Max	.185	.237	.090	300-Series stainless steel	Passivated and/or tested
SBSS-832-.875-P	Inch	8-32	.875	.040	.163	.281	HRB 70 Max	.185	.237	.090	300-Series stainless steel	Passivated and/or tested
SBSS-832-1.000-P	Inch	8-32	1.000	.040	.163	.281	HRB 70 Max	.185	.237	.090	300-Series stainless steel	Passivated and/or tested
SBSS-832-1.250-P	Inch	8-32	1.250	.040	.163	.281	HRB 70 Max	.185	.237	.090	300-Series stainless steel	Passivated and/or tested
SBSS-832-1.500-P	Inch	8-32	1.500	.040	.163	.281	HRB 70 Max	.185	.237	.090	300-Series stainless steel	Passivated and/or tested
SBST-832-.250-Z	Inch	8-32	.250	.040	.163	.281	HRB 80 Max	.185	.237	.090	Heat treated carbon steel	Zinc with clear chromate
SBST-832-.312-Z	Inch	8-32	.312	.040	.163	.281	HRB 80 Max	.185	.237	.090	Heat treated carbon steel	Zinc with clear chromate
SBST-832-.375-Z	Inch	8-32	.375	.040	.163	.281	HRB 80 Max	.185	.237	.090	Heat treated carbon steel	Zinc with clear chromate
SBST-832-.500-Z	Inch	8-32	.500	.040	.163	.281	HRB 80 Max	.185	.237	.090	Heat treated carbon steel	Zinc with clear chromate
SBST-832-.625-Z	Inch	8-32	.625	.040	.163	.281	HRB 80 Max	.185	.237	.090	Heat treated carbon steel	Zinc with clear chromate
SBST-832-.750-Z	Inch	8-32	.750	.040	.163	.281	HRB 80 Max	.185	.237	.090	Heat treated carbon steel	Zinc with clear chromate
SBST-832-.875-Z	Inch	8-32	.875	.040	.163	.281	HRB 80 Max	.185	.237	.090	Heat treated carbon steel	Zinc with clear chromate
SBST-832-1.000-Z	Inch	8-32	1.000	.040	.163	.281	HRB 80 Max	.185	.237	.090	Heat treated carbon steel	Zinc with clear chromate
SBST-832-1.250-Z	Inch	8-32	1.250	.040	.163	.281	HRB 80 Max	.185	.237	.090	Heat treated carbon steel	Zinc with clear chromate
SBST-832-1.500-Z	Inch	8-32	1.500	.040	.163	.281	HRB 80 Max	.185	.237	.090	Heat treated carbon steel	Zinc with clear chromate
SBAL-1024-.312-PLN	Inch	10-24	.312	.040	.189	.281	HRB 50 Max	.210	.256	.100	Aluminum	Clean and dry
SBAL-1024-.375-PLN	Inch	10-24	.375	.040	.189	.281	HRB 50 Max	.210	.256	.100	Aluminum	Clean and dry
SBAL-1024-.500-PLN	Inch	10-24	.500	.040	.189	.281	HRB 50 Max	.210	.256	.100	Aluminum	Clean and dry
SBAL-1024-.625-PLN	Inch	10-24	.625	.040	.189	.281	HRB 50 Max	.210	.256	.100	Aluminum	Clean and dry
SBAL-1024-.750-PLN	Inch	10-24	.750	.040	.189	.281	HRB 50 Max	.210	.256	.100	Aluminum	Clean and dry
SBAL-1024-.875-PLN	Inch	10-24	.875	.040	.189	.281	HRB 50 Max	.210	.256	.100	Aluminum	Clean and dry
SBAL-1024-1.000-PLN	Inch	10-24	1.000	.040	.189	.281	HRB 50 Max	.210	.256	.100	Aluminum	Clean and dry
SBAL-1024-1.250-PLN	Inch	10-24	1.250	.040	.189	.281	HRB 50 Max	.210	.256	.100	Aluminum	Clean and dry
SBAL-1024-1.500-PLN	Inch	10-24	1.500	.040	.189	.281	HRB 50 Max	.210	.256	.100	Aluminum	Clean and dry
SBSS-1024-.312-P	Inch	10-24	.312	.040	.189	.281	HRB 70 Max	.210	.256	.100	300-Series stainless steel	Passivated and/or tested
SBSS-1024-.375-P	Inch	10-24	.375	.040	.189	.281	HRB 70 Max	.210	.256	.100	300-Series stainless steel	Passivated and/or tested
SBSS-1024-.500-P	Inch	10-24	.500	.040	.189	.281	HRB 70 Max	.210	.256	.100	300-Series stainless steel	Passivated and/or tested
SBSS-1024-.625-P	Inch	10-24	.625	.040	.189	.281	HRB 70 Max	.210	.256	.100	300-Series stainless steel	Passivated and/or tested
SBSS-1024-.750-P	Inch	10-24	.750	.040	.189	.281	HRB 70 Max	.210	.256	.100	300-Series stainless steel	Passivated and/or tested
SBSS-1024-.875-P	Inch	10-24	.875	.040	.189	.281	HRB 70 Max	.210	.256	.100	300-Series stainless steel	Passivated and/or tested
SBSS-1024-1.000-P	Inch	10-24	1.000	.040	.189	.281	HRB 70 Max	.210	.256	.100	300-Series stainless steel	Passivated and/or tested
SBSS-1024-1.250-P	Inch	10-24	1.250	.040	.189	.281	HRB 70 Max	.210	.256	.100	300-Series stainless steel	Passivated and/or tested
SBSS-1024-1.500-P	Inch	10-24	1.500	.040	.189	.281	HRB 70 Max	.210	.256	.100	300-Series stainless steel	Passivated and/or tested
SBST-1024-.312-Z	Inch	10-24	.312	.040	.189	.281	HRB 80 Max	.210	.256	.100	Heat treated carbon steel	Zinc with clear chromate
SBST-1024-.375-Z	Inch	10-24	.375	.040	.189	.281	HRB 80 Max	.210	.256	.100	Heat treated carbon steel	Zinc with clear chromate
SBST-1024-.500-Z	Inch	10-24	.500	.040	.189	.281	HRB 80 Max	.210	.256	.100	Heat treated carbon steel	Zinc with clear chromate
SBST-1024-.625-Z	Inch	10-24	.625	.040	.189	.281	HRB 80 Max	.210	.256	.100	Heat treated carbon steel	Zinc with clear chromate
SBST-1024-.750-Z	Inch	10-24	.750	.040	.189	.281	HRB 80 Max	.210	.256	.100	Heat treated carbon steel	Zinc with clear chromate
SBST-1024-.875-Z	Inch	10-24	.875	.040	.189	.281	HRB 80 Max	.210	.256	.100	Heat treated carbon steel	Zinc with clear chromate
SBST-1024-1.000-Z	Inch	10-24	1.000	.040	.189	.281	HRB 80 Max	.210	.256	.100	Heat treated carbon steel	Zinc with clear chromate
SBST-1024-1.250-Z	Inch	10-24	1.250	.040	.189	.281	HRB 80 Max	.210	.256	.100	Heat treated carbon steel	Zinc with clear chromate
SBST-1024-1.500-Z	Inch	10-24	1.500	.040	.189	.281	HRB 80 Max	.210	.256	.100	Heat treated carbon steel	Zinc with clear chromate
SBS4-1032-.312-P	Inch	10-32	.312	.040	.189	.281	HRB 92 Max	.209	.256	.100	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-1032-.375-P	Inch	10-32	.375	.040	.189	.281	HRB 92 Max	.209	.256	.100	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-1032-.500-P	Inch	10-32	.500	.040	.189	.281	HRB 92 Max	.209	.256	.100	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-1032-.625-P	Inch	10-32	.625	.040	.189	.281	HRB 92 Max	.209	.256	.100	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-1032-.750-P	Inch	10-32	.750	.040	.189	.281	HRB 92 Max	.209	.256	.100	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-1032-.875-P	Inch	10-32	.875	.040	.189	.281	HRB 92 Max	.209	.256	.100	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-1032-1.000-P	Inch	10-32	1.000	.040	.189	.281	HRB 92 Max	.209	.256	.100	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-1032-1.250-P	Inch	10-32	1.250	.040	.189	.281	HRB 92 Max	.209	.256	.100	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-1032-1.500-P	Inch	10-32	1.500	.040	.189	.281	HRB 92 Max	.209	.256	.100	400-Series heat treated stainless steel	Passivated and/or tested
SBAL-1032-.312-PLN	Inch	10-32	.312	.040	.189	.281	HRB 50 Max	.210	.256	.100	Aluminum	Clean and dry
SBAL-1032-.375-PLN	Inch	10-32	.375	.040	.189	.281	HRB 50 Max	.210	.256	.100	Aluminum	Clean and dry
SBAL-1032-.500-PLN	Inch	10-32	.500	.040	.189	.281	HRB 50 Max	.210	.256	.100	Aluminum	Clean and dry
SBAL-1032-.625-PLN	Inch	10-32	.625	.040	.189	.281	HRB 50 Max	.210	.256	.100	Aluminum	Clean and dry
SBAL-1032-.750-PLN	Inch	10-32	.750	.040	.189	.281	HRB 50 Max	.210	.256	.100	Aluminum	Clean and dry
SBAL-1032-.875-PLN	Inch	10-32	.875	.040	.189	.281	HRB 50 Max	.210	.256	.100	Aluminum	Clean and dry
SBAL-1032-1.000-PLN	Inch	10-32	1.000	.040	.189	.281	HRB 50 Max	.210	.256	.100	Aluminum	Clean and dry
SBAL-1032-1.250-PLN	Inch	10-32	1.250	.040	.189	.281	HRB 50 Max	.210	.256	.100	Aluminum	Clean and dry
SBAL-1032-1.500-PLN	Inch	10-32	1.500	.040	.189	.281	HRB 50 Max	.210	.256	.100	Aluminum	Clean and dry
SBSS-1032-.312-P	Inch	10-32	.312	.040	.189	.281	HRB 70 Max	.210	.256	.100	300-Series stainless steel	Passivated and/or tested
SBSS-1032-.375-P	Inch	10-32	.375	.040	.189	.281	HRB 70 Max	.210	.256	.100	300-Series stainless steel	Passivated and/or tested
SBSS-1032-.500-P	Inch	10-32	.500	.040	.189	.281	HRB 70 Max	.210	.256	.100	300-Series stainless steel	Passivated and/or tested
SBSS-1032-.625-P	Inch	10-32	.625	.040	.189	.281	HRB 70 Max	.210	.256	.100	300-Series stainless steel	Passivated and/or tested
SBSS-1032-.750-P	Inch	10-32	.750	.040	.189	.281	HRB 70 Max	.210	.256	.100	300-Series stainless steel	Passivated and/or tested
SBSS-1032-.875-P	Inch	10-32	.875	.040	.189	.281	HRB 70 Max	.210	.256	.100	300-Series stainless steel	Passivated and/or tested
SBSS-1032-1.000-P	Inch	10-32	1.000	.040	.189	.281	HRB 70 Max	.210	.256	.100	300-Series stainless steel	Passivated and/or tested
SBSS-1032-1.250-P	Inch	10-32	1.250	.040	.189	.281	HRB 70 Max	.210	.256	.100	300-Series stainless steel	Passivated and/or tested
SBSS-1032-1.500-P	Inch	10-32	1.500	.040	.189	.281	HRB 70 Max	.210	.256	.100	300-Series stainless steel	Passivated and/or tested
SBST-1032-.312-Z	Inch	10-32	.312	.040	.189	.281	HRB 80 Max	.210	.256	.100	Heat treated carbon steel	Zinc with clear chromate
SBST-1032-.375-Z	Inch	10-32	.375	.040	.189	.281	HRB 80 Max	.210	.256	.100	Heat treated carbon steel	Zinc with clear chromate
SBST-1032-.500-Z	Inch	10-32	.500	.040	.189	.281	HRB 80 Max	.210	.256	.100	Heat treated carbon steel	Zinc with clear chromate
SBST-1032-.625-Z	Inch	10-32	.625	.040	.189	.281	HRB 80 Max	.210	.256	.100	Heat treated carbon steel	Zinc with clear chromate
SBST-1032-.750-Z	Inch	10-32	.750	.040	.189	.281	HRB 80 Max	.210	.256	.100	Heat treated carbon steel	Zinc with clear chromate
SBST-1032-.875-Z	Inch	10-32	.875	.040	.189	.281	HRB 80 Max	.210	.256	.100	Heat treated carbon steel	Zinc with clear chromate
SBST-1032-1.000-Z	Inch	10-32	1.000	.040	.189	.281	HRB 80 Max	.210	.256	.100	Heat treated carbon steel	Zinc with clear chromate
SBST-1032-1.250-Z	Inch	10-32	1.250	.040	.189	.281	HRB 80 Max	.210	.256	.100	Heat treated carbon steel	Zinc with clear chromate
SBST-1032-1.500-Z	Inch	10-32	1.500	.040	.189	.281	HRB 80 Max	.210	.256	.100	Heat treated carbon steel	Zinc with clear chromate
SBS4-2520-.375-P	Inch	1/4-20	.375	.062	.249	.312	HRB 92 Max	.269	.337	.135	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-2520-.500-P	Inch	1/4-20	.500	.062	.249	.312	HRB 92 Max	.269	.337	.135	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-2520-.625-P	Inch	1/4-20	.625	.062	.249	.312	HRB 92 Max	.269	.337	.135	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-2520-.750-P	Inch	1/4-20	.750	.062	.249	.312	HRB 92 Max	.269	.337	.135	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-2520-.875-P	Inch	1/4-20	.875	.062	.249	.312	HRB 92 Max	.269	.337	.135	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-2520-1.000-P	Inch	1/4-20	1.000	.062	.249	.312	HRB 92 Max	.269	.337	.135	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-2520-1.250-P	Inch	1/4-20	1.250	.062	.249	.312	HRB 92 Max	.269	.337	.135	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-2520-1.500-P	Inch	1/4-20	1.500	.062	.249	.312	HRB 92 Max	.269	.337	.135	400-Series heat treated stainless steel	Passivated and/or tested
SBAL-2520-.375-PLN	Inch	1/4-20	.375	.062	.249	.312	HRB 50 Max	.270	.337	.135	Aluminum	Clean and dry
SBAL-2520-.500-PLN	Inch	1/4-20	.500	.062	.249	.312	HRB 50 Max	.270	.337	.135	Aluminum	Clean and dry
SBAL-2520-.625-PLN	Inch	1/4-20	.625	.062	.249	.312	HRB 50 Max	.270	.337	.135	Aluminum	Clean and dry
SBAL-2520-.750-PLN	Inch	1/4-20	.750	.062	.249	.312	HRB 50 Max	.270	.337	.135	Aluminum	Clean and dry
SBAL-2520-.875-PLN	Inch	1/4-20	.875	.062	.249	.312	HRB 50 Max	.270	.337	.135	Aluminum	Clean and dry
SBAL-2520-1.000-PLN	Inch	1/4-20	1.000	.062	.249	.312	HRB 50 Max	.270	.337	.135	Aluminum	Clean and dry
SBAL-2520-1.250-PLN	Inch	1/4-20	1.250	.062	.249	.312	HRB 50 Max	.270	.337	.135	Aluminum	Clean and dry
SBAL-2520-1.500-PLN	Inch	1/4-20	1.500	.062	.249	.312	HRB 50 Max	.270	.337	.135	Aluminum	Clean and dry
SBSS-2520-.375-P	Inch	1/4-20	.375	.062	.249	.312	HRB 70 Max	.270	.337	.135	300-Series stainless steel	Passivated and/or tested
SBSS-2520-.500-P	Inch	1/4-20	.500	.062	.249	.312	HRB 70 Max	.270	.337	.135	300-Series stainless steel	Passivated and/or tested
SBSS-2520-.625-P	Inch	1/4-20	.625	.062	.249	.312	HRB 70 Max	.270	.337	.135	300-Series stainless steel	Passivated and/or tested
SBSS-2520-.750-P	Inch	1/4-20	.750	.062	.249	.312	HRB 70 Max	.270	.337	.135	300-Series stainless steel	Passivated and/or tested
SBSS-2520-.875-P	Inch	1/4-20	.875	.062	.249	.312	HRB 70 Max	.270	.337	.135	300-Series stainless steel	Passivated and/or tested
SBSS-2520-1.000-P	Inch	1/4-20	1.000	.062	.249	.312	HRB 70 Max	.270	.337	.135	300-Series stainless steel	Passivated and/or tested
SBSS-2520-1.250-P	Inch	1/4-20	1.250	.062	.249	.312	HRB 70 Max	.270	.337	.135	300-Series stainless steel	Passivated and/or tested
SBSS-2520-1.500-P	Inch	1/4-20	1.500	.062	.249	.312	HRB 70 Max	.270	.337	.135	300-Series stainless steel	Passivated and/or tested
SBST-2520-.375-Z	Inch	1/4-20	.375	.062	.249	.312	HRB 80 Max	.270	.337	.135	Heat treated carbon steel	Zinc with clear chromate
SBST-2520-.500-Z	Inch	1/4-20	.500	.062	.249	.312	HRB 80 Max	.270	.337	.135	Heat treated carbon steel	Zinc with clear chromate
SBST-2520-.625-Z	Inch	1/4-20	.625	.062	.249	.312	HRB 80 Max	.270	.337	.135	Heat treated carbon steel	Zinc with clear chromate
SBST-2520-.750-Z	Inch	1/4-20	.750	.062	.249	.312	HRB 80 Max	.270	.337	.135	Heat treated carbon steel	Zinc with clear chromate
SBST-2520-.875-Z	Inch	1/4-20	.875	.062	.249	.312	HRB 80 Max	.270	.337	.135	Heat treated carbon steel	Zinc with clear chromate
SBST-2520-1.000-Z	Inch	1/4-20	1.000	.062	.249	.312	HRB 80 Max	.270	.337	.135	Heat treated carbon steel	Zinc with clear chromate
SBST-2520-1.250-Z	Inch	1/4-20	1.250	.062	.249	.312	HRB 80 Max	.270	.337	.135	Heat treated carbon steel	Zinc with clear chromate
SBST-2520-1.500-Z	Inch	1/4-20	1.500	.062	.249	.312	HRB 80 Max	.270	.337	.135	Heat treated carbon steel	Zinc with clear chromate
SBSS-3118-.500-P	Inch	5/16-18	.500	.093	.311	.375	HRB 70 Max	.333	.376	.160	300-Series stainless steel	Passivated and/or tested
SBSS-3118-.625-P	Inch	5/16-18	.625	.093	.311	.375	HRB 70 Max	.333	.376	.160	300-Series stainless steel	Passivated and/or tested
SBSS-3118-.750-P	Inch	5/16-18	.750	.093	.311	.375	HRB 70 Max	.333	.376	.160	300-Series stainless steel	Passivated and/or tested
SBSS-3118-.875-P	Inch	5/16-18	.875	.093	.311	.375	HRB 70 Max	.333	.376	.160	300-Series stainless steel	Passivated and/or tested
SBSS-3118-1.000-P	Inch	5/16-18	1.000	.093	.311	.375	HRB 70 Max	.333	.376	.160	300-Series stainless steel	Passivated and/or tested
SBSS-3118-1.250-P	Inch	5/16-18	1.250	.093	.311	.375	HRB 70 Max	.333	.376	.160	300-Series stainless steel	Passivated and/or tested
SBSS-3118-1.500-P	Inch	5/16-18	1.500	.093	.311	.375	HRB 70 Max	.333	.376	.160	300-Series stainless steel	Passivated and/or tested
SBST-3118-.500-Z	Inch	5/16-18	.500	.093	.311	.375	HRB 80 Max	.333	.376	.160	Heat treated carbon steel	Zinc with clear chromate
SBST-3118-.625-Z	Inch	5/16-18	.625	.093	.311	.375	HRB 80 Max	.333	.376	.160	Heat treated carbon steel	Zinc with clear chromate
SBST-3118-.750-Z	Inch	5/16-18	.750	.093	.311	.375	HRB 80 Max	.333	.376	.160	Heat treated carbon steel	Zinc with clear chromate
SBST-3118-.875-Z	Inch	5/16-18	.875	.093	.311	.375	HRB 80 Max	.333	.376	.160	Heat treated carbon steel	Zinc with clear chromate
SBST-3118-1.000-Z	Inch	5/16-18	1.000	.093	.311	.375	HRB 80 Max	.333	.376	.160	Heat treated carbon steel	Zinc with clear chromate
SBST-3118-1.250-Z	Inch	5/16-18	1.250	.093	.311	.375	HRB 80 Max	.333	.376	.160	Heat treated carbon steel	Zinc with clear chromate
SBST-3118-1.500-Z	Inch	5/16-18	1.500	.093	.311	.375	HRB 80 Max	.333	.376	.160	Heat treated carbon steel	Zinc with clear chromate
SBST-M2.5-6-Z	Metric	M2.5 x 0.45	6	1.00	2.50	5.40	HRB 80 Max	3.1	4.1	1.95	Heat treated carbon steel	Zinc with clear chromate
SBST-M2.5-8-Z	Metric	M2.5 x 0.45	8	1.00	2.50	5.40	HRB 80 Max	3.1	4.1	1.95	Heat treated carbon steel	Zinc with clear chromate
SBST-M2.5-10-Z	Metric	M2.5 x 0.45	10	1.00	2.50	5.40	HRB 80 Max	3.1	4.1	1.95	Heat treated carbon steel	Zinc with clear chromate
SBST-M2.5-12-Z	Metric	M2.5 x 0.45	12	1.00	2.50	5.40	HRB 80 Max	3.1	4.1	1.95	Heat treated carbon steel	Zinc with clear chromate
SBST-M2.5-15-Z	Metric	M2.5 x 0.45	15	1.00	2.50	5.40	HRB 80 Max	3.1	4.1	1.95	Heat treated carbon steel	Zinc with clear chromate
SBST-M2.5-18-Z	Metric	M2.5 x 0.45	18	1.00	2.50	5.40	HRB 80 Max	3.1	4.1	1.95	Heat treated carbon steel	Zinc with clear chromate
SBSS-M2.5-6-P	Metric	M2.5 x 0.45	6	1.00	2.50	5.40	HRB 70 Max	3.1	4.1	1.95	300-Series stainless steel	Passivated and/or tested
SBSS-M2.5-8-P	Metric	M2.5 x 0.45	8	1.00	2.50	5.40	HRB 70 Max	3.1	4.1	1.95	300-Series stainless steel	Passivated and/or tested
SBSS-M2.5-10-P	Metric	M2.5 x 0.45	10	1.00	2.50	5.40	HRB 70 Max	3.1	4.1	1.95	300-Series stainless steel	Passivated and/or tested
SBSS-M2.5-12-P	Metric	M2.5 x 0.45	12	1.00	2.50	5.40	HRB 70 Max	3.1	4.1	1.95	300-Series stainless steel	Passivated and/or tested
SBSS-M2.5-15-P	Metric	M2.5 x 0.45	15	1.00	2.50	5.40	HRB 70 Max	3.1	4.1	1.95	300-Series stainless steel	Passivated and/or tested
SBSS-M2.5-18-P	Metric	M2.5 x 0.45	18	1.00	2.50	5.40	HRB 70 Max	3.1	4.1	1.95	300-Series stainless steel	Passivated and/or tested
SBAL-M2.5-6-PLN	Metric	M2.5 x 0.45	6	1.00	2.50	5.40	HRB 50 Max	3.1	4.1	1.95	Aluminum	Clean and dry
SBAL-M2.5-8-PLN	Metric	M2.5 x 0.45	8	1.00	2.50	5.40	HRB 50 Max	3.1	4.1	1.95	Aluminum	Clean and dry
SBAL-M2.5-10-PLN	Metric	M2.5 x 0.45	10	1.00	2.50	5.40	HRB 50 Max	3.1	4.1	1.95	Aluminum	Clean and dry
SBAL-M2.5-12-PLN	Metric	M2.5 x 0.45	12	1.00	2.50	5.40	HRB 50 Max	3.1	4.1	1.95	Aluminum	Clean and dry
SBAL-M2.5-15-PLN	Metric	M2.5 x 0.45	15	1.00	2.50	5.40	HRB 50 Max	3.1	4.1	1.95	Aluminum	Clean and dry
SBAL-M2.5-18-PLN	Metric	M2.5 x 0.45	18	1.00	2.50	5.40	HRB 50 Max	3.1	4.1	1.95	Aluminum	Clean and dry
SBS4-M3-6-P	Metric	M3 x 0.5	6	1.00	3.00	5.60	HRB 92 Max	3.3	4.6	2.10	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M3-8-P	Metric	M3 x 0.5	8	1.00	3.00	5.60	HRB 92 Max	3.3	4.6	2.10	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M3-10-P	Metric	M3 x 0.5	10	1.00	3.00	5.60	HRB 92 Max	3.3	4.6	2.10	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M3-12-P	Metric	M3 x 0.5	12	1.00	3.00	5.60	HRB 92 Max	3.3	4.6	2.10	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M3-15-P	Metric	M3 x 0.5	15	1.00	3.00	5.60	HRB 92 Max	3.3	4.6	2.10	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M3-18-P	Metric	M3 x 0.5	18	1.00	3.00	5.60	HRB 92 Max	3.3	4.6	2.10	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M3-20-P	Metric	M3 x 0.5	20	1.00	3.00	5.60	HRB 92 Max	3.3	4.6	2.10	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M3-25-P	Metric	M3 x 0.5	25	1.00	3.00	5.60	HRB 92 Max	3.3	4.6	2.10	400-Series heat treated stainless steel	Passivated and/or tested
SBST-M3-6-Z	Metric	M3 x 0.5	6	1.00	3.00	5.60	HRB 80 Max	3.6	4.6	2.10	Heat treated carbon steel	Zinc with clear chromate
SBST-M3-8-Z	Metric	M3 x 0.5	8	1.00	3.00	5.60	HRB 80 Max	3.6	4.6	2.10	Heat treated carbon steel	Zinc with clear chromate
SBST-M3-10-Z	Metric	M3 x 0.5	10	1.00	3.00	5.60	HRB 80 Max	3.6	4.6	2.10	Heat treated carbon steel	Zinc with clear chromate
SBST-M3-12-Z	Metric	M3 x 0.5	12	1.00	3.00	5.60	HRB 80 Max	3.6	4.6	2.10	Heat treated carbon steel	Zinc with clear chromate
SBST-M3-15-Z	Metric	M3 x 0.5	15	1.00	3.00	5.60	HRB 80 Max	3.6	4.6	2.10	Heat treated carbon steel	Zinc with clear chromate
SBST-M3-18-Z	Metric	M3 x 0.5	18	1.00	3.00	5.60	HRB 80 Max	3.6	4.6	2.10	Heat treated carbon steel	Zinc with clear chromate
SBST-M3-20-Z	Metric	M3 x 0.5	20	1.00	3.00	5.60	HRB 80 Max	3.6	4.6	2.10	Heat treated carbon steel	Zinc with clear chromate
SBST-M3-25-Z	Metric	M3 x 0.5	25	1.00	3.00	5.60	HRB 80 Max	3.6	4.6	2.10	Heat treated carbon steel	Zinc with clear chromate
SBSS-M3-6-P	Metric	M3 x 0.5	6	1.00	3.00	5.60	HRB 70 Max	3.6	4.6	2.10	300-Series stainless steel	Passivated and/or tested
SBSS-M3-8-P	Metric	M3 x 0.5	8	1.00	3.00	5.60	HRB 70 Max	3.6	4.6	2.10	300-Series stainless steel	Passivated and/or tested
SBSS-M3-10-P	Metric	M3 x 0.5	10	1.00	3.00	5.60	HRB 70 Max	3.6	4.6	2.10	300-Series stainless steel	Passivated and/or tested
SBSS-M3-12-P	Metric	M3 x 0.5	12	1.00	3.00	5.60	HRB 70 Max	3.6	4.6	2.10	300-Series stainless steel	Passivated and/or tested
SBSS-M3-15-P	Metric	M3 x 0.5	15	1.00	3.00	5.60	HRB 70 Max	3.6	4.6	2.10	300-Series stainless steel	Passivated and/or tested
SBSS-M3-18-P	Metric	M3 x 0.5	18	1.00	3.00	5.60	HRB 70 Max	3.6	4.6	2.10	300-Series stainless steel	Passivated and/or tested
SBSS-M3-20-P	Metric	M3 x 0.5	20	1.00	3.00	5.60	HRB 70 Max	3.6	4.6	2.10	300-Series stainless steel	Passivated and/or tested
SBSS-M3-25-P	Metric	M3 x 0.5	25	1.00	3.00	5.60	HRB 70 Max	3.6	4.6	2.10	300-Series stainless steel	Passivated and/or tested
SBAL-M3-6-PLN	Metric	M3 x 0.5	6	1.00	3.00	5.60	HRB 50 Max	3.6	4.6	2.10	Aluminum	Clean and dry
SBAL-M3-8-PLN	Metric	M3 x 0.5	8	1.00	3.00	5.60	HRB 50 Max	3.6	4.6	2.10	Aluminum	Clean and dry
SBAL-M3-10-PLN	Metric	M3 x 0.5	10	1.00	3.00	5.60	HRB 50 Max	3.6	4.6	2.10	Aluminum	Clean and dry
SBAL-M3-12-PLN	Metric	M3 x 0.5	12	1.00	3.00	5.60	HRB 50 Max	3.6	4.6	2.10	Aluminum	Clean and dry
SBAL-M3-15-PLN	Metric	M3 x 0.5	15	1.00	3.00	5.60	HRB 50 Max	3.6	4.6	2.10	Aluminum	Clean and dry
SBAL-M3-18-PLN	Metric	M3 x 0.5	18	1.00	3.00	5.60	HRB 50 Max	3.6	4.6	2.10	Aluminum	Clean and dry
SBAL-M3-20-PLN	Metric	M3 x 0.5	20	1.00	3.00	5.60	HRB 50 Max	3.6	4.6	2.10	Aluminum	Clean and dry
SBAL-M3-25-PLN	Metric	M3 x 0.5	25	1.00	3.00	5.60	HRB 50 Max	3.6	4.6	2.10	Aluminum	Clean and dry
SBST-M3.5-6-Z	Metric	M3.5 x 0.6	6	1.00	3.50	6.40	HRB 80 Max	4.1	5.3	2.25	Heat treated carbon steel	Zinc with clear chromate
SBST-M3.5-8-Z	Metric	M3.5 x 0.6	8	1.00	3.50	6.40	HRB 80 Max	4.1	5.3	2.25	Heat treated carbon steel	Zinc with clear chromate
SBST-M3.5-10-Z	Metric	M3.5 x 0.6	10	1.00	3.50	6.40	HRB 80 Max	4.1	5.3	2.25	Heat treated carbon steel	Zinc with clear chromate
SBST-M3.5-12-Z	Metric	M3.5 x 0.6	12	1.00	3.50	6.40	HRB 80 Max	4.1	5.3	2.25	Heat treated carbon steel	Zinc with clear chromate
SBST-M3.5-15-Z	Metric	M3.5 x 0.6	15	1.00	3.50	6.40	HRB 80 Max	4.1	5.3	2.25	Heat treated carbon steel	Zinc with clear chromate
SBST-M3.5-18-Z	Metric	M3.5 x 0.6	18	1.00	3.50	6.40	HRB 80 Max	4.1	5.3	2.25	Heat treated carbon steel	Zinc with clear chromate
SBST-M3.5-20-Z	Metric	M3.5 x 0.6	20	1.00	3.50	6.40	HRB 80 Max	4.1	5.3	2.25	Heat treated carbon steel	Zinc with clear chromate
SBST-M3.5-25-Z	Metric	M3.5 x 0.6	25	1.00	3.50	6.40	HRB 80 Max	4.1	5.3	2.25	Heat treated carbon steel	Zinc with clear chromate
SBST-M3.5-30-Z	Metric	M3.5 x 0.6	30	1.00	3.50	6.40	HRB 80 Max	4.1	5.3	2.25	Heat treated carbon steel	Zinc with clear chromate
SBSS-M3.5-6-P	Metric	M3.5 x 0.6	6	1.00	3.50	6.40	HRB 70 Max	4.1	5.3	2.25	300-Series stainless steel	Passivated and/or tested
SBSS-M3.5-8-P	Metric	M3.5 x 0.6	8	1.00	3.50	6.40	HRB 70 Max	4.1	5.3	2.25	300-Series stainless steel	Passivated and/or tested
SBSS-M3.5-10-P	Metric	M3.5 x 0.6	10	1.00	3.50	6.40	HRB 70 Max	4.1	5.3	2.25	300-Series stainless steel	Passivated and/or tested
SBSS-M3.5-12-P	Metric	M3.5 x 0.6	12	1.00	3.50	6.40	HRB 70 Max	4.1	5.3	2.25	300-Series stainless steel	Passivated and/or tested
SBSS-M3.5-15-P	Metric	M3.5 x 0.6	15	1.00	3.50	6.40	HRB 70 Max	4.1	5.3	2.25	300-Series stainless steel	Passivated and/or tested
SBSS-M3.5-18-P	Metric	M3.5 x 0.6	18	1.00	3.50	6.40	HRB 70 Max	4.1	5.3	2.25	300-Series stainless steel	Passivated and/or tested
SBSS-M3.5-20-P	Metric	M3.5 x 0.6	20	1.00	3.50	6.40	HRB 70 Max	4.1	5.3	2.25	300-Series stainless steel	Passivated and/or tested
SBSS-M3.5-25-P	Metric	M3.5 x 0.6	25	1.00	3.50	6.40	HRB 70 Max	4.1	5.3	2.25	300-Series stainless steel	Passivated and/or tested
SBSS-M3.5-30-P	Metric	M3.5 x 0.6	30	1.00	3.50	6.40	HRB 70 Max	4.1	5.3	2.25	300-Series stainless steel	Passivated and/or tested
SBAL-M3.5-6-PLN	Metric	M3.5 x 0.6	6	1.00	3.50	6.40	HRB 50 Max	4.1	5.3	2.25	Aluminum	Clean and dry
SBAL-M3.5-8-PLN	Metric	M3.5 x 0.6	8	1.00	3.50	6.40	HRB 50 Max	4.1	5.3	2.25	Aluminum	Clean and dry
SBAL-M3.5-10-PLN	Metric	M3.5 x 0.6	10	1.00	3.50	6.40	HRB 50 Max	4.1	5.3	2.25	Aluminum	Clean and dry
SBAL-M3.5-12-PLN	Metric	M3.5 x 0.6	12	1.00	3.50	6.40	HRB 50 Max	4.1	5.3	2.25	Aluminum	Clean and dry
SBAL-M3.5-15-PLN	Metric	M3.5 x 0.6	15	1.00	3.50	6.40	HRB 50 Max	4.1	5.3	2.25	Aluminum	Clean and dry
SBAL-M3.5-18-PLN	Metric	M3.5 x 0.6	18	1.00	3.50	6.40	HRB 50 Max	4.1	5.3	2.25	Aluminum	Clean and dry
SBAL-M3.5-20-PLN	Metric	M3.5 x 0.6	20	1.00	3.50	6.40	HRB 50 Max	4.1	5.3	2.25	Aluminum	Clean and dry
SBAL-M3.5-25-PLN	Metric	M3.5 x 0.6	25	1.00	3.50	6.40	HRB 50 Max	4.1	5.3	2.25	Aluminum	Clean and dry
SBAL-M3.5-30-PLN	Metric	M3.5 x 0.6	30	1.00	3.50	6.40	HRB 50 Max	4.1	5.3	2.25	Aluminum	Clean and dry
SBS4-M4-6-P	Metric	M4 x 0.7	6	1.00	4.00	7.20	HRB 92 Max	4.7	5.9	2.40	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M4-8-P	Metric	M4 x 0.7	8	1.00	4.00	7.20	HRB 92 Max	4.7	5.9	2.40	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M4-10-P	Metric	M4 x 0.7	10	1.00	4.00	7.20	HRB 92 Max	4.7	5.9	2.40	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M4-12-P	Metric	M4 x 0.7	12	1.00	4.00	7.20	HRB 92 Max	4.7	5.9	2.40	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M4-15-P	Metric	M4 x 0.7	15	1.00	4.00	7.20	HRB 92 Max	4.7	5.9	2.40	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M4-18-P	Metric	M4 x 0.7	18	1.00	4.00	7.20	HRB 92 Max	4.7	5.9	2.40	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M4-20-P	Metric	M4 x 0.7	20	1.00	4.00	7.20	HRB 92 Max	4.7	5.9	2.40	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M4-25-P	Metric	M4 x 0.7	25	1.00	4.00	7.20	HRB 92 Max	4.7	5.9	2.40	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M4-30-P	Metric	M4 x 0.7	30	1.00	4.00	7.20	HRB 92 Max	4.7	5.9	2.40	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M4-35-P	Metric	M4 x 0.7	35	1.00	4.00	7.20	HRB 92 Max	4.7	5.9	2.40	400-Series heat treated stainless steel	Passivated and/or tested
SBST-M4-6-Z	Metric	M4 x 0.7	6	1.00	4.00	7.20	HRB 80 Max	4.6	5.9	2.40	Heat treated carbon steel	Zinc with clear chromate
SBST-M4-8-Z	Metric	M4 x 0.7	8	1.00	4.00	7.20	HRB 80 Max	4.6	5.9	2.40	Heat treated carbon steel	Zinc with clear chromate
SBST-M4-10-Z	Metric	M4 x 0.7	10	1.00	4.00	7.20	HRB 80 Max	4.6	5.9	2.40	Heat treated carbon steel	Zinc with clear chromate
SBST-M4-12-Z	Metric	M4 x 0.7	12	1.00	4.00	7.20	HRB 80 Max	4.6	5.9	2.40	Heat treated carbon steel	Zinc with clear chromate
SBST-M4-15-Z	Metric	M4 x 0.7	15	1.00	4.00	7.20	HRB 80 Max	4.6	5.9	2.40	Heat treated carbon steel	Zinc with clear chromate
SBST-M4-18-Z	Metric	M4 x 0.7	18	1.00	4.00	7.20	HRB 80 Max	4.6	5.9	2.40	Heat treated carbon steel	Zinc with clear chromate
SBST-M4-20-Z	Metric	M4 x 0.7	20	1.00	4.00	7.20	HRB 80 Max	4.6	5.9	2.40	Heat treated carbon steel	Zinc with clear chromate
SBST-M4-25-Z	Metric	M4 x 0.7	25	1.00	4.00	7.20	HRB 80 Max	4.6	5.9	2.40	Heat treated carbon steel	Zinc with clear chromate
SBST-M4-30-Z	Metric	M4 x 0.7	30	1.00	4.00	7.20	HRB 80 Max	4.6	5.9	2.40	Heat treated carbon steel	Zinc with clear chromate
SBST-M4-35-Z	Metric	M4 x 0.7	35	1.00	4.00	7.20	HRB 80 Max	4.6	5.9	2.40	Heat treated carbon steel	Zinc with clear chromate
SBSS-M4-6-P	Metric	M4 x 0.7	6	1.00	4.00	7.20	HRB 70 Max	4.6	5.9	2.40	300-Series stainless steel	Passivated and/or tested
SBSS-M4-8-P	Metric	M4 x 0.7	8	1.00	4.00	7.20	HRB 70 Max	4.6	5.9	2.40	300-Series stainless steel	Passivated and/or tested
SBSS-M4-10-P	Metric	M4 x 0.7	10	1.00	4.00	7.20	HRB 70 Max	4.6	5.9	2.40	300-Series stainless steel	Passivated and/or tested
SBSS-M4-12-P	Metric	M4 x 0.7	12	1.00	4.00	7.20	HRB 70 Max	4.6	5.9	2.40	300-Series stainless steel	Passivated and/or tested
SBSS-M4-15-P	Metric	M4 x 0.7	15	1.00	4.00	7.20	HRB 70 Max	4.6	5.9	2.40	300-Series stainless steel	Passivated and/or tested
SBSS-M4-18-P	Metric	M4 x 0.7	18	1.00	4.00	7.20	HRB 70 Max	4.6	5.9	2.40	300-Series stainless steel	Passivated and/or tested
SBSS-M4-20-P	Metric	M4 x 0.7	20	1.00	4.00	7.20	HRB 70 Max	4.6	5.9	2.40	300-Series stainless steel	Passivated and/or tested
SBSS-M4-25-P	Metric	M4 x 0.7	25	1.00	4.00	7.20	HRB 70 Max	4.6	5.9	2.40	300-Series stainless steel	Passivated and/or tested
SBSS-M4-30-P	Metric	M4 x 0.7	30	1.00	4.00	7.20	HRB 70 Max	4.6	5.9	2.40	300-Series stainless steel	Passivated and/or tested
SBSS-M4-35-P	Metric	M4 x 0.7	35	1.00	4.00	7.20	HRB 70 Max	4.6	5.9	2.40	300-Series stainless steel	Passivated and/or tested
SBAL-M4-6-PLN	Metric	M4 x 0.7	6	1.00	4.00	7.20	HRB 50 Max	4.6	5.9	2.40	Aluminum	Clean and dry
SBAL-M4-8-PLN	Metric	M4 x 0.7	8	1.00	4.00	7.20	HRB 50 Max	4.6	5.9	2.40	Aluminum	Clean and dry
SBAL-M4-10-PLN	Metric	M4 x 0.7	10	1.00	4.00	7.20	HRB 50 Max	4.6	5.9	2.40	Aluminum	Clean and dry
SBAL-M4-12-PLN	Metric	M4 x 0.7	12	1.00	4.00	7.20	HRB 50 Max	4.6	5.9	2.40	Aluminum	Clean and dry
SBAL-M4-15-PLN	Metric	M4 x 0.7	15	1.00	4.00	7.20	HRB 50 Max	4.6	5.9	2.40	Aluminum	Clean and dry
SBAL-M4-18-PLN	Metric	M4 x 0.7	18	1.00	4.00	7.20	HRB 50 Max	4.6	5.9	2.40	Aluminum	Clean and dry
SBAL-M4-20-PLN	Metric	M4 x 0.7	20	1.00	4.00	7.20	HRB 50 Max	4.6	5.9	2.40	Aluminum	Clean and dry
SBAL-M4-25-PLN	Metric	M4 x 0.7	25	1.00	4.00	7.20	HRB 50 Max	4.6	5.9	2.40	Aluminum	Clean and dry
SBAL-M4-30-PLN	Metric	M4 x 0.7	30	1.00	4.00	7.20	HRB 50 Max	4.6	5.9	2.40	Aluminum	Clean and dry
SBAL-M4-35-PLN	Metric	M4 x 0.7	35	1.00	4.00	7.20	HRB 50 Max	4.6	5.9	2.40	Aluminum	Clean and dry
SBS4-M5-8-P	Metric	M5 x 0.8	8	1.00	5.00	7.20	HRB 92 Max	5.3	6.5	2.70	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M5-10-P	Metric	M5 x 0.8	10	1.00	5.00	7.20	HRB 92 Max	5.3	6.5	2.70	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M5-12-P	Metric	M5 x 0.8	12	1.00	5.00	7.20	HRB 92 Max	5.3	6.5	2.70	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M5-15-P	Metric	M5 x 0.8	15	1.00	5.00	7.20	HRB 92 Max	5.3	6.5	2.70	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M5-18-P	Metric	M5 x 0.8	18	1.00	5.00	7.20	HRB 92 Max	5.3	6.5	2.70	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M5-20-P	Metric	M5 x 0.8	20	1.00	5.00	7.20	HRB 92 Max	5.3	6.5	2.70	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M5-25-P	Metric	M5 x 0.8	25	1.00	5.00	7.20	HRB 92 Max	5.3	6.5	2.70	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M5-30-P	Metric	M5 x 0.8	30	1.00	5.00	7.20	HRB 92 Max	5.3	6.5	2.70	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M5-35-P	Metric	M5 x 0.8	35	1.00	5.00	7.20	HRB 92 Max	5.3	6.5	2.70	400-Series heat treated stainless steel	Passivated and/or tested
SBST-M5-8-Z	Metric	M5 x 0.8	8	1.00	5.00	7.20	HRB 80 Max	5.6	6.5	2.70	Heat treated carbon steel	Zinc with clear chromate
SBST-M5-10-Z	Metric	M5 x 0.8	10	1.00	5.00	7.20	HRB 80 Max	5.6	6.5	2.70	Heat treated carbon steel	Zinc with clear chromate
SBST-M5-12-Z	Metric	M5 x 0.8	12	1.00	5.00	7.20	HRB 80 Max	5.6	6.5	2.70	Heat treated carbon steel	Zinc with clear chromate
SBST-M5-15-Z	Metric	M5 x 0.8	15	1.00	5.00	7.20	HRB 80 Max	5.6	6.5	2.70	Heat treated carbon steel	Zinc with clear chromate
SBST-M5-18-Z	Metric	M5 x 0.8	18	1.00	5.00	7.20	HRB 80 Max	5.6	6.5	2.70	Heat treated carbon steel	Zinc with clear chromate
SBST-M5-20-Z	Metric	M5 x 0.8	20	1.00	5.00	7.20	HRB 80 Max	5.6	6.5	2.70	Heat treated carbon steel	Zinc with clear chromate
SBST-M5-25-Z	Metric	M5 x 0.8	25	1.00	5.00	7.20	HRB 80 Max	5.6	6.5	2.70	Heat treated carbon steel	Zinc with clear chromate
SBST-M5-30-Z	Metric	M5 x 0.8	30	1.00	5.00	7.20	HRB 80 Max	5.6	6.5	2.70	Heat treated carbon steel	Zinc with clear chromate
SBST-M5-35-Z	Metric	M5 x 0.8	35	1.00	5.00	7.20	HRB 80 Max	5.6	6.5	2.70	Heat treated carbon steel	Zinc with clear chromate
SBSS-M5-8-P	Metric	M5 x 0.8	8	1.00	5.00	7.20	HRB 70 Max	5.6	6.5	2.70	300-Series stainless steel	Passivated and/or tested
SBSS-M5-10-P	Metric	M5 x 0.8	10	1.00	5.00	7.20	HRB 70 Max	5.6	6.5	2.70	300-Series stainless steel	Passivated and/or tested
SBSS-M5-12-P	Metric	M5 x 0.8	12	1.00	5.00	7.20	HRB 70 Max	5.6	6.5	2.70	300-Series stainless steel	Passivated and/or tested
SBSS-M5-15-P	Metric	M5 x 0.8	15	1.00	5.00	7.20	HRB 70 Max	5.6	6.5	2.70	300-Series stainless steel	Passivated and/or tested
SBSS-M5-18-P	Metric	M5 x 0.8	18	1.00	5.00	7.20	HRB 70 Max	5.6	6.5	2.70	300-Series stainless steel	Passivated and/or tested
SBSS-M5-20-P	Metric	M5 x 0.8	20	1.00	5.00	7.20	HRB 70 Max	5.6	6.5	2.70	300-Series stainless steel	Passivated and/or tested
SBSS-M5-25-P	Metric	M5 x 0.8	25	1.00	5.00	7.20	HRB 70 Max	5.6	6.5	2.70	300-Series stainless steel	Passivated and/or tested
SBSS-M5-30-P	Metric	M5 x 0.8	30	1.00	5.00	7.20	HRB 70 Max	5.6	6.5	2.70	300-Series stainless steel	Passivated and/or tested
SBSS-M5-35-P	Metric	M5 x 0.8	35	1.00	5.00	7.20	HRB 70 Max	5.6	6.5	2.70	300-Series stainless steel	Passivated and/or tested
SBAL-M5-8-PLN	Metric	M5 x 0.8	8	1.00	5.00	7.20	HRB 50 Max	5.6	6.5	2.70	Aluminum	Clean and dry
SBAL-M5-10-PLN	Metric	M5 x 0.8	10	1.00	5.00	7.20	HRB 50 Max	5.6	6.5	2.70	Aluminum	Clean and dry
SBAL-M5-12-PLN	Metric	M5 x 0.8	12	1.00	5.00	7.20	HRB 50 Max	5.6	6.5	2.70	Aluminum	Clean and dry
SBAL-M5-15-PLN	Metric	M5 x 0.8	15	1.00	5.00	7.20	HRB 50 Max	5.6	6.5	2.70	Aluminum	Clean and dry
SBAL-M5-18-PLN	Metric	M5 x 0.8	18	1.00	5.00	7.20	HRB 50 Max	5.6	6.5	2.70	Aluminum	Clean and dry
SBAL-M5-20-PLN	Metric	M5 x 0.8	20	1.00	5.00	7.20	HRB 50 Max	5.6	6.5	2.70	Aluminum	Clean and dry
SBAL-M5-25-PLN	Metric	M5 x 0.8	25	1.00	5.00	7.20	HRB 50 Max	5.6	6.5	2.70	Aluminum	Clean and dry
SBAL-M5-30-PLN	Metric	M5 x 0.8	30	1.00	5.00	7.20	HRB 50 Max	5.6	6.5	2.70	Aluminum	Clean and dry
SBAL-M5-35-PLN	Metric	M5 x 0.8	35	1.00	5.00	7.20	HRB 50 Max	5.6	6.5	2.70	Aluminum	Clean and dry
SBS4-M6-10-P	Metric	M6 x 1.0	10	1.60	6.00	7.90	HRB 92 Max	6.8	8.2	3.00	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M6-12-P	Metric	M6 x 1.0	12	1.60	6.00	7.90	HRB 92 Max	6.8	8.2	3.00	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M6-15-P	Metric	M6 x 1.0	15	1.60	6.00	7.90	HRB 92 Max	6.8	8.2	3.00	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M6-18-P	Metric	M6 x 1.0	18	1.60	6.00	7.90	HRB 92 Max	6.8	8.2	3.00	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M6-20-P	Metric	M6 x 1.0	20	1.60	6.00	7.90	HRB 92 Max	6.8	8.2	3.00	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M6-25-P	Metric	M6 x 1.0	25	1.60	6.00	7.90	HRB 92 Max	6.8	8.2	3.00	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M6-30-P	Metric	M6 x 1.0	30	1.60	6.00	7.90	HRB 92 Max	6.8	8.2	3.00	400-Series heat treated stainless steel	Passivated and/or tested
SBS4-M6-35-P	Metric	M6 x 1.0	35	1.60	6.00	7.90	HRB 92 Max	6.8	8.2	3.00	400-Series heat treated stainless steel	Passivated and/or tested
SBST-M6-10-Z	Metric	M6 x 1.0	10	1.60	6.00	7.90	HRB 80 Max	6.6	8.2	3.00	Heat treated carbon steel	Zinc with clear chromate
SBST-M6-12-Z	Metric	M6 x 1.0	12	1.60	6.00	7.90	HRB 80 Max	6.6	8.2	3.00	Heat treated carbon steel	Zinc with clear chromate
SBST-M6-15-Z	Metric	M6 x 1.0	15	1.60	6.00	7.90	HRB 80 Max	6.6	8.2	3.00	Heat treated carbon steel	Zinc with clear chromate
SBST-M6-18-Z	Metric	M6 x 1.0	18	1.60	6.00	7.90	HRB 80 Max	6.6	8.2	3.00	Heat treated carbon steel	Zinc with clear chromate
SBST-M6-20-Z	Metric	M6 x 1.0	20	1.60	6.00	7.90	HRB 80 Max	6.6	8.2	3.00	Heat treated carbon steel	Zinc with clear chromate
SBST-M6-25-Z	Metric	M6 x 1.0	25	1.60	6.00	7.90	HRB 80 Max	6.6	8.2	3.00	Heat treated carbon steel	Zinc with clear chromate
SBST-M6-30-Z	Metric	M6 x 1.0	30	1.60	6.00	7.90	HRB 80 Max	6.6	8.2	3.00	Heat treated carbon steel	Zinc with clear chromate
SBST-M6-35-Z	Metric	M6 x 1.0	35	1.60	6.00	7.90	HRB 80 Max	6.6	8.2	3.00	Heat treated carbon steel	Zinc with clear chromate
SBSS-M6-10-P	Metric	M6 x 1.0	10	1.60	6.00	7.90	HRB 70 Max	6.6	8.2	3.00	300-Series stainless steel	Passivated and/or tested
SBSS-M6-12-P	Metric	M6 x 1.0	12	1.60	6.00	7.90	HRB 70 Max	6.6	8.2	3.00	300-Series stainless steel	Passivated and/or tested
SBSS-M6-15-P	Metric	M6 x 1.0	15	1.60	6.00	7.90	HRB 70 Max	6.6	8.2	3.00	300-Series stainless steel	Passivated and/or tested
SBSS-M6-18-P	Metric	M6 x 1.0	18	1.60	6.00	7.90	HRB 70 Max	6.6	8.2	3.00	300-Series stainless steel	Passivated and/or tested
SBSS-M6-20-P	Metric	M6 x 1.0	20	1.60	6.00	7.90	HRB 70 Max	6.6	8.2	3.00	300-Series stainless steel	Passivated and/or tested
SBSS-M6-25-P	Metric	M6 x 1.0	25	1.60	6.00	7.90	HRB 70 Max	6.6	8.2	3.00	300-Series stainless steel	Passivated and/or tested
SBSS-M6-30-P	Metric	M6 x 1.0	30	1.60	6.00	7.90	HRB 70 Max	6.6	8.2	3.00	300-Series stainless steel	Passivated and/or tested
SBSS-M6-35-P	Metric	M6 x 1.0	35	1.60	6.00	7.90	HRB 70 Max	6.6	8.2	3.00	300-Series stainless steel	Passivated and/or tested
SBAL-M6-10-PLN	Metric	M6 x 1.0	10	1.60	6.00	7.90	HRB 50 Max	6.6	8.2	3.00	Aluminum	Clean and dry
SBAL-M6-12-PLN	Metric	M6 x 1.0	12	1.60	6.00	7.90	HRB 50 Max	6.6	8.2	3.00	Aluminum	Clean and dry
SBAL-M6-15-PLN	Metric	M6 x 1.0	15	1.60	6.00	7.90	HRB 50 Max	6.6	8.2	3.00	Aluminum	Clean and dry
SBAL-M6-18-PLN	Metric	M6 x 1.0	18	1.60	6.00	7.90	HRB 50 Max	6.6	8.2	3.00	Aluminum	Clean and dry
SBAL-M6-20-PLN	Metric	M6 x 1.0	20	1.60	6.00	7.90	HRB 50 Max	6.6	8.2	3.00	Aluminum	Clean and dry
SBAL-M6-25-PLN	Metric	M6 x 1.0	25	1.60	6.00	7.90	HRB 50 Max	6.6	8.2	3.00	Aluminum	Clean and dry
SBAL-M6-30-PLN	Metric	M6 x 1.0	30	1.60	6.00	7.90	HRB 50 Max	6.6	8.2	3.00	Aluminum	Clean and dry
SBAL-M6-35-PLN	Metric	M6 x 1.0	35	1.60	6.00	7.90	HRB 50 Max	6.6	8.2	3.00	Aluminum	Clean and dry
SBST-M8-12-Z	Metric	M8 x 1.25	12	2.40	8.00	9.60	HRB 80 Max	8.6	9.6	3.70	Heat treated carbon steel	Zinc with clear chromate
SBST-M8-15-Z	Metric	M8 x 1.25	15	2.40	8.00	9.60	HRB 80 Max	8.6	9.6	3.70	Heat treated carbon steel	Zinc with clear chromate
SBST-M8-18-Z	Metric	M8 x 1.25	18	2.40	8.00	9.60	HRB 80 Max	8.6	9.6	3.70	Heat treated carbon steel	Zinc with clear chromate
SBST-M8-20-Z	Metric	M8 x 1.25	20	2.40	8.00	9.60	HRB 80 Max	8.6	9.6	3.70	Heat treated carbon steel	Zinc with clear chromate
SBST-M8-25-Z	Metric	M8 x 1.25	25	2.40	8.00	9.60	HRB 80 Max	8.6	9.6	3.70	Heat treated carbon steel	Zinc with clear chromate
SBST-M8-30-Z	Metric	M8 x 1.25	30	2.40	8.00	9.60	HRB 80 Max	8.6	9.6	3.70	Heat treated carbon steel	Zinc with clear chromate
SBST-M8-35-Z	Metric	M8 x 1.25	35	2.40	8.00	9.60	HRB 80 Max	8.6	9.6	3.70	Heat treated carbon steel	Zinc with clear chromate
SBSS-M8-12-P	Metric	M8 x 1.25	12	2.40	8.00	9.60	HRB 70 Max	8.6	9.6	3.70	300-Series stainless steel	Passivated and/or tested
SBSS-M8-15-P	Metric	M8 x 1.25	15	2.40	8.00	9.60	HRB 70 Max	8.6	9.6	3.70	300-Series stainless steel	Passivated and/or tested
SBSS-M8-18-P	Metric	M8 x 1.25	18	2.40	8.00	9.60	HRB 70 Max	8.6	9.6	3.70	300-Series stainless steel	Passivated and/or tested
SBSS-M8-20-P	Metric	M8 x 1.25	20	2.40	8.00	9.60	HRB 70 Max	8.6	9.6	3.70	300-Series stainless steel	Passivated and/or tested
SBSS-M8-25-P	Metric	M8 x 1.25	25	2.40	8.00	9.60	HRB 70 Max	8.6	9.6	3.70	300-Series stainless steel	Passivated and/or tested
SBSS-M8-30-P	Metric	M8 x 1.25	30	2.40	8.00	9.60	HRB 70 Max	8.6	9.6	3.70	300-Series stainless steel	Passivated and/or tested
SBSS-M8-35-P	Metric	M8 x 1.25	35	2.40	8.00	9.60	HRB 70 Max	8.6	9.6	3.70	300-Series stainless steel	Passivated and/or tested

SB Flush Head Self-clinching Studs

Contact Us

Personal & Contact Info

Address

Attachments & Comments
